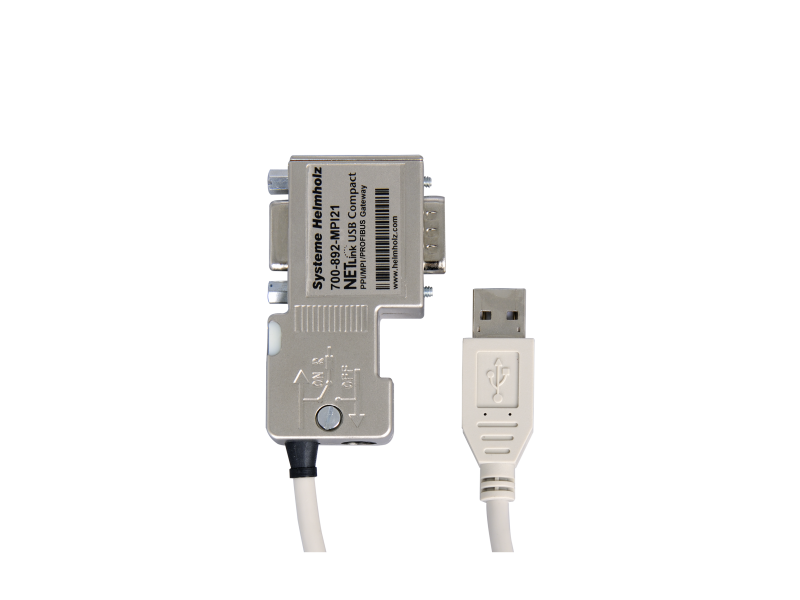

Helmholz NETLink® USB Compact
The PG socket integrated in the housing allows connection of additional devices. The connection to the PC is established with the 3 m high-speed USB cable. The NETL...
Cena bez pdv-a: 54.315,03 |
Cena sa pdv-om: 65.178,04 |
The PG socket integrated in the housing allows connection of additional devices. The connection to the PC is established with the 3 m high-speed USB cable.
The NETL ink® USB Compact is supplied with voltage by the USB bus; on the USB side, the full-speed (12 Mbps) and high-speed (480 Mbps) protocols are supported.
The NETL ink® USB Compact enables the implementation of a USB interface to the MPI/PROFIBUS for programming or visualization, with the full transmission rate of up to 12 Mbps and a maximum of 32 simultaneously opened connection channels.
The transmission rate is detected automatically, and passive bus participants can also be addressed in single-master operation.
The supplied driver automatically integrates with the S7 Engineering Tools.
In addition, the MPI/PPI/PROFIBUS is electrically isolated from the USB interface (function separation).
SHTools is included as configuration and diagnostics software.
This means that a firmware update can be performed automatically at any time for function extensions. The latest version is available for download at no charge.
- Support for all common S7 engineering tools
- Up to 32 MPI/PROFIBUS connections
- Support for slave configuration
- Electrical isolation for MPI/PPI/PROFIBUS
- MPI/PPI/PROFIBUS from 9.6 kbps to 12 Mbps
- USB 2.0 with speeds of up to 480 Mbps (high-speed)
- Does not require a separate power supply
- Comes with PG socket as standard
- For S7-200*, S7-300*, S7-400*
General information | ||
---|---|---|
Order number | 700-892-MPI21 | |
Article name | NETL ink® USB Compact | |
Scope of delivery | NETL ink® USB Compact , Quick Start Guide, CD with software, and manual | |
Dimensions (DxWxH) | 64 x 40 x 17 mm | |
Weight | Approx. 115 g | |
Communication interface | ||
Number | 1 | |
Type | USB 2.0 | |
Transmission rate | 12 Mbps full-speed/480 Mbps high-speed | |
Protocol | FDL, tunneled | |
Connection | USB A socket | |
MPI/PPI/PROFIBUS interface | ||
Number | 1 | |
Type | RS485, isolated | |
Transmission rate | max. 12 Mbps autom. detection | |
Connection | SUB-D male connector, 9-pin. with PG interface | |
Status indicator | 2 LEDs, including a three-color LED for general status information | |
Voltage supply | DC 5 V USB | |
Current draw | Typ. 200 mA with DC 5 V USB | |
Ambient conditions | ||
Ambient temperature | 0 °C ... +60°C | |
Transport and storage temperature | -20 °C … +80 °C | |
Relative air humidity | 95 % r H without condensation | |
Pollution degree | 2 | |
Protection rating | IP20 | |
Certifications | CE | |
CE | ||
RoHS | Yes | |
REACH | Yes |
