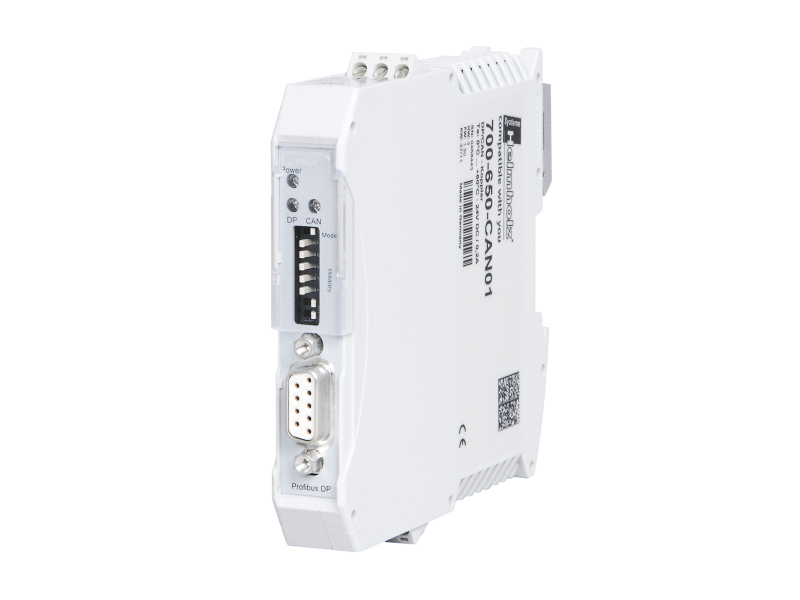

Helmholz DP/CAN coupler CANopen Layer 2, incl. CD with software, manual
On the PROFIBUS-DP, the DP/CAN coupler is a normal participant. The I/O data of the CANopen® participants is shown in the PROFIBUS in a transparent and freely...
Cena bez pdv-a: 74.065,95 |
Cena sa pdv-om: 88.879,14 |

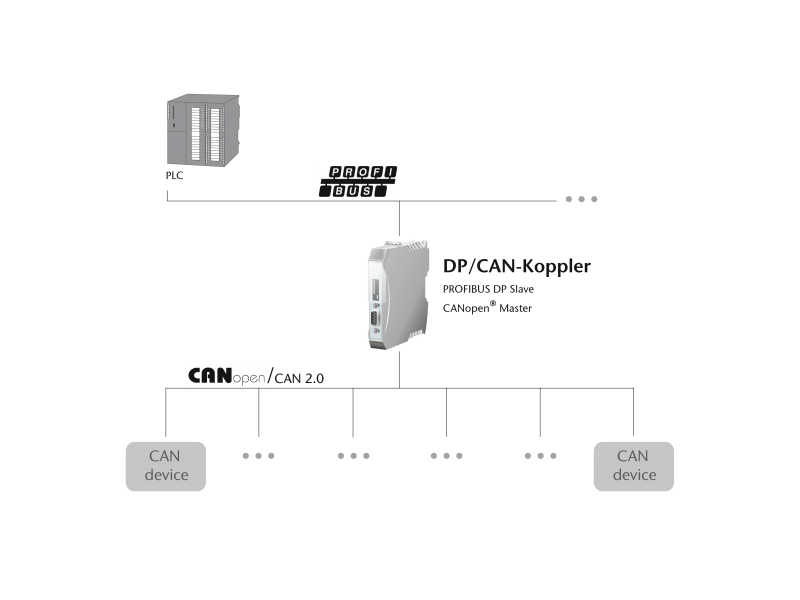

On the PROFIBUS-DP, the DP/CAN coupler is a normal participant.
The I/O data of the CANopen® participants is shown in the PROFIBUS in a transparent and freely configurable manner.
The DP/CAN coupler is integrated in the hardware configurator with a GSD file and can be completely configured there. Additional tools are not necessary.
On PROFIBUS, all standard transfer rates up to 12 Mbps are supported; on the CAN bus up to 1 Mbps.
The PROFIBUS address is set using a DIP switch.
Parameterization of the CANopen participants using SDO frames and administration of emergency messages is also possible.
Alternatively, the DP/CAN coupler can also be used as a CAN Layer 2 device on the CAN bus. This makes it possible to also integrate customer-specific CAN protocols via PROFIBUS.
- Up to 1 Mbps CAN transfer rate
- Up to 12 Mbps PROFIBUS-DP
- Address setting using DIP switches
- Easy configuration via GSD file
- No handling blocks or parameterization software necessary
- 3 status LEDs
- Extended ambient temperature
- USB port for firmware updates
- Up to 15 CANopen participants
- CANopen master and CAN Layer 2 possible
| General information | ||
|---|---|---|
| Order number | 700-650-CAN01 | |
| Article name | DP/CAN coupler CANopen® Layer 2 | |
| Scope of delivery | DP/CAN coupler, manual, CD with software | |
| Dimensions (DxWxH) | 114 x 18 x 108 mm | |
| Weight | Approx. 110 g | |
| PROFIBUS interface | ||
| Number | 2 | |
| Protocol | max. 12 Mbps, autom. detection | |
| Transmission rate | PROFIBUS-DP | |
| I/O image size | max. 240 bytes of input / 240 bytes of output data | |
| Connection | SUB-D female connector, 9-pin | |
| CAN interface | ||
| Number | 1 | |
| Type | ISO/DIN 11898-2 CAN High-speed physical layer | |
| Transmission rate | 10 kbps ... 1 Mbps | |
| Protocol | CANopen® master CAN 2.0A (11 bit) | |
| Connection | Terminal 3-pin | |
| TPDOs | 4 | |
| RPDOs | 4 | |
| Features | Sync timer | |
| Status indicator | 3 LEDs | |
| Voltage supply | 24 V DC, 18–30 V DC | |
| Current draw | typ. 180 mA with DC 24 V | |
| Ambient conditions | ||
| Ambient temperature | -25 °C ... +70°C | |
| Transport and storage temperature | -40 °C … +75 °C | |
| Relative air humidity | 95 % r H without condensation | |
| Pollution degree | 2 | |
| Protection rating | IP20 | |
| Certifications | CE | |
| CE | ||
| RoHS | Yes | |
| REACH | Yes | |
