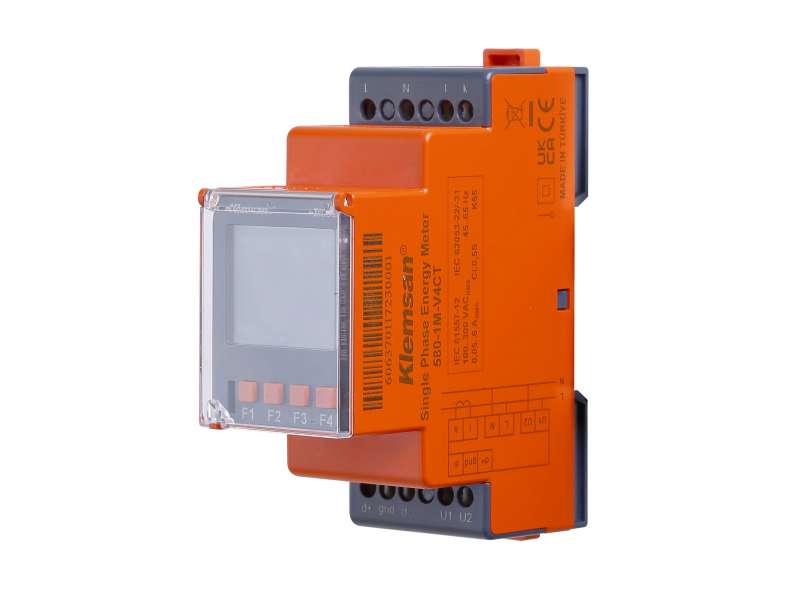

Klemsan 1Ø MID Energy Meter 580-1M-V4CT, 1P2W, need CT; 606370
Klemsan 1Ø MID Energy Meter 580-1M-V4CT, 1P2W, need CT; 606370...
VAT-exclusive price: 10.905,33 |
VAT-inclusive price: 13.086,40 |
Klemsan 1Ø MID Energy Meter 580-1M-V4CT, 1P2W, need CT; 606370
GENERAL
Connection Type
1P2W
Real Time Clock
✅
Current Connection Type
CT Baglantili
Alarm
✅
ENERGY MEASUREMENT
Energy Measurement Type
Import & Export kWh-kVArh
Number of Tariffs
2
Number of Sub Tariffs
4
Number of Reactive Measurement Zones
2
CURRENT MEASUREMENT INPUT
Measuring Range
0,05 .. 6A
VOLTAGE MEASUREMENT INPUT
Measuring Range L-N
100-300V AC
Measuring Range L-L
❌
POWER QUALITY MEASUREMENTS
Harmonic Measurement / Current and Voltage
31
THDI
✅
THDV
✅
POWER SUPPLY
Voltage
100-300V AC
Frequency
45-65Hz
Consumption
<3VA AC
MECHANICAL PROPERTIES
Weight (g)
120
Protection Class
IP20
Mounting Type
Rail Mount
ENVIRONMENTAL CONDITIONS
Operating Temperature
-25°C +50°C
Storage Temperature
-25°C +70°C
Relative Humidity (Non-condensing)
Max. 80% (no condensation)
COMMUNICATION
Protocol
Modbus RTU
Baud Rate
1200-115200
Parity
Odd, Even, None
Stop Bit
1
Slave ID
1-247
Isolation
2750V RMS
DIGITAL OUTPUT
DIGITAL INPUT
OTHER MEASUREMENTS
BASIC ELECTRICAL MEASUREMENTS
Current
✅
Voltage
✅
Frequency
✅
Active Power
✅
Reactive Power
✅
Apparent Power
✅
CABLE CROSS-SECTIONS POWER SUPPLY, VOLTAGE, RELAY
CABLE CROSS-SECTIONS CURRENT
CABLE CROSS-SECTIONS DIGITAL INPUT/OUTPUT, RS485, ANALOG OUTPUT
MEASUREMENT CLASS
62053-21
Class 0.5
MEASUREMENT
Max, Min Data
✅
Demand
✅
LED (Impulse)
-
580-1M-V4CT
-
EMD2 EN 27032024
