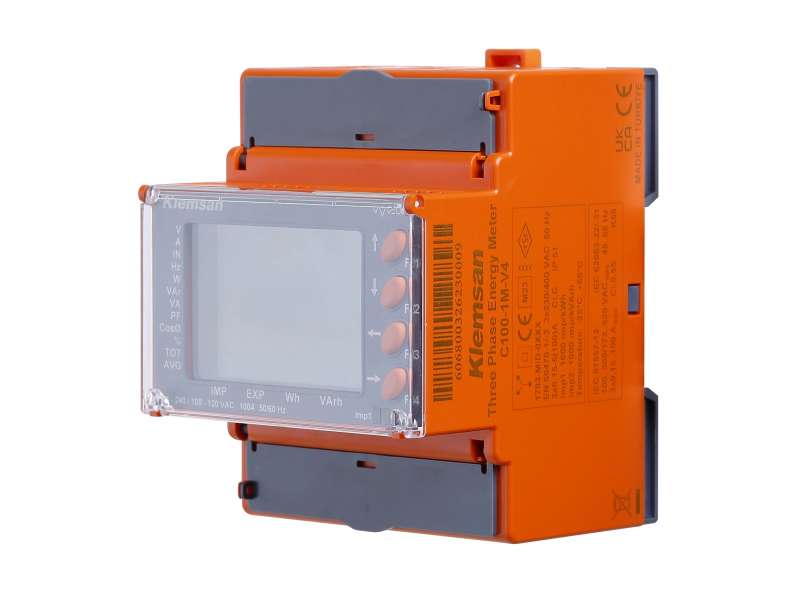

Klemsan 3Ø MID Energy Meter B100-1Q-V2, 3P4W, 100A direct; 606815
Klemsan 3Ø MID Energy Meter B100-1Q-V2, 3P4W, 100A direct; 606815...
VAT-exclusive price: 14.361,74 |
VAT-inclusive price: 17.234,09 |
Klemsan 3Ø MID Energy Meter B100-1Q-V2, 3P4W, 100A direct; 606815
GENERAL
Connection Type
3P4W
Current Connection Type
Direkt Baglantili (100A ya kadar)
ENERGY MEASUREMENT
Energy Measurement Type
Import & Export kWh-kVArh
Balance Energy
✅
Number of Tariffs
1
Number of Reactive Measurement Zones
4
CURRENT MEASUREMENT INPUT
Measuring Range
3x 0,15 .. 100A
VOLTAGE MEASUREMENT INPUT
Measuring Range L-N
100-300V AC
Measuring Range L-L
173-520
POWER QUALITY MEASUREMENTS
THDI
✅
THDV
✅
POWER SUPPLY
Voltage
100-300V AC
Frequency
45-65Hz
Consumption
<3VA AC
MECHANICAL PROPERTIES
Weight (g)
340
Protection Class
IP20
Mounting Type
Rail Mount
ENVIRONMENTAL CONDITIONS
Operating Temperature
-25°C +50°C
Storage Temperature
-25°C +70°C
Relative Humidity (Non-condensing)
Max. 80% (no condensation)
COMMUNICATION
Protocol
Modbus RTU
Baud Rate
1200-57600
Parity
Odd, Even, None
Stop Bit
1
Slave ID
1-247
Isolation
2750V RMS
DIGITAL OUTPUT
DIGITAL INPUT
OTHER MEASUREMENTS
BASIC ELECTRICAL MEASUREMENTS
Current
✅
Voltage
✅
Frequency
✅
Active Power
✅
Reactive Power
✅
Apparent Power
✅
CABLE CROSS-SECTIONS POWER SUPPLY, VOLTAGE, RELAY
CABLE CROSS-SECTIONS CURRENT
CABLE CROSS-SECTIONS DIGITAL INPUT/OUTPUT, RS485, ANALOG OUTPUT
MEASUREMENT CLASS
EN 50470
Class B
MEASUREMENT
Demand
✅
LED (Impulse)
kWh
✅
kVArh
✅
-
B100-1Q-V2
-
MED4 EN 12022025
