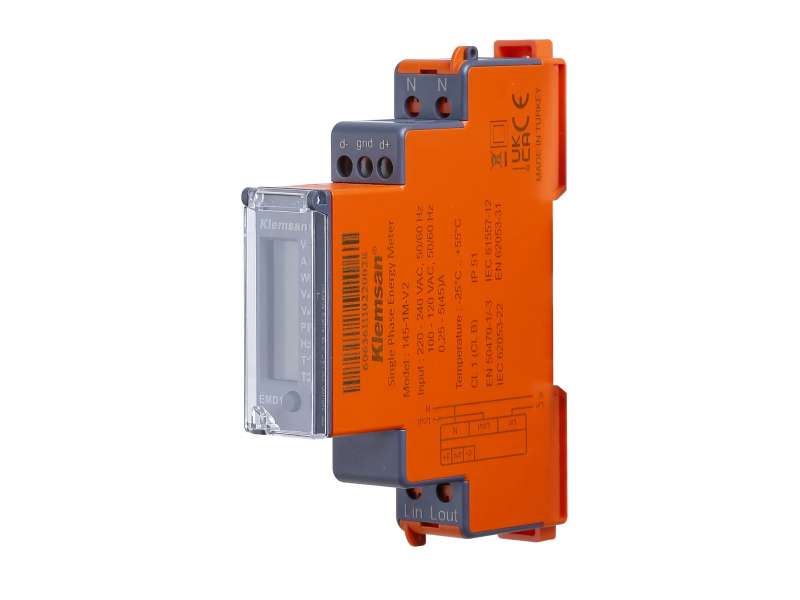

Klemsan 1Ø MID Energy Meter B45-1M-V1, 1P2W, 45A direct; 606358
Klemsan 1Ø MID Energy Meter B45-1M-V1, 1P2W, 45A direct; 606358...
VAT-exclusive price: 8.180,17 |
VAT-inclusive price: 9.816,21 |
Klemsan 1Ø MID Energy Meter B45-1M-V1, 1P2W, 45A direct; 606358
GENERAL
Connection Type
1P2W
Real Time Clock
❌
Current Connection Type
Direkt Baglantili (45A ya kadar)
ENERGY MEASUREMENT
Energy Measurement Type
Import & Export kWh-kVArh
Partial Counter
✅
Number of Tariffs
2
Number of Sub Tariffs
❌
Number of Reactive Measurement Zones
2
CURRENT MEASUREMENT INPUT
Measuring Range
0,25 .. 45A
VOLTAGE MEASUREMENT INPUT
Measuring Range L-N
100-300V AC
Measuring Range L-L
❌
POWER QUALITY MEASUREMENTS
Harmonic Measurement / Current and Voltage
❌
THDI
❌
THDV
❌
POWER SUPPLY
Voltage
100-300V AC
Frequency
45-65Hz
Consumption
<3VA AC
MECHANICAL PROPERTIES
Weight (g)
80
Protection Class
IP20
Mounting Type
Rail Mount
ENVIRONMENTAL CONDITIONS
Operating Temperature
-25°C +50°C
Storage Temperature
-25°C +70°C
Relative Humidity (Non-condensing)
Max. 80% (no condensation)
COMMUNICATION
Protocol
Modbus RTU
Baud Rate
1200-115200
Parity
Odd, Even, None
Stop Bit
1
Slave ID
1-247
Isolation
2750V RMS
DIGITAL OUTPUT
Frequency
5-30 VDC
Number of Inputs
2 (1 sabit, 1 ayarlanabilir)
Switched Voltage Range
Transistor
Isolation
3750 Vrms
DIGITAL INPUT
Isolation
❌
Number of Inputs
❌
Input Type
❌
OTHER MEASUREMENTS
Operating Time Counter
❌
Open Time Counter
❌
Power Failure Counter
❌
BASIC ELECTRICAL MEASUREMENTS
Current
❌
Voltage
✅
Frequency
✅
Active Power
✅
Reactive Power
✅
Apparent Power
✅
CABLE CROSS-SECTIONS POWER SUPPLY, VOLTAGE, RELAY
CABLE CROSS-SECTIONS CURRENT
CABLE CROSS-SECTIONS DIGITAL INPUT/OUTPUT, RS485, ANALOG OUTPUT
MEASUREMENT CLASS
EN 50470
Class B
62053-21
❌
MEASUREMENT
Demand
✅
LED (Impulse)
kWh
✅
kVArh
✅
-
B45-1M-V1
-
MED1 EN 26122022
