EPSON is an industry leader in high-performance robots that offer exceptional flexibility and reliability.
With more than 40 years of innovation and over 200,000 units installed worldwide, EPSON sets global standards in automation. As an official and specialized distributor of EPSON's industrial robotics program, Electro Pneumatic Solutions brings these advanced solutions directly to local production facilities. The development philosophy is guided by a clear principle: modern automation must be simple, smart, and scalable (Simple, Smart, Scalable).
Through the expert support of our engineering team, we design and implement systems that easily integrate, maximize energy and space savings, and enable businesses to achieve rapid growth and unparalleled market competitiveness.
EPSON SCARA ROBOTS
EPSON SCARA
The undisputed champions of speed and repeatability
Modern, high-frequency manufacturing demands maximum agility. Offering over 500 models controlled through a single, unified software platform, EPSON SCARA robots are the global number one choice for fast-paced operations and mixed, low-volume production.
Series Overview and Technical Specifications
GX Series
High power density and premium performance.
Engineered for the fastest and most demanding industrial tasks.
Payload: 4 kg – 8 kg
Reach: 250 mm – 650 mm
Repeatability: Extreme ±0.008 mm to 0.015 mm
Cycle Time: From 0.28 s
Class: ESD protection, ISO Class 3, IP65 protection, paired with RC700D controller
G Series
High rigidity and ultra-low vibration
Maximum stability at high speeds. An exceptional choice for line upgrades and retrofits.
Payload: 1 kg – 20 kg
Reach: 175 mm – 1000 mm
Repeatability: ±0.005 mm to 0.025 mm
Cycle Time: From 0.29 s
Class: ISO Class 3, IP54/IP65 protection, RC700A controller
RS Series
Maximum flexibility – Zero footprint
Unique design that allows the robot to operate directly above its own base, taking up exactly "zero" workspace surface area.
Payload: 3 kg – 4 kg
Reach: 350 mm – 550 mm
Repeatability: Extreme ±0.010 mm to 0.015 mm
Cycle Time: From 0.34 s
Class: ISO Class 3, ESD protection, RC700A controller
LS-B Series
Maximum performance with low investment costs
The best price-to-performance ratio on the market. "E-shop" version also available.
Payload: 3 kg – 20 kg
Reach: 400 mm – 1000 mm
Repeatability: ±0.01 mm to 0.025 mm
Cycle Time: From 0.39 s
Class: ISO Class 4, economical RC90-B controller
T-B Series
"All-in-one" smart alternative
An ideal and affordable solution that successfully replaces complex linear slide systems. Installs in just a few minutes.
Payload: 3 kg – 6 kg
Reach: 400 mm – 600 mm
Repeatability: ±0.02 mm to 0.04 mm
Cycle Time: From 0.46 s
Class: Built-in controller, battery-less design
EPSON 6-AXIS INDUSTRIAL ROBOTS
EPSON 6-AXIS
Maximum freedom of movement and spatial flexibility
EPSON 6-axis robots represent the pinnacle of spatial flexibility. They are designed for complex tasks requiring operations in confined spaces, high speeds, and surgical precision.
Key series and technical characteristics:
C-B Series
„Built-to-fit“– Custom-made
This series is characterized by exceptional compactness, high payload capacity, battery-less operation, and advanced safety features. With over 50 configuration options, they are ideal for complex tasks in confined spaces.
C4-B
Payload: up to 4 kg
Reach: 600 mm
Repeatability: ±0.02 mm
C4L-B
Payload: up to 4 kg
Reach: extended 900 mm
Repeatability: ±0.03 mm
C8L-B
Payload: up to 8 kg
Reach: 900 mm
Repeatability: ±0.03 mm
C8XL-B
Payload: up to 8 kg
Reach: long 1400 mm
Repeatability: ±0.05 mm
C12XL-B
Payload: up to 12 kg
Reach: extra long 900 mm
Repeatability: ±0.03 mm
N Series
Revolutionary motion geometry
Thanks to their unique folding kinematics, these robots can reach any point within their working radius without unnecessary external movements, thereby drastically saving valuable factory space.
N2
Ultra-compact
Features unique folding arm technology that allows operation in exceptionally tight spaces compared to other robots of a similar size.
Payload: 2.5 kg
Reach: 400 mm
Repeatability: ±0.02 mm
N6
World's first folding arm design
Compact, highly mobile, and efficient—ideal for vertical loading and unloading in limited spaces.
Payload: up to 6 kg
Reach: flexible reach from 850 mm – 100 mm
Repeatability: Extreme ±0.03 mm to 0.04 mm
VT6-L Series
"Automation at your fingertips"
The most economically accessible series, ideal for replacing monotonous and repetitive manual tasks.
VT6-L
Compact "all-in-one" solution with a built-in controller.
VT6-L integrated 6-axis robots offer an operating range up to 900 mm, a payload capacity up to 6 kg, a built-in control unit, and intuitive software for simple programming and operation.
Main advantage: Integrated controller inside the robot base itself; DC version also available (direct current power supply).
Payload: up to 6 kg
Reach: 920 mm
Repeatability: ±0.1 mm
Case Study: KnitMesh Technologies (United Kingdom)
By introducing the EPSON VT6-L robot into the production line for knitted wire components for electric vehicle filters, the following results were achieved:
- Unplanned production downtime was reduced by 10 times.
- An immediate 20% increase in overall productivity was recorded.
- Scrap and waste material were virtually eliminated thanks to a stable repeatability of ±0.1 mm, while the full motion cycle time was reduced to under 8 seconds.

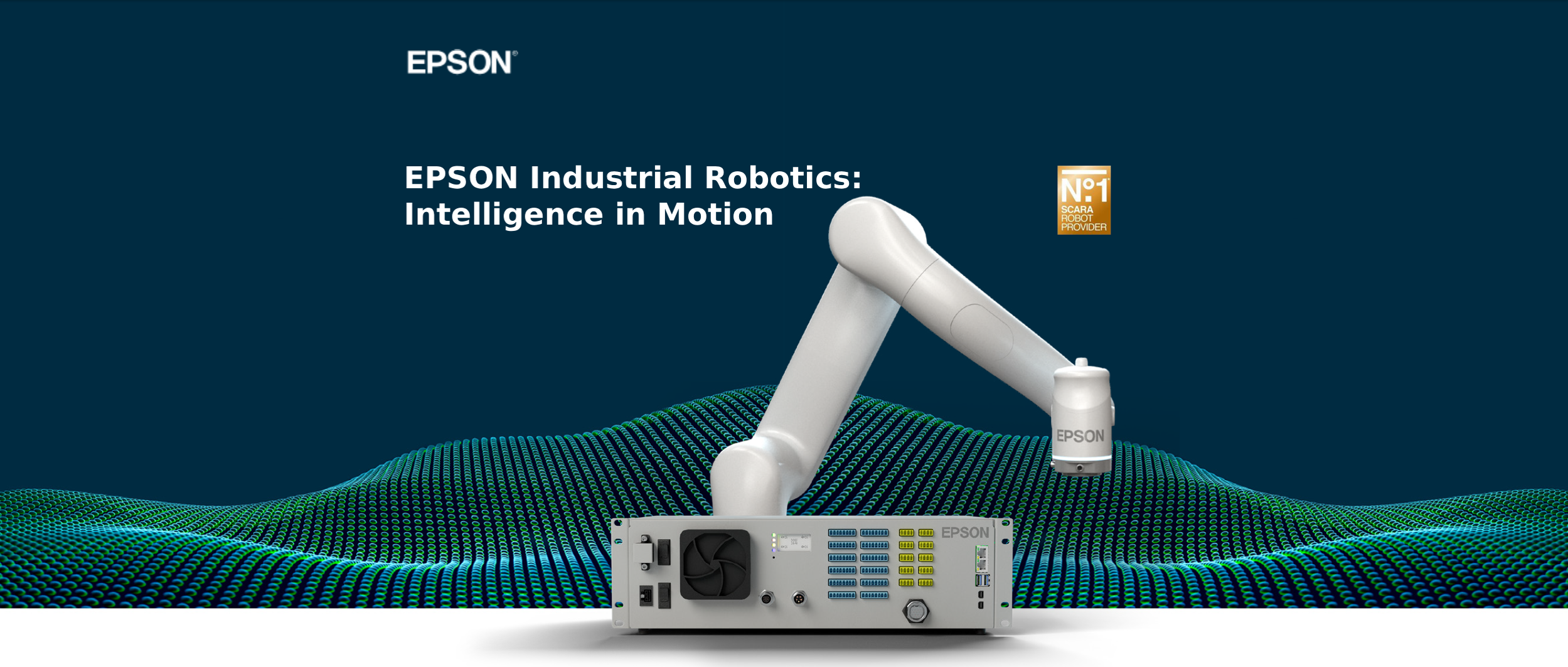

EPSON AX6 – SMART COLLABORATIVE ROBOT (COBOT)
Perfect balance of safety and high industrial performance
The AX6-A901S model redefines the concept of human-machine collaboration.
Built according to the highest safety standards (ISO 10218-1) and machinery directives (PL d / Cat 3),
this cobot enables direct collaborative work with operators without the need for safety fences.
Premium performance:
Payload up to 6 kg, arm reach of 900 mm, and an exceptional repeatability of 0.03 mm.
Carbon fiber construction:
Weighing only 17 kg, the AX6 is the lightest cobot in its class. There are no external screws, and the surface is smooth and easy to clean.
Up to 40% energy savings:
Low mass and optimized motor mechanics drastically reduce power consumption (tested according to the ISO 9283 standard).
Versatile mounting and durability:
It can be mounted on a table, wall, ceiling, or integrated onto mobile platforms (AMR). It comes standard with high IP54 protection and ISO 5 cleanroom certification.
Control and Smart Software (EPSON AX Portal):
The system is powered by the robust and compact EPSON RC-A101 controller (19-inch) featuring an integrated AC/DC power supply and a rich interface (DisplayPort, Ethernet, USB). It supports protocols such as TCP/IP, Modbus, REST, and ROS 2.
Through the intuitive EPSON AX Portal web interface, programming is accessible to everyone:
- Block Programming: Easily arrange commands using visual modules – ideal for users without previous programming experience.
- Python Programming: Opens the door for advanced engineers to create complex applications.
- 3D Simulator: Enables offline programming and full testing of operational phases without risks or stopping live production.
TECHNOLOGICAL ECOSYSTEM: HARDWARE THAT SEES, FEELS, AND CONNECTS
All EPSON robots are engineered to communicate effortlessly with modern factory networks. They support all standard industrial network protocols and fieldbus systems: EtherNet/IP, EtherCAT, PROFINET, PROFIBUS, DeviceNet, and CC-Link.
Additionally, the EPSON ecosystem offers advanced smart options:
- EPSON Vision Systems (Vision Guide): Advanced image processing systems that enable the robot to "see" – recognizing parts, measuring dimensions, performing quality inspections, and tracking objects on a moving conveyor belt in real time (conveyor tracking).
- Force Sensing System: Provides the robot with a delicate sense of touch, which is crucial for assembly operations where precisely controlled pressure or resistance is required.
- Part Feeding System: Smart feeding and separation systems that position components so the robot can easily detect and pick them up.
- Euromap67 Option: Ensures direct and seamless data exchange with plastic injection molding machines.
Wide Range of Industrial Applications
Thanks to their versatility, EPSON robots successfully transform processes across the following industries:
- Automotive Industry: Assembly of braking systems, clutches, dashboards, headlights, as well as engine mounting.
- Electronics: Precision handling of microchips, assembly of extremely sensitive PCB boards (down to just 25 µm thick), diode testing, and final polishing.
- Medical and Pharmaceutical Industry: Manufacturing and packaging of contact lenses, pacemakers, dental instruments, and automation of laboratory processes.
- Consumer Goods: Automation of processes in the production of smartphones, watches, cosmetics, furniture, and luxury jewelry.
Typical operations that EPSON robots perform flawlessly:
Component assembly (Assembly), Picking and placing (Pick & Place), Machine tending, Screw driving, Precise application of liquids and adhesives (Dispensing), Packaging, sorting, and palletizing.
Ensure long-term competitiveness and a fast return on investment through automation.
The company Electro Pneumatic Solutions is one of the most key distributors of EPSON's industrial robotics program.
Electro Pneumatic Solutions provides comprehensive support during process analysis and the selection of the optimal EPSON robot for the specific requirements of your production facility.
