Klemsan PTC Monitoring FK1T-P 24-265; 270297
Klemsan PTC Monitoring FK1T-P 24-265; 270297 PTC input, 1 Form C...
VAT-exclusive price: 4.187,67 |
VAT-inclusive price: 5.025,20 |

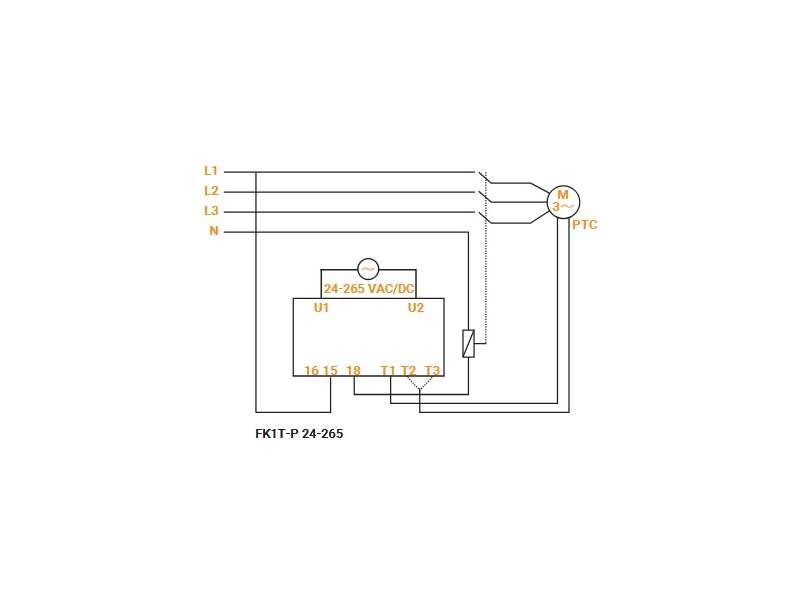

Klemsan PTC Monitoring FK1T-P 24-265; 270297
PTC input, 1 Form C
PTC input, 1 Form C
GENERAL
Connection Type
Screw terminal
Protection Class
IP20
Weight (g)
80
Packaging Quantity
1
Case Width (mm)
18
Mounting Type
Rail Mount
EMC-EMI
ok
POWER SUPPLY
Voltage
24-265 V DC / 24-265 V AC
Frequency
50-60Hz
Consumption
<13VA AC
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20 to +60°C
Storage Temperature
-40°C +75°C
Relative Humidity (Non-condensing)
Max. 95% (no condensation)
BACKUP CONNECTIONS
Type
1 C/O (SPDT)
Max. Values - AC (NO side)
10A/250V; 1250 VA
Max. Values - DC (NO side)
5A/30VDC; 150W
Mechanical Operating Life
= 10^7 operations
Electrical Operating Life (NO side)
5x10^4 (5A@250VAC) 1x10^5 (5A@30VDC)
MONITORING FUNCTIONS
PTC Protection Short Circuit Threshold
20 ohm
PTC Protection High Value Threshold
2.7 k ohm
PTC Protection Delay Time
500ms
-
Special Function 23072024-TR-EN
