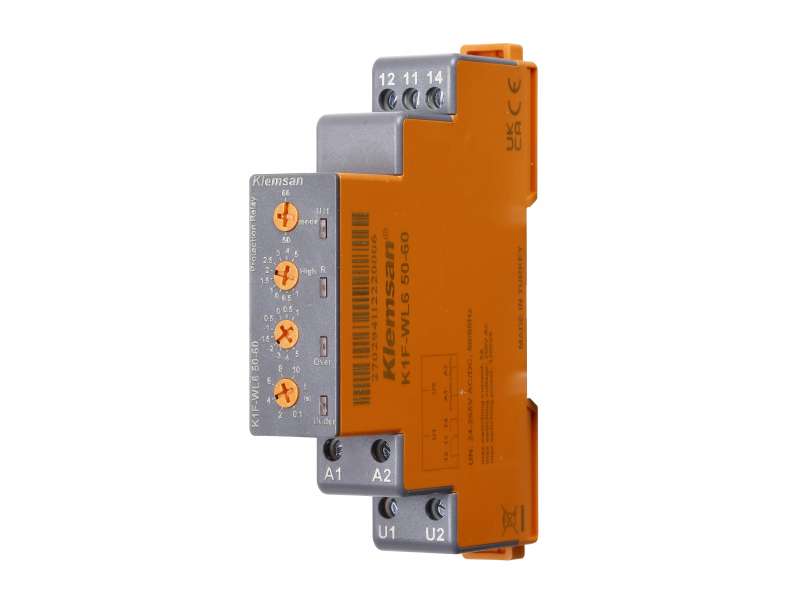

Klemsan Frequency monitoring relay K1F-WL6 50/60; 270294
Klemsan Frequency monitoring relay K1F-WL6 50/60; 270294 45-65 Hz Adjustable, 1 Form C...
VAT-exclusive price: 4.897,76 |
VAT-inclusive price: 5.877,31 |
Klemsan Frequency monitoring relay K1F-WL6 50/60; 270294
45-65 Hz Adjustable, 1 Form C
45-65 Hz Adjustable, 1 Form C
GENERAL
Connection Type
Screw terminal
Protection Class
IP20
Weight (g)
80
Packaging Quantity
1
Case Width (mm)
18
Mounting Type
Rail Mount
EMC-EMI
ok
Networks
1Ø with neutral
POWER SUPPLY
Voltage
24-265 V DC / 24-265 V AC
Frequency
50-60Hz
Consumption
<13VA AC
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20 to +60°C
Storage Temperature
-40°C +75°C
Relative Humidity (Non-condensing)
Max. 95% (no condensation)
BACKUP CONNECTIONS
Type
1 C/O (SPDT)
Max. Values - AC (NO side)
10A/250V; 1250 VA
Max. Values - DC (NO side)
5A/30VDC; 150W
Mechanical Operating Life
= 10^7 operations
Electrical Operating Life (NO side)
5x10^4 (5A@250VAC) 1x10^5 (5A@30VDC)
MONITORING FUNCTIONS
Phase Loss Delay Time
500 ms
Neutral Loss Delay Time
500 ms
Voltage Protection Lower Limit
75% x Un
Voltage Protection Delay Time
5dk .. 15dk
Frequency Protection Upper Limit
49Hz .. 55Hz & 59 .. 65Hz
Frequency Protection Lower Limit
45Hz .. 51Hz & 55 .. 61Hz
Frequency Protection Delay Time
0,03
PTC Protection Short Circuit Threshold
500ms
-
Special Function 23072024-TR-EN
