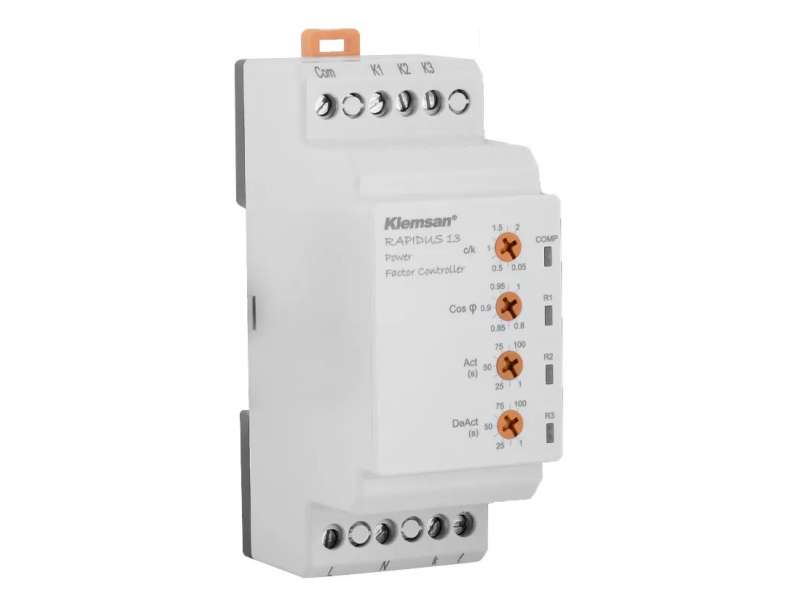

Klemsan Mini Power Factor Controller RAPIDUS 13, 1 phase, 3 steps; 606077
Klemsan Mini Power Factor Controller RAPIDUS 13; 606077...
VAT-exclusive price: 11.549,59 |
VAT-inclusive price: 13.859,50 |
Klemsan Mini Power Factor Controller RAPIDUS 13; 606077
GENERAL
Protection Class
IP20
Case Width (mm)
36
Mounting Type
Rail Mount
Operating Frequency
50 .. 60 Hz
Operating Voltage
180 .. 265 VAC ±10%
Current Measuring Range
10 mA .. 6A AC
Power Consumption
< 4 VA
Measurement System
L-N
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20°C .. 60°C
Storage Temperature
-30°C .. 70°C
Relative Humidity (Non-condensing)
Max.95% (no condensation)
STEPS
Number of Steps (s)
3
Switching Current Max.
2A
Switching Voltage Max.
250V AC
CONFIGURATION
c/k Setting
0.05 .. 2
Target CosØ
0.80 .. 1.00
Activation Time
1 .. 100 sec
Deactivation Time
1 .. 100 sec
-
RAPIDUS 13
-
RAPIDUS mini 31072019
