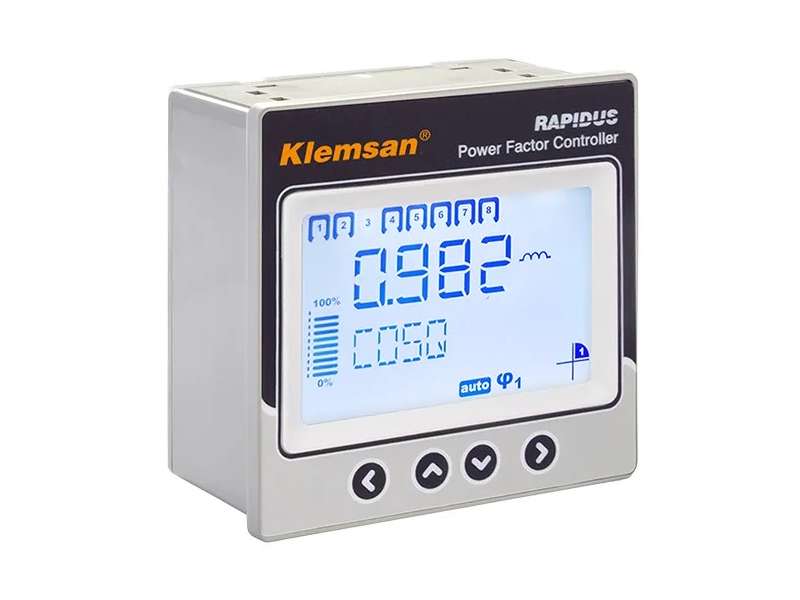

Klemsan Power Factor Controller 118R, 1phase, 8 steps ; 606065
Power Factor Controller 118R, 1phase, 8 steps ; 606065...
VAT-exclusive price: 28.046,31 |
VAT-inclusive price: 33.655,57 |
Power Factor Controller 118R, 1phase, 8 steps ; 606065
CONNECTION DATA
Connection Type
L-L L-N
GENERAL
Measurement System
1Ø
LCD Screen
+
Language Support
Turkish, English
Password Protection
✅
Voltage Transformer Ratio (VTR)
1 - 999.9
Current Transformer Ratio (CTR)
1 - 5.000
Number of Measurements in One Period
512
LCD/Screen Refresh Rate
<0.5 sec. sn.
Networks
TT, TN,
COMPENSATION MODES
Rapidus (Smart Control Mode)
✅
Manual
✅
STEP CONFIGURATIONS
Manual Definition
✅
Predefined
1-1-1-1, 1-2-2-2, 1-2-4-4
Power (kVAr)
0.00-1000 adjustable
Type
3Ø capacitor, 1Ø capacitor
POWER FACTOR SETTINGS
Target 1 cosØ
0.8 cap. to 0.8 ind. adjustable
Target 2 cosØ
0.8 cap. to 0.8 ind. adjustable
Dual cosØ Target
✅
4 Quadrant Operation for Generators
✅
ENERGY MEASUREMENT
Multiple Sub Tariffs (Peak, On-Peak and Off-Peak)
--
1Ø Phase Energy Measurement
--
3Ø Phase Energy Measurement
--
CURRENT MEASUREMENT INPUT
Measuring Range
10mA-6A AC
Overvoltage Category
300 V Cat III
Voltage Fluctuation Measurement
---
Power Consumption
<0.2 VA
Intermittent Overload
100A for 1 sec.
Sampling Frequency Between 45-65 Hz
25.6 kHz
VOLTAGE MEASUREMENT INPUT
Overvoltage Category
300 V Cat III
Measuring Range L-N
120...510V AC ±10%
Measuring Range L-L
120...510V AC ±10%
Frequency Measuring Range
45-65 Hz
Power Consumption
<0.2 VA
Sampling Frequency Between 45-65 Hz
25.6 kHz
POWER QUALITY MEASUREMENTS
THD - Voltage (as %)
✅
THD - Current (as %)
✅
MEASURING ACCURACY - IEC 61557-12
Total Active Power
Class 0.5
Total Reactive Power
Class 1
Total Reactive Energy
Class 2
Frequency
Class 0.1
Current
Class 0.5
Neutral Current
Class 0.5
Voltage
Class 0.2
Power Factor
Class 0.5
THDV, THDI
Class 1
Total Apparent Power
Class 0.5
Total Active Energy
Class 0.5
MEASURING ACCURACY - IEC 62053-22
Total Active Energy
Class 0.5S
MEASURING ACCURACY - IEC 62053-23
Total Reactive Energy
Class 2
COMPENSATION RELAY OUTPUTS
Number of Outputs
8
Type
NO (SPST)
Max. Switching Current
4A
Max. Switching Voltage
250VAC
Max. Switching Power
1250VA
Mechanical Operating Life
= 10.0000000 operations
Electrical Operating Life (NO side)
5×104(5A@250VAC) 1×105(5A@30VDC)
ALARM RELAY OUTPUTS
Number of Outputs
2
Type
NO (SPST)
Max. Switching Current
4A
Max. Switching Voltage
250 VAC
Max. Switching Power
1250 VA
Mechanical Operating Life
= 10.0000000 operations
Electrical Operating Life (NO side)
5×104(5A@250VAC) 1×105(5A@30VDC)
GENERATOR / DAY-NIGHT INPUT
Number of Inputs
1
Frequency
45-65Hz
Input
95-240VAC
INPUTS AND OUTPUTS
Digital Outputs
--
Analog Outputs
--
POWER SUPPLY
Backup Supply Input
--
Voltage
La-Lb den 120...510V AC ±10%
Frequency
45-65Hz
Consumption
< 10VA
MECHANICAL PROPERTIES
Weight (g)
0,94
Protection Class
Front IP40 / Rear IP20
Mounting Type
Panel Mount
Packaging Quantity
1
CABLE CROSS-SECTIONS
Voltage, Current, All Relay Outputs, Generator Input
2.5mm² - 14AWG with ferrule - 4mm² - 12AWG without ferrule, 2x1.5mm² - 2x16AWG
RS485
1.5mm² - 16AWG with ferrule - 1.5mm² - 16AWG without ferrule, 2x0.75mm² - 2x18AWG
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20°C +55°C
Storage Temperature
-30°C +80°C
Relative Humidity (Non-condensing)
Max. 95%
EMC-EMI
EN 61000-6-1:2011
✅
DIAGRAMS
Mains Connection
✅
Step Output Connections
✅
COMMUNICATION
Protocol
Modbus RTU
Baud Rate
1200-38400 bps adjustable
Parity
---
Stop Bit
1
Slave ID
1-247
Isolation
2000V RMS
-
RAPIDUS 118R
-
RAPIDUS1 TR EN 10012020
-
118R
