Festo Stem actuated valve V-3-1/4-B ; 6808
Stem actuated valve V-3-1/4-B V-3-1/4-B Part no. 6808 With roller lever Die-cast aluminum design...
Price on request
Stem actuated valve V-3-1/4-B
V-3-1/4-B Part no. 6808
- With roller lever
- Die-cast aluminum design
- Valve function
- 3/2, closed, monostable
- Actuation type
- Mechanical
- Standard nominal flow rate
- 600 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- -0.95 bar ... 10 bar
- Design
- Plate seat
- Nominal width
- 7 mm
- Type code
- V
- Type of control
- Direct

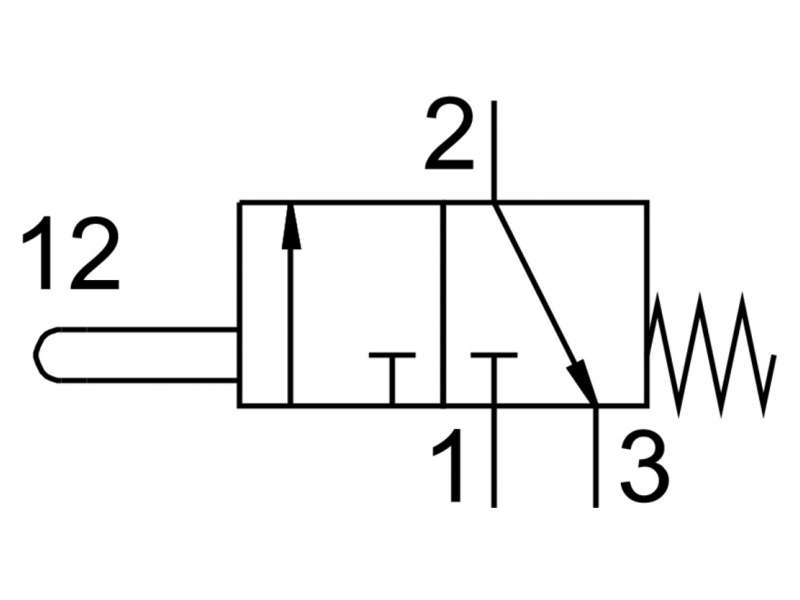

- Symbol
- 00991095
- Explosion prevention and protection
-
Zone 1 (ATEX)
Zone 21 (ATEX)
Zone 2 (ATEX)
Zone 22 (ATEX) - Ambient temperature
- -10 °C ... 60 °C
- Actuating force
- 70 N
- Product weight
- 130 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G¼
- Pneumatic connection 3
- G1/4
- Seals material
- NBR
- Housing material
- Die-cast aluminum
-
