EUCHNER Submodul MSM-1-R-CKS2-FLX-R1Q0FS-N3-172950

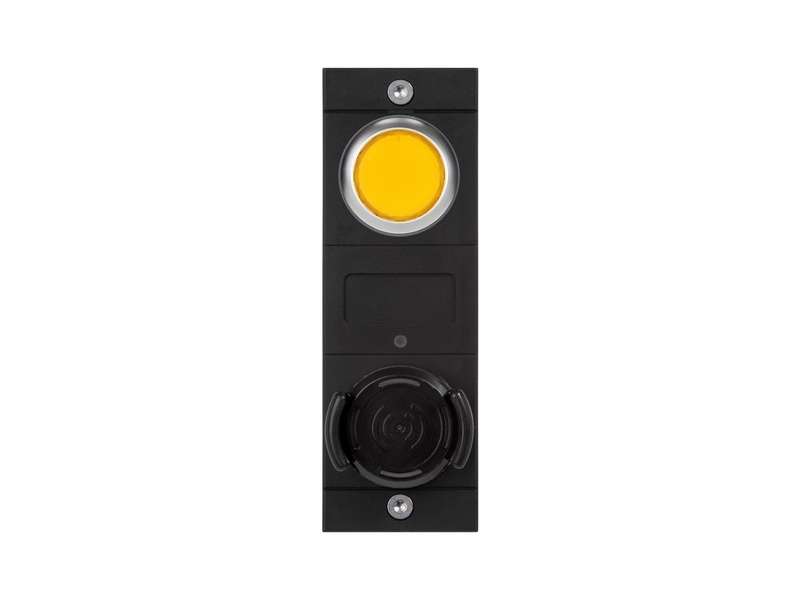

Submodul MSM-1-R... (CKS2 Schlüsselaufnahme, Quittiertaster)
- Function expansion for modules MGB2 and MCM
- Connection type: R
- CKS2 Schlüsselaufnahme mit integrierter Auswerteelektronik
- 1 acknowledgment button
- Freely controllable LEDs (red, green, yellow)
- Zusätzliche RGB-LED für einfache Diagnose
- Aussparung für Einlegeschild
- Inkl. Einlegeschilder-Set bunt
Category according to EN 13849-1
Das CKS2-System ist geeignet für die Integration in Anlagen mit höchsten Sicherheitsanforderungen wie der Kategorie 4 / PL e nach EN ISO 13849-1.
Key evaluation
EUCHNER products with FlexFunction require a teach-in operation during setup to configure the device. The device’s function depends on the taught-in key type.
Important: Keys must be ordered separately!
Approvals
Operating and display elements
| Item | Color | Extras | Switching element | Note slide-in label | Version | Slide-in label | Number | Designation1 | LED |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2NO | Acknowledgment button | |||||||
| 2 | 12.5x27�mm | Position for slide-in label | |||||||
| 3 | CKS2 key system |
Electrical connection values
| Current consumption | max. 50 mA |
| Controls and indicators | |
| Breaking capacity | max. 0.25 W |
| Switching voltage | 24 V |
| Switching current | 5 ... 10 mA |
| LED power supply | 24 V DC |
Mechanical values and environment
| Installation orientation | any |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP65 (IP20) |
| Ambient temperature | |
| at UB = 24 V DC | -25 ... +55 °C |
| Material | Fiber glass reinforced plastic |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| PL | Maximum SIL | PFHD | Category | Mission time | |
|---|---|---|---|---|---|
| Safe key detection | PL e | 3 | 3.37x10-9 | 4 | 20 y |
| B10D | Mission time | |
|---|---|---|
| Acknowledgment button | 2.6x106 | 20 y |
Miscellaneous
| Submodulbreite | 1 | ||||||
| Slide-in label | |||||||
|
|||||||
| Software ID (SW ID) | 9000058 | ||||||
-
EUCHNER 172950
-
MAN Operating-Instructions-Submodule-MSM-1-R-C… EN 2575341 MAN20001527
-
169814 02-04-23 Datenblatt CKS2 Submodul.de-en
