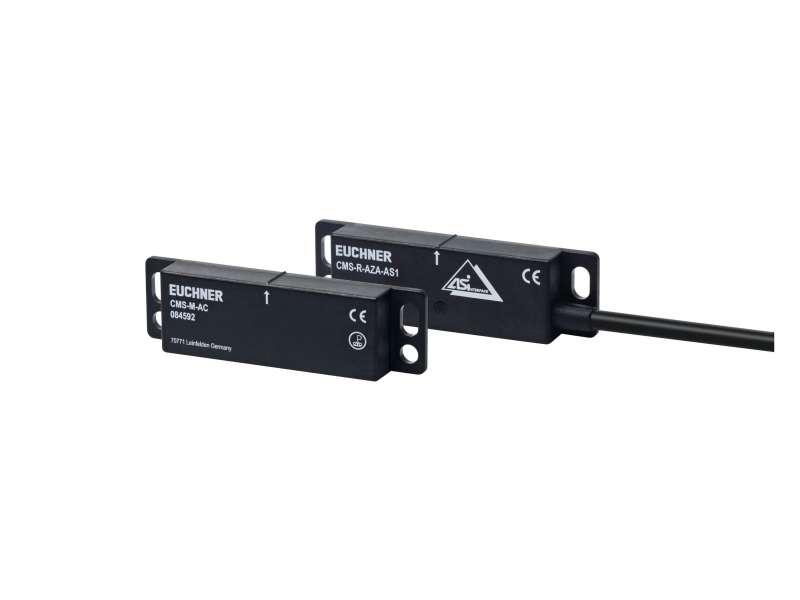

EUCHNER Read Heads CMS ; CMS-R-AZA-01PL-AS1 ; 105090
Non-contact safety switch CMS-R-AZA-01VL-AS1, with connection cable and plug connector M12. Safety switches with integrated read head and integrated evaluation unit....
Price on request
Non-contact safety switch CMS-R-AZA-01VL-AS1, with connection cable and plug connector M12.
- Safety switches with integrated read head and integrated evaluation unit.
- LED diagnostic displays
- switch-on distance 9 mm
Approvals

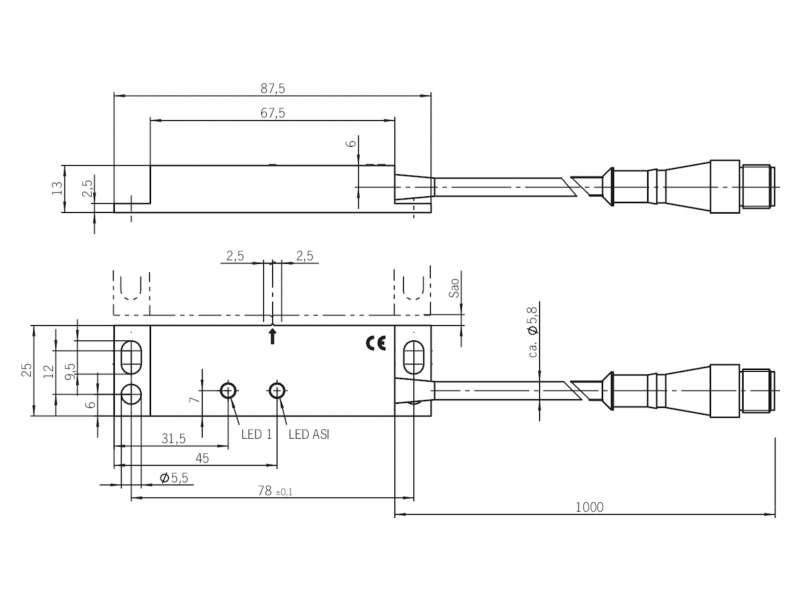

Mechanical values and environment
| Design | A |
| Material | |
| Cable material | PUR |
| Housing material | Reinforced thermoplastic (PPS), fully encapsulated |
| Weight | |
| Net | 0,1 kg |
| Ambient temperature | -25 ... 60 °C |
| Degree of protection | IP67 |
| Mechanical life | 100 x 106 |
| Installation orientation | Any, pay attention to marking |
| Reaction time | |
| After change in the actuation status | max.5 ms |

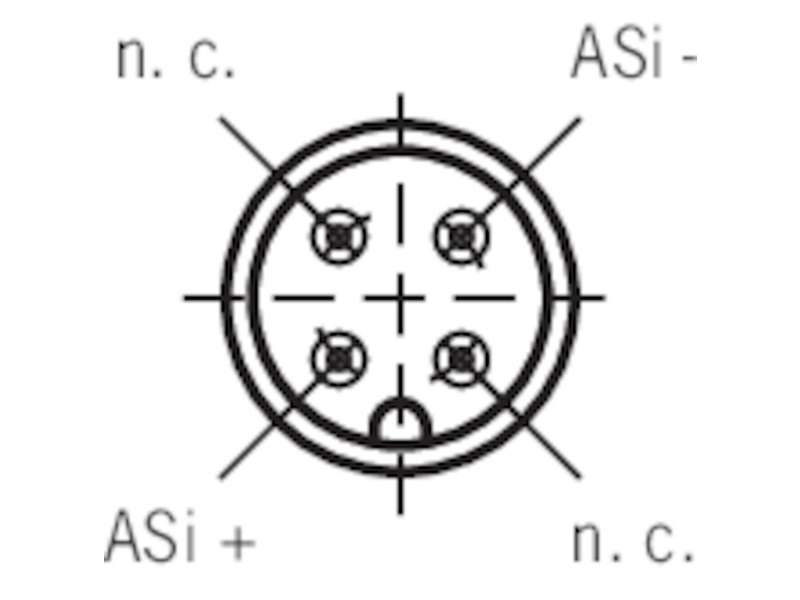

| Connection | Hard-wired encapsulated cable with plug connector M12 |
| Cable length | 1 m |
| Method of operation | Magnetic, reed contact |
Electrical connection ratings
| ASi voltage | 30 V 26,5 ... 31,6 V |
| ASi operating current | max.30 mA |
| ASi slave type | |
| According to ASI specification 3.0 | EA code: 7 |
| ID code: B | |
| ASi data in | |
| According to ASI safety at work | D0,D1,D2,D3 |
| ASi data out | |
| LED red | D1 |
| ASi LED | |
| LED red | No data exchange between master and slave |
| LED red/yellow alternately flashing | No data exchange between master and slave |
| LED red/green alternately flashing | Fault |
| LED red flashing | Fault |
| LED green | Normal operation |
Work area
| Switch-on distance | 9 mm |
| Assured switch-off distance Sar | max.70 mm |
| Center offset | |
| Symmetrical, read distance s = 3mm | 2,5 mm |
Other
| In compliance with | EN 60947-5-3: 2013; EN ISO 13849-1: 2008; EN ISO 14119: 2013; EN 62026-2: 2013 (AS-i) |
Reliability values according to EN ISO 13849-1
| Monitoring of the safety guard position | |
| Category | 3 |
| Performance Level | PL e |
| B10D | 3 x 106 |
| PFHD | 4.29 x 10-8 |
| Mission time | 20 y |
-
372475
-
391407
