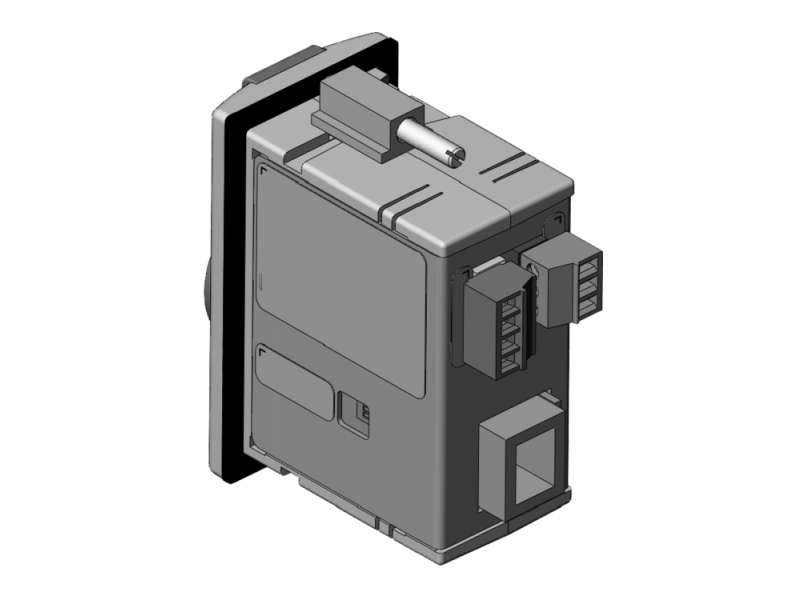

EUCHNER Electronic-Key adapter with PROFINET interface FSA version ; 106306

EKS-A-IIXA-G01-ST02/03/04 Electronic-Key adapter with PROFINET IO interface read/write system Remote installation Electronic-Key adapter and electronics in one housing...

Brand: EUCHNER
Product Code: 106306
Availability: Check availability

Price on request

EKS-A-IIXA-G01-ST02/03/04

Electronic-Key adapter with PROFINET IO interface
read/write system
Remote installation
Electronic-Key adapter and electronics in one housing
Reliable retention of the Electronic-Key, even if there is heavy vibration
Transfers the data from the Electronic-Key to a control system for processing
Connection to PLC
PROFINET protocol, cyclic data transfer to control system
Interfacing via GSDML file
Various options for address assignment, also using DIP switches
Version FSA (For Safety Applications)

Approvals

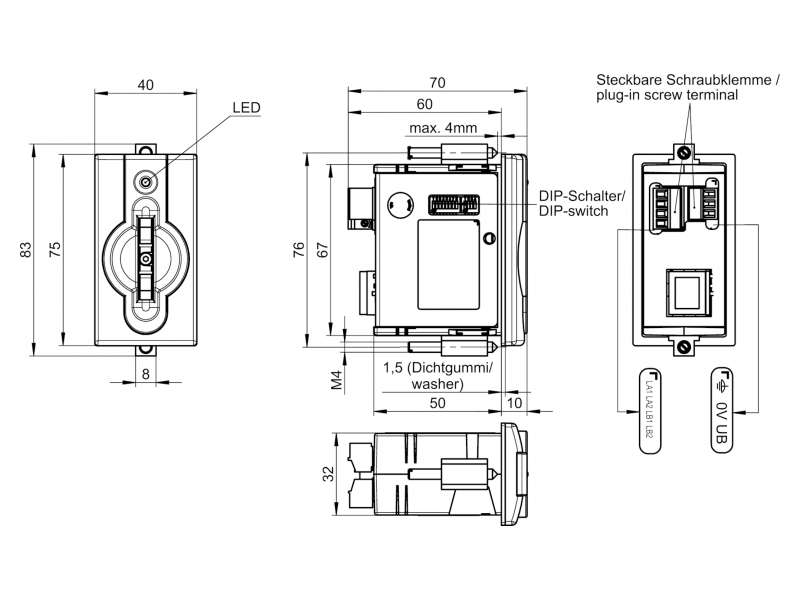

Mechanical values and environment

Mounting cut-out
according to DIN EN 61554	33x68 mm
Housing material
Housing	PA6-GF30 gray
Ambient temperature	0 ... 55 °C
Degree of protection	IP67 in installed state (only access side)
Installation orientation	On the front
	PROFINET interface
Connection	RJ-45 socket

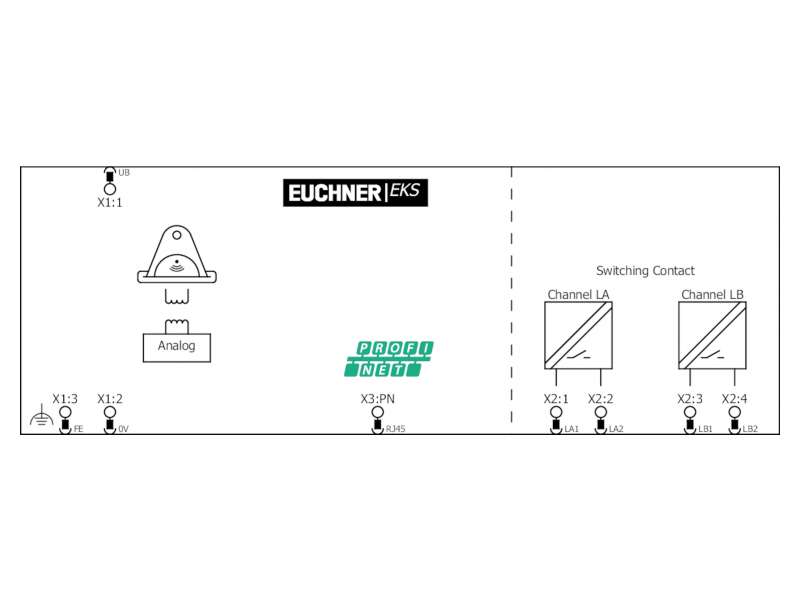

Electrical connection ratings

LED display
Green	Operational
Yellow	Key in operating distance
Red	Fault
	PROFINET interface
Connecting cable	Min.2x2 twisted pair copper cable shielded, min. Cat. 5
	Star topology wiring
	Power supply
Operating voltage DC	20 ... 24 ... 28 V DC
Current consumption	max.150 mA
	Parameters for the outputs LA and LB
Switching voltage	24 ... 30 V
Switching current	1 ... 10 ... 50 mA With short circuit protection max. 100 times
Utilization category according to EN 60947-5-1
AC-15	24V 50mA
AC-12	24V 50mA
DC-12	24V 50mA
Utilization category according to EN 60947-5-2
DC-13	24V 50mA
Connection cross-section	0,14 ... 1,5 mm²
Discrepancy time	200 ms Difference time between outputs (LB first)
