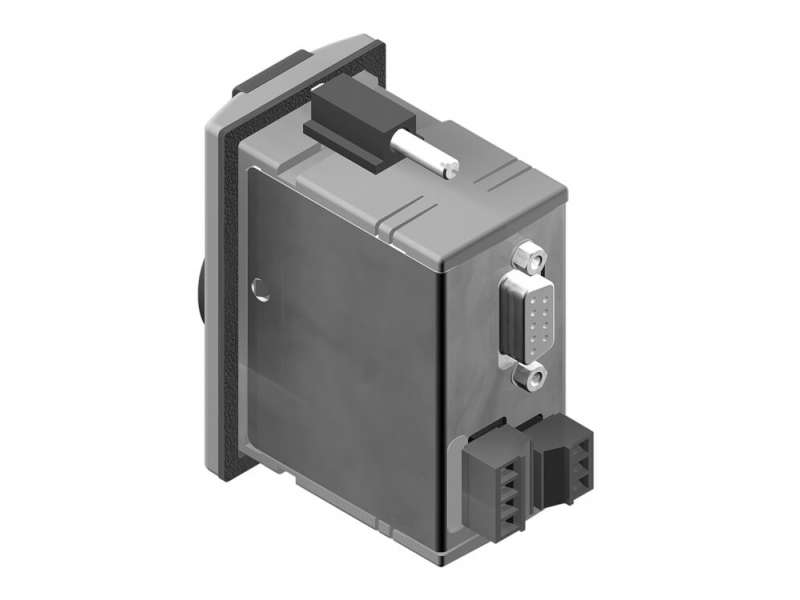

EUCHNER Electronic-Key adapter with PROFIBUS DP interface FSA version ; 100378
EKS-A-IDXA-G01-ST09/03/04 Electronic-Key adapter with PROFIBUS DP interface read/write system Remote installation Electronic-Key adapter and electronics in one housing...
Price on request
EKS-A-IDXA-G01-ST09/03/04
- Electronic-Key adapter with PROFIBUS DP interface
- read/write system
- Remote installation
- Electronic-Key adapter and electronics in one housing
- Reliable retention of the Electronic-Key, even if there is heavy vibration
- Transfers the data from the Electronic-Key to a control system for processing
- Connection to PLC
- PROFIBUS protocol, cyclic data transfer to control system
- Interfacing via GSD file
- Address assignment via DIP switches
- Version FSA (For Safety Applications
Approvals
Mechanical values and environment
| Mounting cut-out | |
| according to DIN EN 61554 | 33x68 mm |
| Housing material | |
| Housing | PA6-GF30 gray |
| Ambient temperature | 0 ... 55 °C |
| Degree of protection | IP67 in installed state (only access side) |
| Installation orientation | On the front |
| PROFIBUS DP | |
| Connection | Socket Sub-D 9-pin |
Electrical connection ratings
| LED display | |
| Green | Operational |
| Yellow | Key in operating distance |
| Red | Fault |
| Parameters for the outputs LA and LB | |
| Switching voltage | 24 ... 30 V |
| Switching current | 1 ... 10 ... 50 mA With short circuit protection max. 100 times |
| Utilization category according to EN 60947-5-1 | |
| AC-15 | 24V 50mA |
| AC-12 | 24V 50mA |
| DC-12 | 24V 50mA |
| Utilization category according to EN 60947-5-2 | |
| DC-13 | 24V 50mA |
| Connection cross-section | 0,14 ... 1,5 mm² |
| Discrepancy time | 200 ms Difference time between outputs (LB first) |
| Power supply | |
| Operating voltage DC | 20 ... 24 ... 28 V DC |
| Current consumption | max.150 mA |
| Connection cross-section | 0,14 ... 1,5 mm² |
Interface, bus
| PROFIBUS DP | |
| Data protocol | Profibus DP according to EN50170 |
Other
| Parameters for the outputs LA and LB | |
| Additional feature | 35 Resistance in switched-on state in Ohm |
| max.1 Capacitive load per output in µF |
-
47515
