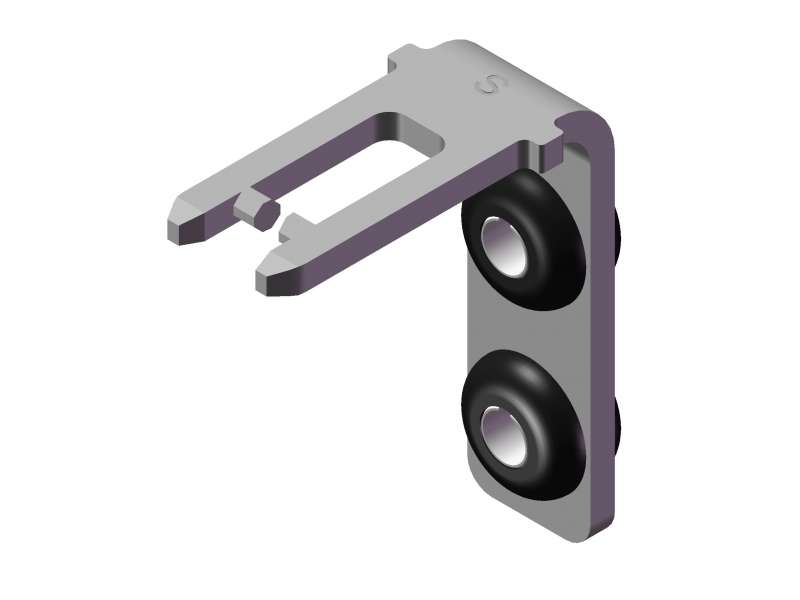

EUCHNER Bent actuator for safety switch NP/GP/TP BETAETIGER-P-WT (Order no. 070038)
Bent actuator for safety switch NP/GP/TP BETAETIGER-P-WT (Order no. 070038)...
Price on request
Bent actuator for safety switch NP/GP/TP BETAETIGER-P-WT (Order no. 070038)
Bent actuator for safety switch NP/GP/TP
- Actuator made of stainless steel
- Two stainless-steel safety screws per actuator
- Actuator with rubber bush
Actuator with rubber bush
For flexible mounting of the actuator.
Screws made of stainless steel
The safety screws included can be inserted with a normal tool, but cannot be removed again.
Mechanical values and environment
| Overtravel | max. 2 mm |
| Door radius | min. 1000 mm |
| Material | |
| Rubber bush | NBR |
| Actuator | Stainless steel |
| Screw | Stainless steel |
Miscellaneous
| Usability of insertion funnel | No |
-
EUCHNER 070038-1
