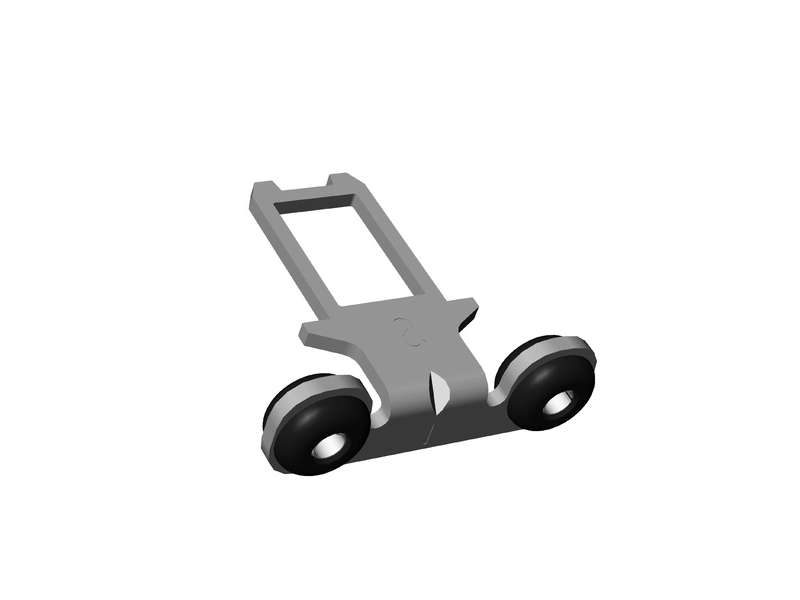

EUCHNER Actuator S, bent, for safety switch SGA/SGP/STA/STP/STM, BETAETIGER-S-WQT-SN; 095740

EUCHNER Actuator S, bent, for safety switch SGA/SGP/STA/STP/STM, BETAETIGER-S-WQT-SN; 095740

BETAETIGER-S-WQT-SN; 095740...

Brand: EUCHNER
Product Code: 095740
Availability: Check availability
Price on request
BETAETIGER-S-WQT-SN; 095740

Notice

S-...-SN actuators must not be used in conjunction with insertion funnels. S-...-LN actuators must be used for insertion funnels.

Bent actuator

Suitable for a maximum tensile force of 1000 N.

Screws made of stainless steel

The safety screws included can be inserted with a normal tool, but cannot be removed again.


Approvals

DGUV_SGA_ET 22058_ET 22059

Mechanical values and environment

Overtravel max. 5 mm
Door radius min. 300 mm
Material
Rubber bush NBR
Actuator Stainless steel
Screw Stainless steel
Locking force Fmax max. 1000 N reduced locking force by actuator

Miscellaneous

Usability of insertion funnel no





Actuator S, bent, for safety switch SGA/SGP/STA/STP/STM

  • Two safety screws included
