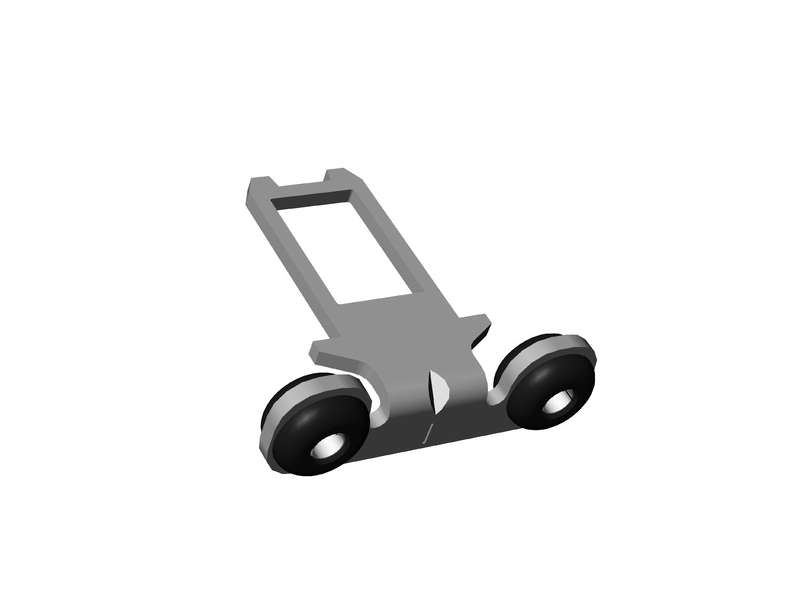

EUCHNER Actuator S, bent, for safety switch SGA/SGP/STA/STP/STM for insertion funnel, BETAETIGER-S-WQT-LN (Order no. 095741)
ACTUATOR,SAFETY,S-WQ-LN ; 095741 // Actuator S, bent, for safety switch SGA/SGP/STA/STP/STM for insertion funnel...
Price on request
ACTUATOR,SAFETY,S-WQ-LN ; 095741 //
Actuator S, bent, for safety switch SGA/SGP/STA/STP/STM for insertion funnel
Actuator S, bent, for safety switch SGA/SGP/STA/STP/STM for insertion funnel
Notice
S-...-SN actuators must not be used in conjunction with insertion funnels. S-...-LN actuators must be used for insertion funnels.
Bent actuator
Suitable for a maximum tensile force of 1000 N.
Screws made of stainless steel
The safety screws included can be inserted with a normal tool, but cannot be removed again.
Approvals
Mechanical values and environment
| Overtravel | max. 5 mm |
| Door radius | min. 300 mm |
| Material | |
| Actuator | Stainless steel |
| Screw | Stainless steel |
| Rubber bush | NBR |
| Locking force Fmax | max. 1000 N reduced locking force by actuator |
Miscellaneous
| Usability of insertion funnel | yes |
Actuator S, bent, for safety switch SGA/SGP/STA/STP/STM for insertion funnel
- Two safety screws included
- Actuator with rubber bush
