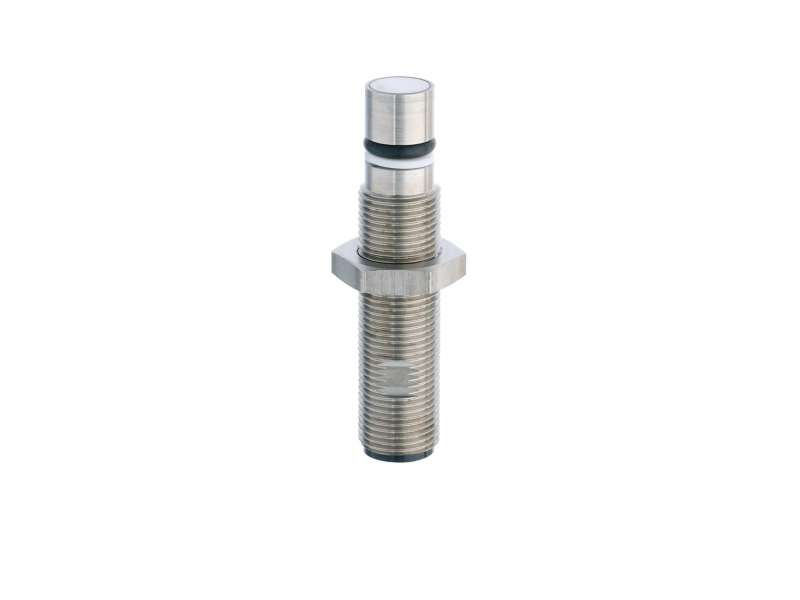

CONTRINEX High pressure DMS Smart 0...2 mm, IDWE-P12MC-NMS-A0-100; 330-020-484
High pressure DMS Smart 0...2 mm, IDWE-P12MC-NMS-A0-100; 330-020-484 M12 4-pin|Embeddable, PNP|OSS1/IO-Link + OSS2/INPUT, pressure up to 500bar, 56 mm | 14.9 mm...
VAT-exclusive price: 37.200,00 |
VAT-inclusive price: 44.640,00 |
High pressure DMS Smart 0...2 mm, IDWE-P12MC-NMS-A0-100; 330-020-484
M12 4-pin|Embeddable, PNP|OSS1/IO-Link + OSS2/INPUT, pressure up to 500bar, 56 mm | 14.9 mm
M12 4-pin|Embeddable, PNP|OSS1/IO-Link + OSS2/INPUT, pressure up to 500bar, 56 mm | 14.9 mm
| Operating range | 0...2 mm |
| Switching frequency max. | 125 Hz |
| Supply voltage | 18...30 |
| Operating pressure [bar] | ≤ 500 bar |
| Polarity | PNP |
| Output | OSS1/IO-Link + OSS2/INPUT |
| Repeatability | < 0.005 mm |
| Connection | M12 4-pin |
| Housing size [mm] | M12 |
| Enclosure rating | IP 68 |
| Housing material | Stainless-steel V2A |
| Resolution | 0.7 µm |
| Temperature range | -25...+100°C |
| Sensor Height | 56 mm |
| Mounting | Embeddable |
| Interface | IO-Link |
| Sensing range max. | 0...2.2 mm |
-
Flyer Cylinders EN 24-WEB
-
IDWE-P12MC-NMS-A0-10x
