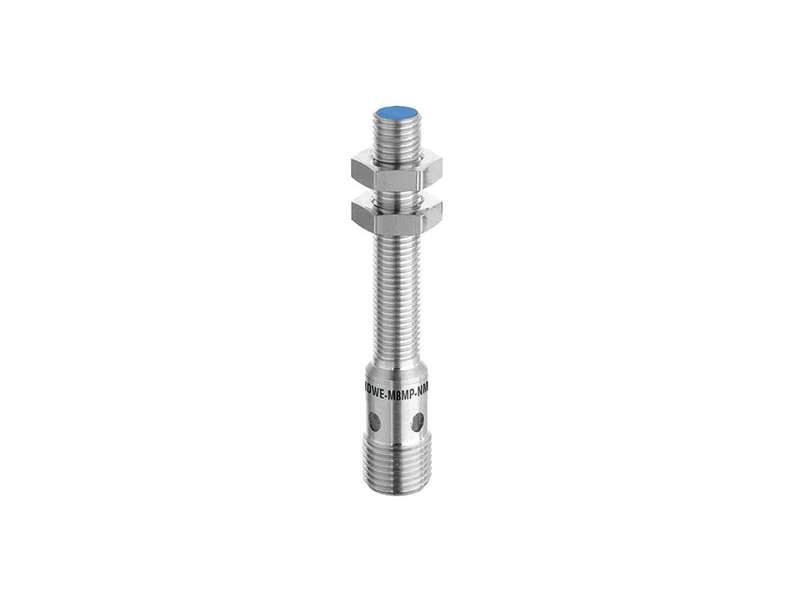

CONTRINEX DMS Smart 0...4 mm, IDWE-M8MP-NMS-A0; 330-020-494
DMS Smart 0...4 mm, IDWE-M8MP-NMS-A0; 330-020-494 M12 4-pin|Embeddable, PNP|OSS1/IO-Link + OSS2/INPUT, 66 mm|Chrome-plated nickel sil...
VAT-exclusive price: 11.700,00 |
VAT-inclusive price: 14.040,00 |
DMS Smart 0...4 mm, IDWE-M8MP-NMS-A0; 330-020-494
M12 4-pin|Embeddable, PNP|OSS1/IO-Link + OSS2/INPUT, 66 mm|Chrome-plated nickel sil
M12 4-pin|Embeddable, PNP|OSS1/IO-Link + OSS2/INPUT, 66 mm|Chrome-plated nickel sil
| Operating range | 0...4 mm |
| Switching frequency max. | 125 Hz |
| Supply voltage | 18...30 |
| Polarity | PNP |
| Output | OSS1/IO-Link + OSS2/INPUT |
| Repeatability | < 0.006 mm |
| Connection | M12 4-pin |
| Housing size [mm] | M8 |
| Enclosure rating | IP 67 |
| Housing material | Chrome-plated nickel silver |
| Resolution | 5 µm |
| Temperature range | -25...+70°C |
| Sensor Height | 66 mm |
| Mounting | Embeddable |
| Interface | IO-Link |
| Sensing range max. | 0...4.4 mm |
-
IDWE-M8MP-NMS-A0
