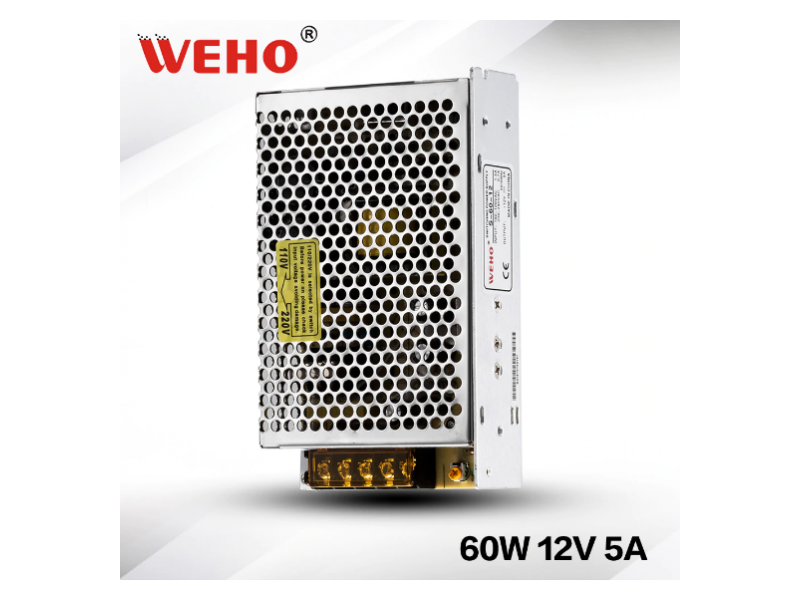

WEHO S-60-12
Switching power supply, output voltage 12V, output power 60W. Features: High efficiency, high reliability and low cost Switch input voltage range choice 100% full...
Out of stock
Features:
High efficiency, high reliability and low cost
Switch input voltage range choice
100% full load and machine test
Protection characteristics: short circuit/overload
Air cooling
Working frequency 37 KHz
Two years warranty

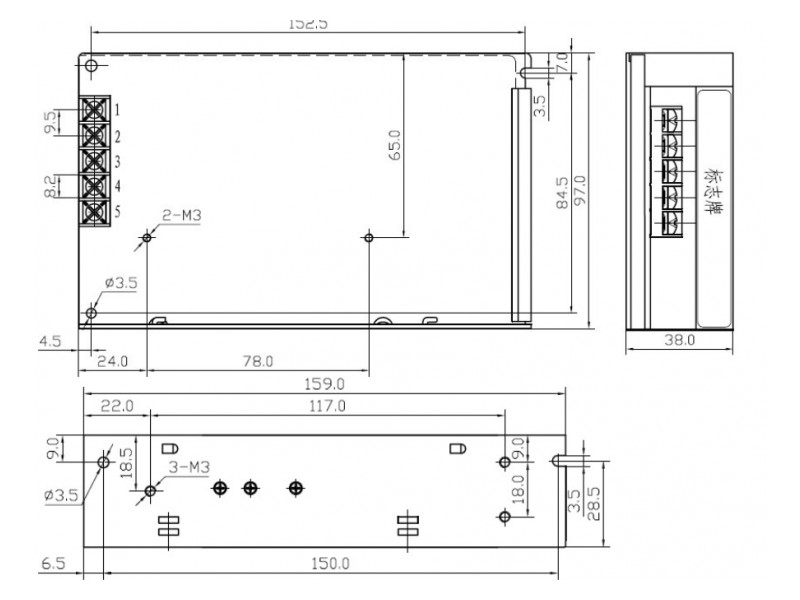

Size:159*98*38mm(L*W*H)
model |
S-60-5 |
S-60-12 |
S-60-15 |
S-60-24 |
S-60-48 |
|
output |
Dc output voltage |
5V |
12V |
15V |
24V |
48V |
Output voltage tolerance |
±2% |
±1% |
±1% |
±1% |
±1% |
|
Rated output current |
12A |
5A |
4A |
2.5A |
1.3A |
|
Output current range |
0-12A |
0-5A |
0-4A |
0-2.5A |
0-1.3A |
|
Output power |
60W |
60W |
60W |
60W |
62.4W |
|
Ripple and the noise |
120mVp-p |
120mVp-p |
150mVp-p |
150mVp-p |
200mVp-p |
|
Dc voltage adjustable scope |
+10, -5% |
±10% |
±10% |
±10% |
±10% |
|
Start, rise, keep time |
800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC |
|||||
input |
Input voltage range |
90 ~132 VAC / 180-264VAC by switch 47~63 Hz;120~370VDC |
||||
Exchange input current |
2A/115 V 1A/ 230 V |
|||||
efficiency |
73% |
76% |
77% |
79% |
79% |
|
Impulse current |
Cold start current 30A/115VAC 60A/230VAC |
|||||
Leakage current |
<3.5 mA/240VAC |
|||||
Protection characteristics |
Overload protection |
115%~165% |
||||
Protection way: current limiting, automatic recovery |
||||||
Over-voltage protection |
115%~135% |
|||||
Protection way: hiccups, auto recovery mode |
||||||
environment |
Working temperature, humidity |
-10℃~+60℃;20%~90 %RH |
||||
Keep temperature, humidity |
-20℃~+85℃;10%~95 %RH |
|||||
Vibrate resistance |
10~500Hz,2G 10min./1 cycle time, 60 minutes, the axis |
|||||
security |
Compression sex |
3: KVAC between input and output and input and output KVAC: 1.5 to 0.5: KVAC |
||||
Insulation resistance |
Between the input and output, the input and output, and ground: |
|||||
standard |
Safety standards |
Accord with |
||||
EMC standards |
Accord with |
|||||
other |
weight |
0.5Kg |
||||
packaging |
30pcs/15.8Kg/0.99CUFT |
|||||
note |
1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value. 2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement. 3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. 4. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index. 5. Specific output current see output drop forehead curve |
