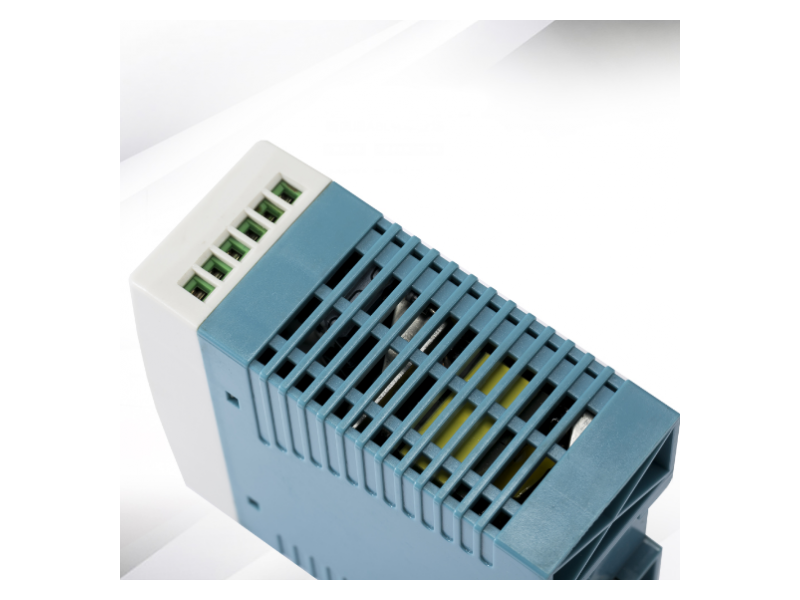

WEHO MDR-40-12
MDR-40-12 AC/DC 40W 12V DIN rail power supply with CE ROHS Features: 1. AC input range selectable by switch 2. Protections: Short circuit / Overload / Over voltage...
Out of stock

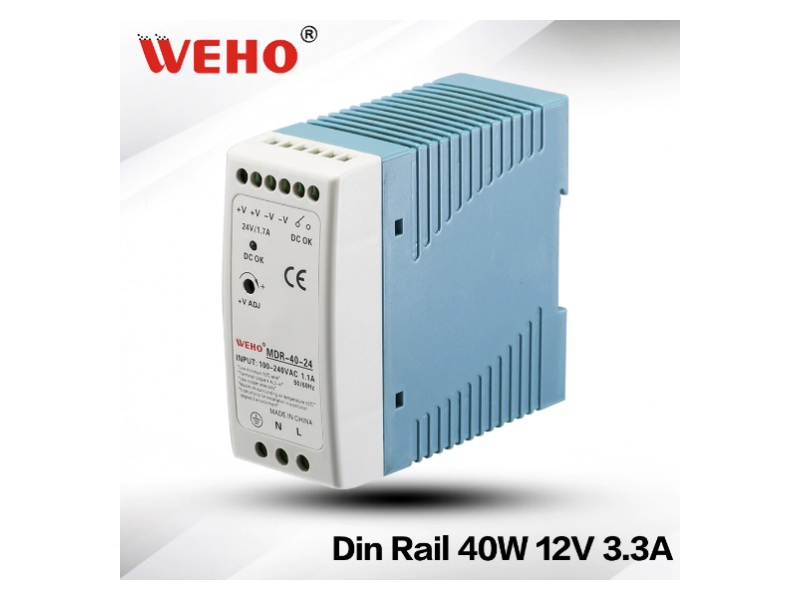

MDR-40-12 AC/DC 40W 12V DIN rail power supply with CE ROHS
Features:
1. AC input range selectable by switch
2. Protections: Short circuit / Overload / Over voltage / Over temperature
3. 100% full load burn-in test
4. Low cost, high reliability
5. 24 months warrantyTechnical data | Information | ||
---|---|---|---|
Brand
|
Weho
|
Commodity
|
8504409090
|
Item number
|
MDR-40-12
|
Warranty pack
|
24 Months Bring-In
|
Series
|
MDR-40
|
RoHS
|
Compliant
|
Description
|
AC-DC Industrial DIN rail power supply; Output 12Vdc at 3.33A; plastic case
|
Packing quantity
|
42
|
Application
|
Installation UL 508
ITE EN/UL/IEC 60950
|
Net weight (gram)
|
360
|
Technology
|
AC/DC
|
||
Power Format
|
DIN rail
|
||
Output Power (W)
|
40
|
||
Output Voltage (V)
|
12
|
||
Output Current (A)
|
3.33
|
||
Input Voltage (V)
|
90 - 264
Universal Input 110/230V
|
||
IP Rating
|
No IP assigned
|
||
Width (mm)
|
40
|
||
Height (mm)
|
90
|
||
Depth (mm)
|
100
|
||
Control Signals
|
DC OK
|
||
Dimming Technology
|
No Dimming
|
