Model

LRS-35-5

LRS-35-12

LRS-35-15

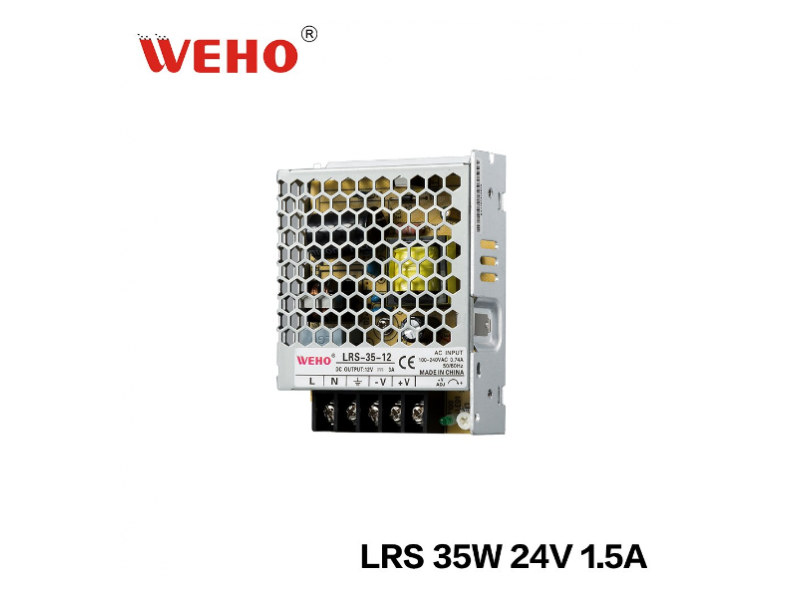

LRS-35-24

LRS-35-36

LRS-35-48

Dc output voltage

5V

12V

15V

24V

36V

48V

Rated output current

7A

3A

2.4A

1.5A

1A

0.8A

Output current rage

0-7A

0-3A

0-2.4A

0-1.5A

0-1A

0-0.8A

Rated Power

35W

36W

36W

36W

36W

38.4W

Wave and noise

80mVp-p

120mVp-p

120mVp-p

150mVp-p

200mVp-p

200mVp-p

Voltage ADJ. range

4.5-5.5V

10.2-13.8V

13.5-18V

21.6-28.8V

32.4-39.6V

43.2-52.8V

Voltage tolerance

±2%

±1%

±1%

±1%

±1%

±1%

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load Regulation

±1%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Efficiency

82%

86%

86%

88%

88%

89%

AC input voltage range

AC85~264V 47~63Hz;120~373VDC

Input current

0.7A/115V 0.42A/230V

AC INnrush current

Cold-start 45A/230V

Overload proctection

110%~150% Potection type: Hiccp mode,recobers automatically after condition is recoverd

Over-voltage protection

5.75-6.9V

13.8-16.2V

18.75-21.75V

28.8-33.6V

41.4-48.6V

55.2-64.8V

Potection type :Shut down o/p voltage,re-power on to recover

Setup rise time

1000ms,30ms/230VAC 2000ms,30ms/115VAC at full lod

Hold up time

30ms/230VAC ,12ms/115VAC at full lod

Withstand voltage

I/P-O/P:3KVAC,I/P-FG:2KVAC,O/P-FG: 1.25KVAC

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG:100M Ohms/ 500VDC /25°C/70%RH

Working temperature

-20°C~+60°C

Overall dimension

99*82*30mm

Safety standards

Meet ULGB4943 UL60950 EN60950

EMC standards

Meet EN55022,EN61000-3-2,EN61000-3-3,EN55024 GB9254 Class B

Weight

0.23Kgs
