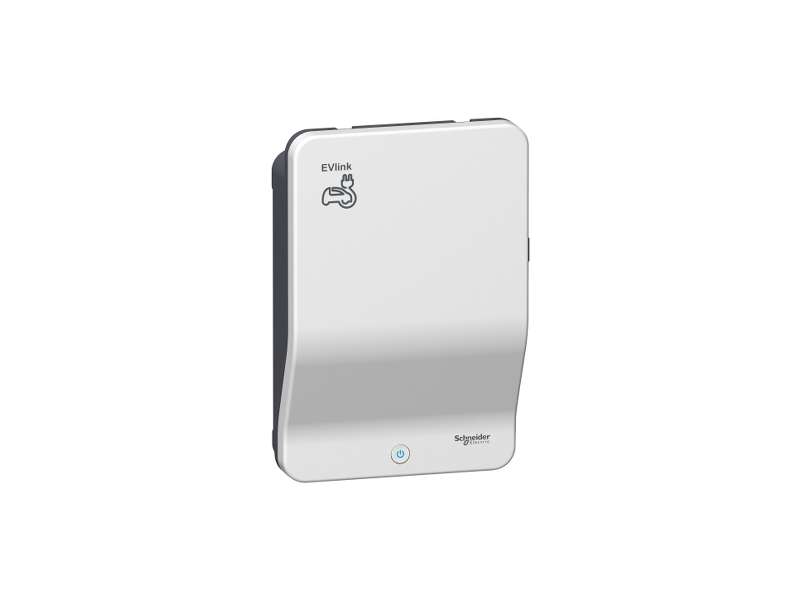

Schneider Electric EVlink Wallbox - 11 kW - T2 utičnica - stanice za punjenje ; EVH2S11P02K
EVlink Wallbox - 11 kW - T2 socket outlet - charging station...
VAT-exclusive price: 130.857,00 |
VAT-inclusive price: 157.028,40 |
EVlink Wallbox - 11 kW - T2 socket outlet - charging station
| range |
EVlink
|
|
|---|---|---|
| product name |
EVlink Wallbox
|
|
| product or component type |
Charging station
|
|
| device short name |
EVH2
|
|
| poles description |
3P + N
|
|
| mounting mode |
Wall-mounted
|
|
| offer type |
Standard
|
|
| Max power |
11 kW 16 A
|
|
| Number of charge point |
1
|
|
| Connection to the vehicle |
Socket-outlet T2
|
|
| access control system |
Key
|
| rated supply voltage |
380...415 V AC 50/60 Hz
|
|
|---|---|---|
| number of inputs |
1
|
|
| input type |
Contact for power limitation
Contact for delayed charging |
|
| control type |
1 white button, function: stop/restart
Green button, function: cable unlocking |
|
| local signalling |
1 multi-colour LED, function: status indication
|
|
| height |
480 mm
|
|
| width |
331.5 mm
|
|
| depth |
170 mm
|
|
| net weight |
5.6 kg
|
|
| colour |
White (RAL 9003)
Grey (RAL 7016) |
|
| standards |
IEC 62196-2
IEC 61851-22 IEC 61851-1 IEC 62196-1 |
|
| product certifications |
CB
CE |
| IP degree of protection |
IP54 conforming to IEC 60529
|
|
|---|---|---|
| IK degree of protection |
IK10 conforming to IEC 62262
|
|
| ambient air temperature for operation |
-30…50 °C
|
|
| ambient air temperature for storage |
-40…80 °C
|
|
| relative humidity |
5…95 %
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
8.397 kg
|
|
| Package 1 Height |
25.5 cm
|
|
| Package 1 width |
53.5 cm
|
|
| Package 1 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure | ||
| Circularity Profile |
