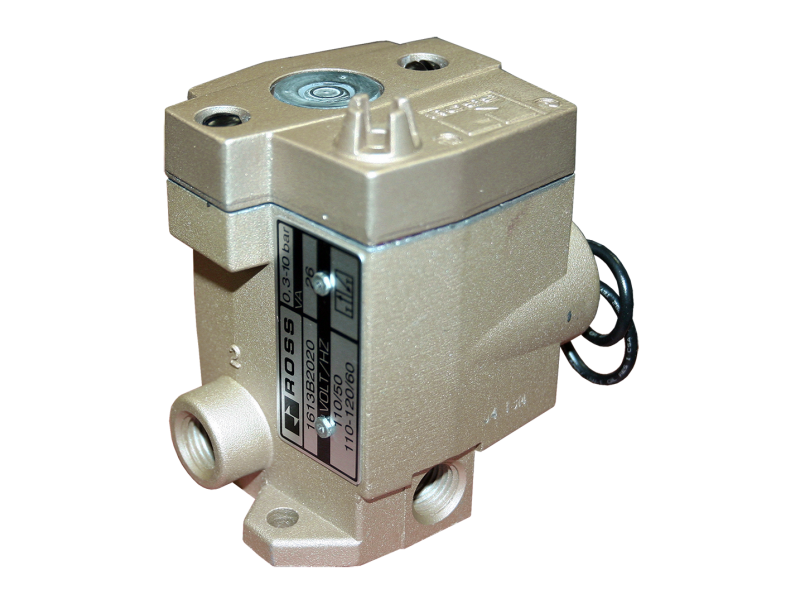

ROSS EUROPA W1613B2020 3/2-way n.c. ; 1613B2020W
16 Series, 3/2-Way, Single Solenoid Valve, Normally Closed, Port (In) 1/8" NPT, Port (Out) 1/8" NPT, 24 VDC; 1613B2020W Poppet construction for near zero...
Price on request
16 Series, 3/2-Way, Single Solenoid Valve, Normally Closed, Port (In) 1/8" NPT, Port (Out) 1/8" NPT, 24 VDC; 1613B2020W
- Poppet construction for near zero leakage & high dirt tolerance
- Self-cleaning
- Wear compensating
- Repeatability throughout the life of the valve
- 3-way 2-position Normally Closed or Normally Open, and 4-way 2-position valves
- Inline or manifold mounting
| Valve Type | Directional Control |
| Series | 16 |
| Application | General |
| Actuation | Electrical |
| Function | 3/2 Single Solenoid |
| Default Position | Normally Closed |
| Return | Spring |
| Thread Type | NPT |
| Inlet Pipe Size | 1/8" |
| Outlet Pipe Size | 1/8" |
| Construction | Poppet |
| Mounting | Inline |
| Connection | Hardwired |
| Manual Override | Non-locking |
| Avg Cv | 0.3 |
| Voltage | 24 VDC |
| Duty Rating | Continuous Duty |
| Power Consumption | 14 watts |
| Ambient Temperature | 40 to 120 F (4 to 50 C) |
| Ambient Temperature (Celcius) | 4 to 50 |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Media Temperature (Celcius) | 4 to 80 |
| Fluid Media | Filtered air |
| Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
| Operating Pressure (bar) | 0.3 to 10 |
| Length | 2.58 in (66 mm) |
| Length (mm) | 66 |
| Width | 2.88 in (73 mm) |
| Width (mm) | 73 |
| Height | 3.73 in (95 mm) |
| Height (mm) | 95 |
| Weight | 1.4 lb (0.6 kg) |
| Weight (kg) | 0.6 |
| Valve Body Material | Cast Aluminum |
| Poppet/Spool Material | Acetal |
| Seal Material | Buna-N |
-
Directional Control Compact Valves 16 Series ROSS-Compact-16 EN
