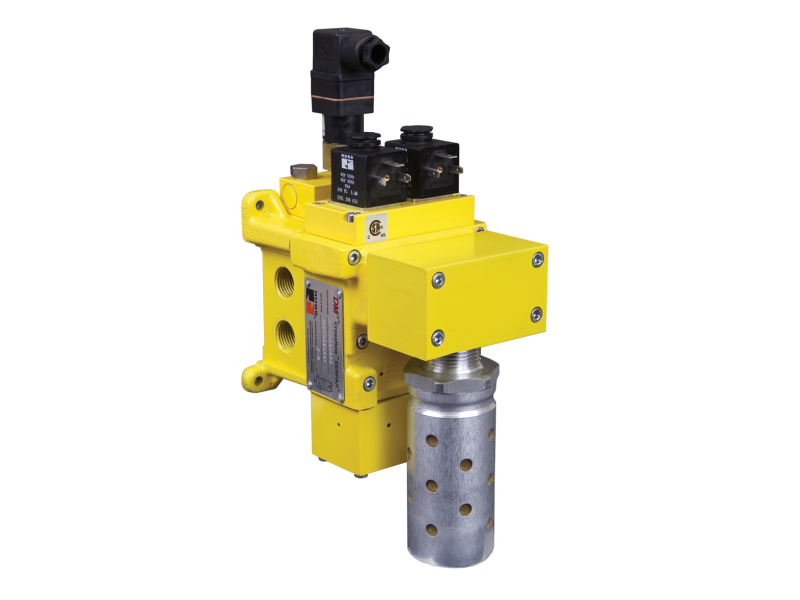

ROSS EUROPA DM series C 3/2 Press Double Valve ; DM1CNA42A31005
Rapid response time to minimize stopping time Status indicator switch for valve condition (ready to run) feedback Self-contained dinamic monitoring system requires...
Price on request
- Rapid response time to minimize stopping time
- Status indicator switch for valve condition (ready to run) feedback
- Self-contained dinamic monitoring system requires no additional valve monitoring controls
- Highly contaminant tolerant poppet construction
- Base mounted
See the documentation for more details
| Series | DMC1 Series |
| Valve Function | Redundant 3/2 Single Solenoid |
| Construction | Dual Poppet |
| Actuation | Electrical |
| Soft Start | Not Included |
| Lockout | Not Included |
| Monitoring | Internal |
| Feedback | Mechanical Pressure Switch |
| Reset | Automatic |
| Voltage | 24 VDC |
| Thread Type | NPT |
| Inlet Size | 1/2" |
| Outlet Size | 1/2" |
| Exhaust Size | 1" |
| Basic Size | 4 |
| Ports 1-2 Flow | 3 Cv (29952 Nl/min) |
| Ports 2-3 Flow | 6.5 Cv (64896 Nl/min) |
| Feedback Rating | Contacts - 0.1 A, 125/250 volts AC; 0.1 A, 30 volts DC; 0.3 A, 60 volts DC |
| Power Consumption | 5.8 watts nominal, 6.5 watts maximum |
| Solenoid Connection | EN 175301-803 Form A |
| Feedback Connection | EN 175301-803 Form A |
| Operating Pressure Max | 150 psig (10.3 bar) |
| Pilot Supply | Internal |
| Height | 12.0 in (304.8 mm) |
| Length | 4.50 in (114.3 mm) |
| Width | 6.33 in (160.8 mm) |
| Weight | 5.9 lb (2.6 kg) |
| Mounting | Base Mount |
| Ambient Temperature | 15 to 122 F (-10 to 50 C) |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Flow Media | Filtered, lubricated or unlubricated (mineral oils according to DIN 51519, viscosity classes 32-46) |
| Valve Body Material | Cast Aluminum |
| Poppet/Spool Material | Acetal and Stainless Steel |
| Seal Material | Buna-N |
| Safety Category | Category 4 |
| PL Rating | PL e |
| Safety Integrity Level | SIL 3 |
| DGUV Certification | Yes |
| CE Certification | Yes |
| EAC Declaration | Yes |
| CSA/UL Certification | Yes |
-
NPS052 DM1C
-
ROSS DM Series C Double Valves Operating Instructions RC-DMC-OI
-
ROSS DM1 Series C Double Valves Installation Instructions SS306.pdf
-
Safe Exhaust Double Valves DM1 Series C ROSS-DM1C EN
