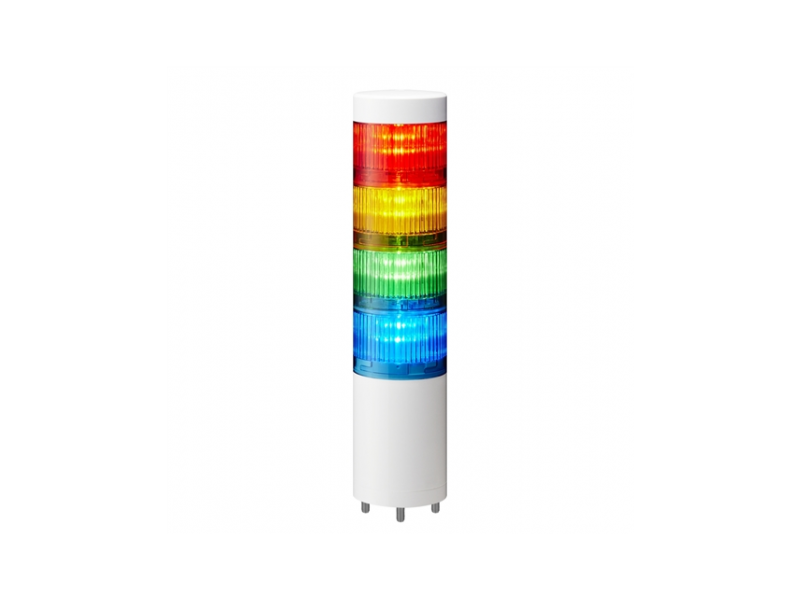

Patlite Signalni toranj LR6, Φ60, 4 nivoa (RYGB) , 24VDC; LR6-402WJNW-RYGB
60mm 4-tier, UL CE IP65 DC 24V, Direct Mount with Cable, No Flashing/Buzzer, Off-white Re-designed lens and improved module construction delivering bright, even...
60mm 4-tier, UL CE IP65 DC 24V, Direct Mount with Cable, No Flashing/Buzzer, Off-white
- Re-designed lens and improved module construction delivering bright, even light for visibility from further distances. (2000mcd output)
- A sleek, smooth form factor and a rugged body construction for performance in harsh environments, carrying an IP65 protection rating.
- A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules.
|
Dimension |
60mm diameter |
|
Rated Voltage |
24V DC |
|
Number of LED Tiers |
4 |
|
LED Colors |
Red / Amber / Green / Blue |
|
Buzzer |
Typ. 88dB |
|
Flashing Rate (with buzzer/flash module only) |
60±2 Flashes per minute |
|
Unit Weight |
0.46kg |
|
Body Color |
Off-white |
|
Body/Lens Material |
PC |
|
Connection |
Cable (1000mm) |
|
Input Type |
PNP/NPN |
|
Mounting Style |
Direct Mount |
|
Mounting Location |
Indoors |
|
Mounting Direction |
Upright |
|
Protection Rating |
IP65 / NEMA TYPE 4X, 13 |
|
Operating Ambient Temp. |
-20℃ to +50℃ |
|
Operating Ambient Humidity |
Less than 90% RH (No Condensation) |
|
Storage Ambient Temp. |
-30℃ to +60℃ |
|
Storage Ambient Humidity |
Less than 90% RH (No Condensation) |
|
Insulation Resistance |
More than 1MΩ at 500V DC between live part and non-current carrying metallic part |
|
Withstand Voltage |
1500V AC applied for 1 minute between live part and non-current carrying metallic part without breaking insulation |
|
Conformity Standards |
- UL 508, CSA-C22.2 No.14 - EMC Directive (EN 61000-6-4, EN 61000-6-2) - RoHS Directive (EN IEC 63000) - FCC Part 15 Subpart B Class A - KC (KN 61000-6-4, KN 61000-6-2) |
-
LR Specifications 24V DC Type (En) (3)
-
LR Specifications LED Unit (En)
