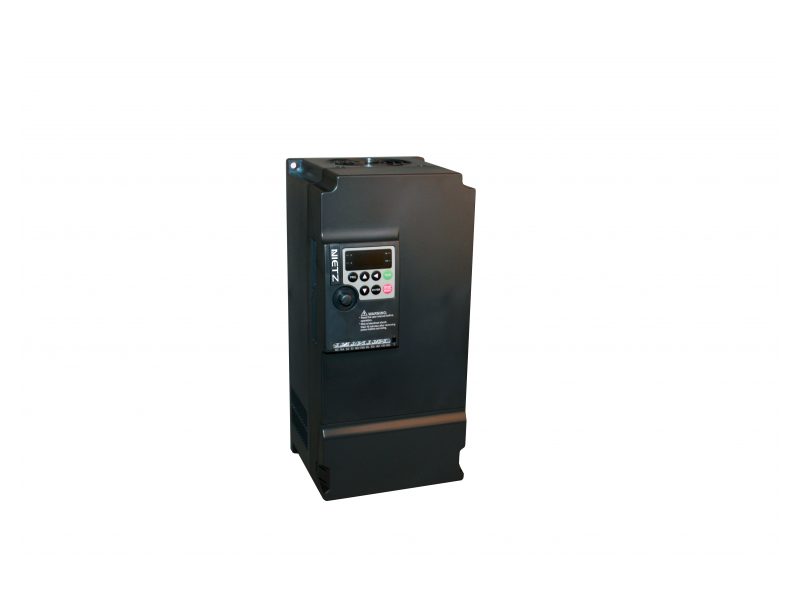

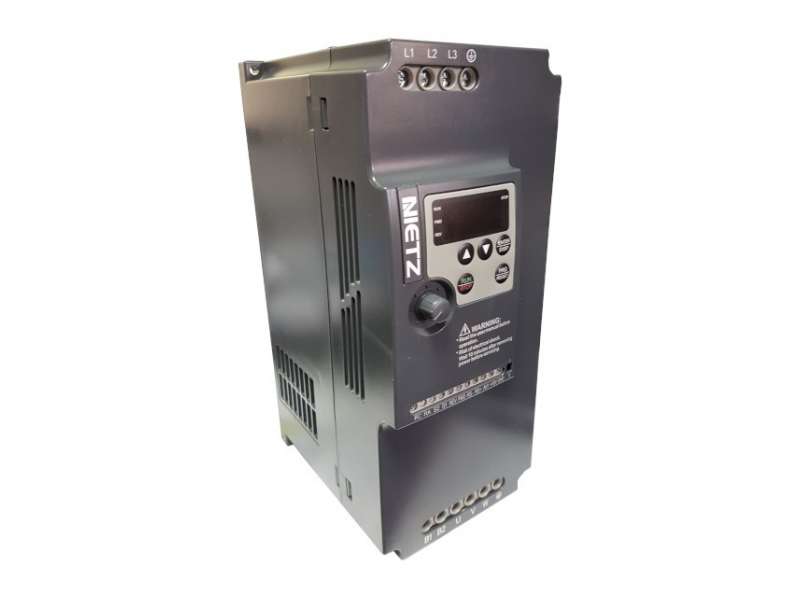

NIETZ NL1000 ; VFD 7.5kW Three Phase Input

7.5kW , 17.5A , three phase input variable frequency drive Micro drive ; Low cost Adjustable V/f control, Built-in PID control, output frequency range 0.1-400Hz...

Brand: NIETZ
Product Code: NL1000-07R5G4
Availability: Check availability
VAT-exclusive price: 31.577,96
VAT-inclusive price: 37.893,55
7.5kW , 17.5A , three phase input variable frequency drive

Micro drive ; Low cost
Adjustable V/f control, Built-in PID control, output frequency range 0.1-400Hz
Compact size, spave saving
DIN rail mounting and wall mounting
Easy wiring, terminals uncovered
Standard communication protocol, Modbus RTU , RS 485

Available products
For 230V input voltage 0.4-2.2 kW
For 400V input voltage 0.75-110kW
items Specification

Control Specifications

Output Frequency Range 0,1Hz~400.00Hz
Frequency Setting Resolution Digital input: 0,1Hz, analog input: 0,1% of maxium output frequency
Output Frequency Accuracy 0,1Hz
V/F Control Setting V/F curve to satisfy various load requrements.
Torque Control Auto increase: auto raise torque by loading condition; Manual increase; enable to set 0,2~20,0% of raising torque
Multifunctional Input Terminal Four multi-function input terminalsm realizing function including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions.
Multifunctional Output Terminal 1 multi-function output terminals for displaying of running, zerospeed, conter, external abnormity, program operation and other information and warnings.
Accleration/ deceleration Time Setting 0~999,9s acceleration/deceleration time can be set individually.
Other functions PID Control Built-in PID control
RS485 Standard RS485 comunication function (MODBUS)
Frequency setting Analog input:0 to 10V, 4 to 20mA CAN BE SELECTED; Digital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN
Note: AV1 terminals can be used to select an analog voltage inut (0-10V) and an analog current input (4-20mA)through the switch J2.
Multi-speed Four multifunction input terminals, 15 section speed can be set.
Automatic voltage regulation Automatic voltage regulation function can be selected.
Counter Built-in 2 group of counters
Protection/Warning Function Overload 150%, 60 second (Constant torque)
Over Voltage Over Voltage Protectation can be set.
Under Voltage Under Voltage protection can be set.
Other Protections Output shortcircuit, over current, an parameter lock and so on
Environment Ambient Temperature “-10°C to 40°C” (non-freezng)
Ambient Humidity Max. 95% (non-condensing)
Altitude Lower than 1000m
Vibration Max. 0,5G
Structure Cooling Mode Forced air cooling
Protective Structure IP 20
Installation Wall-mounted or standard 35MM rail mounting

  • NL1000- user manual Eng 2016-01

    NL1000- user manual Eng 2016-01
