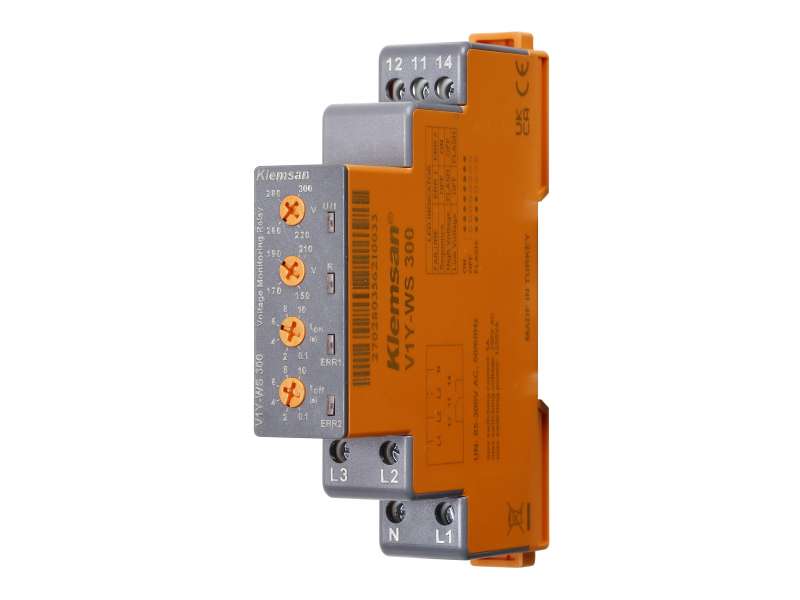

Klemsan Voltage monitoring relay V1Y-WS 300, 3Ø with neutral; 270280
Klemsan Voltage monitoring relay V1Y-WS 300, 3Ø with neutral; 270280 Star connection, over & under voltage-seperate trimpots / Sequence / Phase Loss,...
VAT-exclusive price: 3.860,83 |
VAT-inclusive price: 4.633,00 |
Klemsan Voltage monitoring relay V1Y-WS 300, 3Ø with neutral; 270280
Star connection, over & under voltage-seperate trimpots / Sequence / Phase Loss, 230V Un, 1 From C
Star connection, over & under voltage-seperate trimpots / Sequence / Phase Loss, 230V Un, 1 From C
GENERAL
Connection Type
Screw terminal
Protection Class
IP20
Weight (g)
80
Packaging Quantity
1
Case Width (mm)
18
Mounting Type
Rail Mount
Nominal Voltage
230 V
EMC-EMI
ok
Networks
3Ø with neutral
POWER SUPPLY
Voltage
85-300V LN ±20% AC
Frequency
50-60Hz
Consumption
<13VA AC
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20 to +60°C
Storage Temperature
-40°C +75°C
Relative Humidity (Non-condensing)
Max. 95% (no condensation)
BACKUP CONNECTIONS
Type
1 C/O (SPDT)
Max. Values - AC (NO side)
10A/250V; 1250 VA
Max. Values - DC (NO side)
5A/30VDC; 150W
Mechanical Operating Life
= 10^7 operations
Electrical Operating Life (NO side)
5x10^4 (5A@250VAC) 1x10^5 (5A@30VDC)
MONITORING FUNCTIONS
Phase Loss Delay Time
500 ms
Phase Sequence Delay Time
500 ms
Neutral Loss Delay Time
500 ms
Voltage Protection Upper Limit
220 - 300 VAC
Voltage Protection Lower Limit
150 - 210 VAC
Voltage Protection Delay Time
"ton= 0.1 .. 10 sn / toff: 0.1 - 10 sn"
Voltage Protection Hysteresis
3% x Un
-
Voltage Monitoring Relays 03022025-TR-EN
