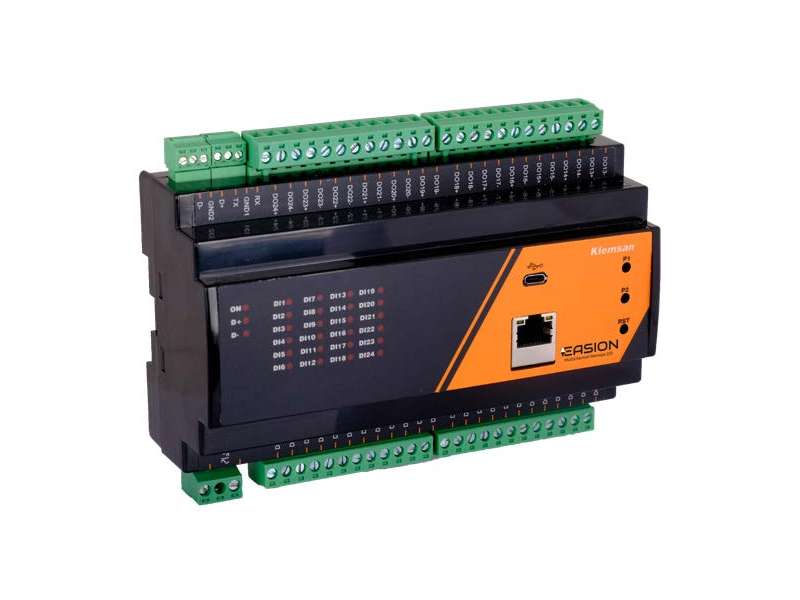

Klemsan Multi-Channel Remote I/O, MQTT, 12 DI (wet), 12 RO; 260307
Remote I/O EASION 5M-LL111, Ethernet (MQTT + HTTP REST) + USB (HTTP REST), 12DI (active) + 12 RO; 260307...
VAT-exclusive price: 39.878,05 |
VAT-inclusive price: 47.853,66 |
Remote I/O EASION 5M-LL111, Ethernet (MQTT + HTTP REST) + USB (HTTP REST), 12DI (active) + 12 RO; 260307
GENERAL
Case Width (mm)
(95mmx160mm)x58mm
Mounting Type
Rail Mount
POWER SUPPLY
Voltage
24 – 50 V AC / 12 – 50 V DC
Frequency
45-65 Hz
Consumption
<13VA AC / <7W
MECHANICAL PROPERTIES
Packaging Quantity
1
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20 to +70 °C
Storage Temperature
-20°C..+70°C
Relative Humidity (Non-condensing)
Max.95% (no condensation)
DIGITAL OUTPUT
RELAY OUTPUT
Max. Switching Current / Voltage / Power
5A / 250VAC /1250 VA
Number of Outputs
12
INPUT DRY CONTACT
INPUTS WET CONTACT
Number of Inputs
12
Input Voltage
12 - 230 V AC/DC
Input Current
1 mA at 5V AC/DC-2,5 mA at 24V AC/DC-4 mA at 230V AC/DC
Frequency
45-65 Hz
Isolation Level
5000Vrms optical insulation
COMMUNICATION RS485 (MODBUS RTU)
COMMUNICATION MICRO USB (MODBUS RTU)
COMMUNICATION HTTP REST
Interface
Micro USB
Baud Rate
38400
COMMUNICATION MODBUS TCP
Interface
✅
COMMUNICATION MQTT, HTTP REST
Interface
Ethernet 10/100 Base - TX
COMMUNICATION RS232 (MODBUS RTU)
Baud Rate
1200 .. 115200
Stop Bit
1,2
Slave ID
1 ..247
-
EASION EN 10082020
-
EASION 5M-LL111
