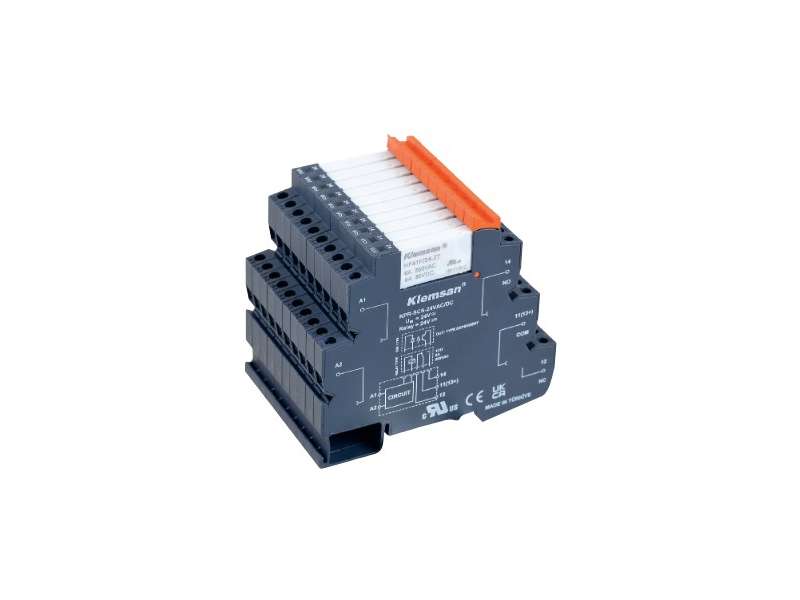

Klemsan new PLC interface relay series with new colors is an electrically operated relay series that has 6VDC input to 230V AC/DC options and provides isolation between control circuits and controlled circuits. It is designed to provide maximum efficiency for different projects thanks to its 6.2mm width and support for both electromechanical and SSR (Solid State Relay).

• • Input voltage options between 6V and 230V,
• • DC and AC supply voltage options,
• • Electromechanical and SSR support in the same enclosure
• • Saving in cable connection time with cross-connection,
• • 6A switching current under 250V AC,
• • Space saving with 6.2mm design,
• • LED status indicator to see the actual movement of the contacts,
• • Labeling with terminal block marking materials,
• • Special filter design that is not affected by voltage leaks
• • Maximum resistance to interference with Electromagnetic Compatibility (EMC) certificate,
• • Self-extinguishing plastic casing,
• • UL certification

CURRENT MEASUREMENT INPUT

MECHANICAL PROPERTIES

ENVIRONMENTAL CONDITIONS

CONNECTION INFORMATION

DIELECTRIC STRENGTH
