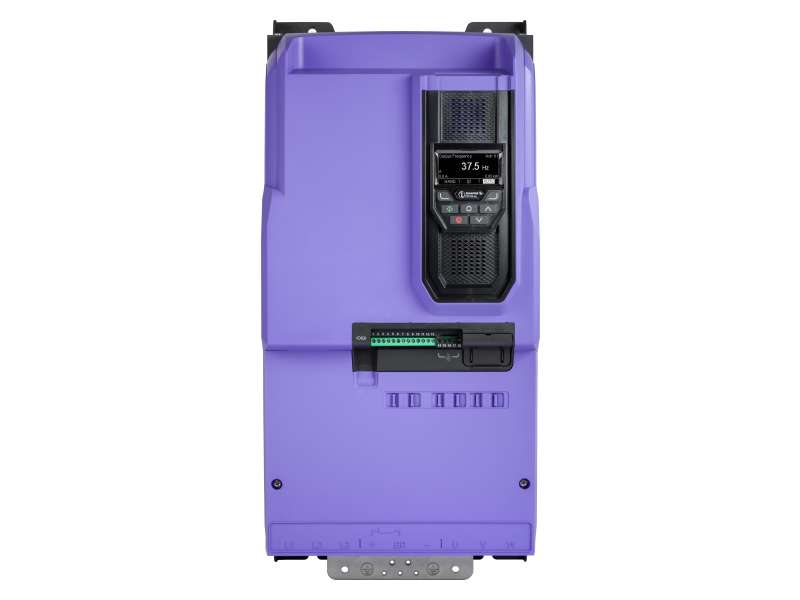

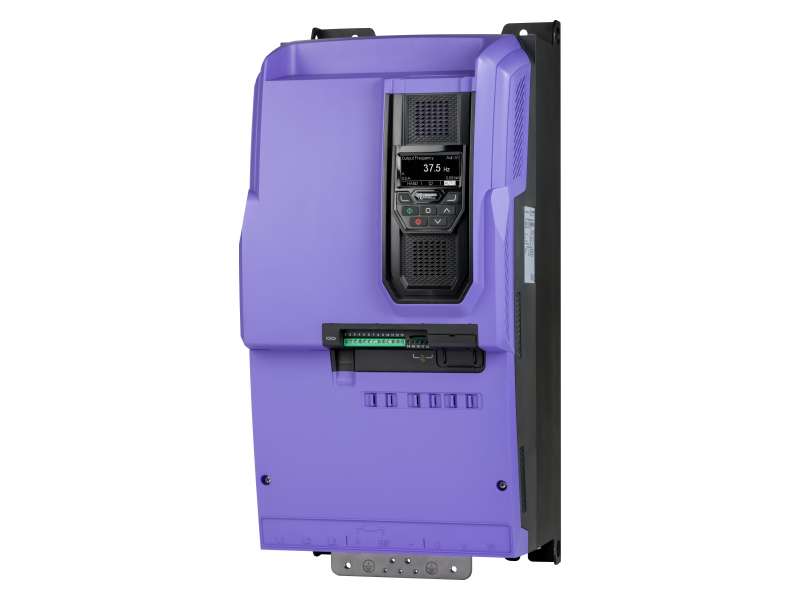

INVERTEK DRIVES Optidrive Eco, 75kW, IP20 ; ODV-3-641500-3F12-MN
Invertek Optidrive Eco , ODV-3-641500-3F12-MN , 400V 3 phase input, 400V 3 phase output, 75kW, 150A output current IP20 inverter. Dedicated centrifugal Fan &...
VAT-exclusive price: 456.834,08 |
VAT-inclusive price: 548.200,89 |
Invertek Optidrive Eco ,ODV-3-641500-3F12-MN, 400V 3 phase input, 400V 3 phase output, 75kW, 150A output current
IP20 inverter.
Dedicated centrifugal Fan & Pump inverter drive
Internal PID feedback loop for pressure / flow / level / temperature control.PLC functions
Internal EMC filter
Quadratic voltage / frequency output for maximum motor energy optimisation.
Communication options : Modbus, Bacnet
IP20 inverter.
Dedicated centrifugal Fan & Pump inverter drive
Internal PID feedback loop for pressure / flow / level / temperature control.PLC functions
Internal EMC filter
Quadratic voltage / frequency output for maximum motor energy optimisation.
Communication options : Modbus, Bacnet
| Power (kW) | 75 |
| Power (HP) | 100 |
| Input Voltage | 380-480V |
| Output Voltage | 0-input Voltage |
| Input Phases | 3 |
| Output Current | 150A |
| Input Current | 153.2A |
| Enclosure rating | IP20 |
| Width | 286mm |
| Height | 613mm |
| Depth | 320mm |
| Frame Size | 6A |
| Overload | 110% |
| Duty | Normal |
| Dynamic Braking | No |
| Weight | 32kg |
| Control Type | ECO Vector |
| Input Frequency | 48-62Hz |
| Output Frequency | 0-500Hz |
| Max Temperature | 40 ͦC |
| Digital Inputs | 5 |
| Digital Outputs | 2 |
| Analogue Inputs/Ps | 2 |
| Analogue Outputs/Ps | 2 |
| Output relay(s) | 2 |
| Serial Comms | Modbus, Bacnet |
| Approvals | UL. cUL, C- Tick, Gost R, ROHS |
-
GB Optidrive ECO User Guide
