Name: INVERTEK DRIVES EMC filter 10A monofazni IP20 ; OPT-2-E1010-20
Brand: INVERTEK DRIVES
SKU: OPT-2-E1010-20
Price: 23552.97 RSD
Availability: OutOfStock

0 Compare products

0 View cart

011 257 1922

INVERTEK DRIVES EMC filter 10A monofazni IP20 ; OPT-2-E1010-20

INVERTEK DRIVES EMC filter 10A monofazni IP20 ; OPT-2-E1010-20 - slika 1

INVERTEK DRIVES EMC filter 10A monofazni IP20 ; OPT-2-E1010-20 - slika 2

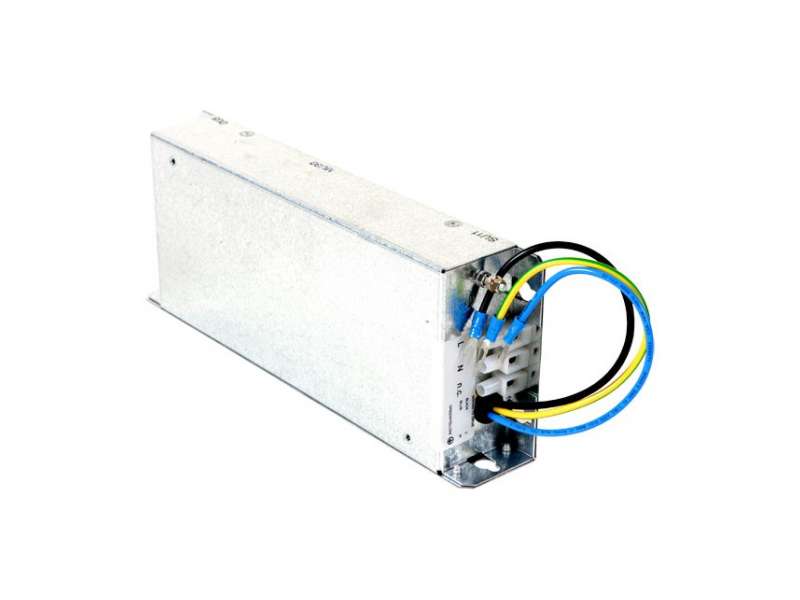

INVERTEK DRIVES EMC filter 10A monofazni IP20 ; OPT-2-E1010-20

Improve Electromagnetic Compatibility Compliant with the latest European and international standards EMC filters reduce the transfer of electromagnetic noise between...

Brand: INVERTEK DRIVES
Product Code: OPT-2-E1010-20
Availability: Check availability

VAT-exclusive price: 19.627,48

VAT-inclusive price: 23.552,97

Qnt:

Improve Electromagnetic Compatibility
Compliant with the latest European and international standards

EMC filters reduce the transfer of electromagnetic noise between the drive and mains power supply. All Optidrives are fitted as standard with an internal EMC filter, except where specified by the customer, and for most industrial applications, this will be sufficient. In the event that a higher level of filtering is desired or required, the external EMC filter can be added to either a drive which already has the internal EMC filter, or a drive without EMC filter. Best performance is achieved by using a filtered drive and the appropriate external EMC filter.

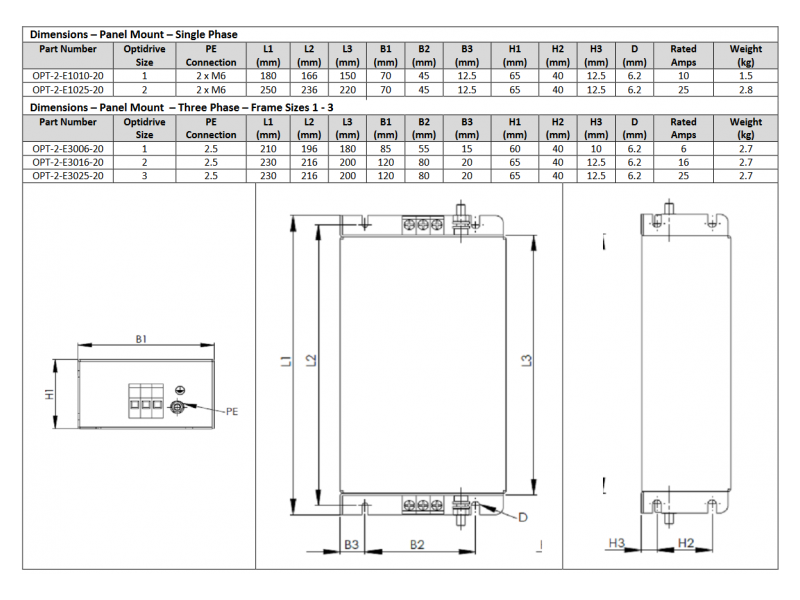

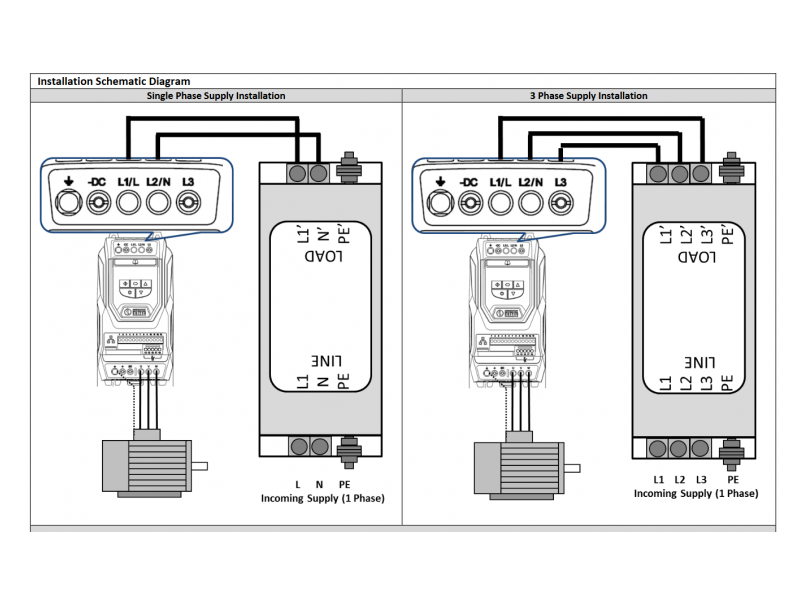

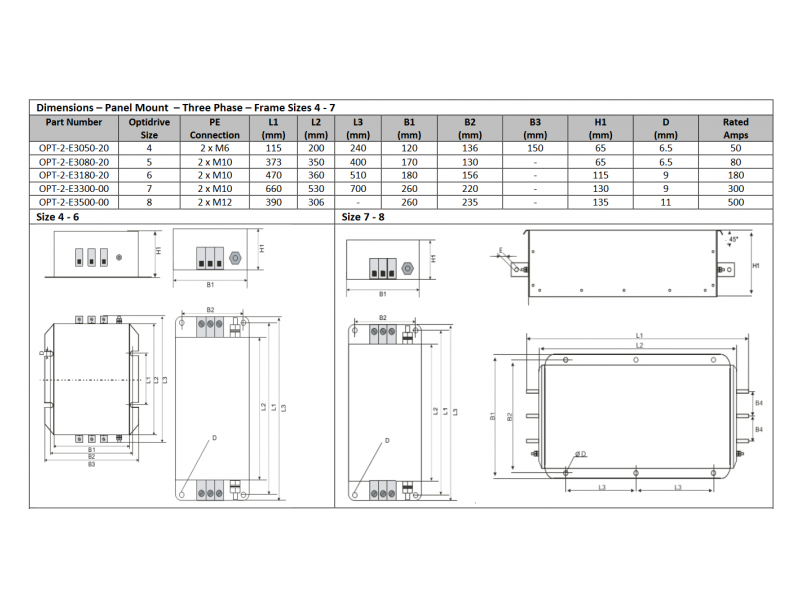

Dimensions, schematic diagram and technical data in documentation.

Electrical Specification – Single Phase					Electrical Specification – Three Phase
Voltage Range	200 – 250 VAC				Voltage Range		380 – 480 VAC
Frequency Range	48 – 62Hz				Frequency Range		48 – 62Hz
Leakage Current	OPT-2-E1010-00		< 5mA		Leakage Current		OPT-2-E3006-00		< 10mA
	OPT-2-E1025-00		< 5mA				OPT-2-E3016-00		< 35mA
							OPT-2-E3025-00		< 35mA
							OPT-2-E3050-20		< 180mA
							OPT-2-E3080-20		< 200mA
							OPT-2-E3180-20		< 220mA
							OPT-2-E3300-00		< 260mA
							OPT-2-E3500-00		< 100mA

Drive & Filter Compatibility
The following table shows the EMC filter to be used with each respective drive rating.
1 Phase Input, 230 Volt AC Supply, Drive fitted with internal EMC Filter
Frame Size	kW	HP	EMC Filter Model Code	Optidrive E2		Optidrive P2		Optidrive Eco		Optidrive Elevator
1	0.37	0.5	OPT-2-E1010-xx	ü		ü		ü
	0.75	1	OPT-2-E1025-xx	ü		ü		ü
	1.5	2	OPT-2-E1025-xx	ü		ü		ü
2	1.5	2	OPT-2-E1025-xx	ü		ü		ü
	2.2	3	OPT-2-E1025-xx	ü		ü		ü
3 Phase Input, 400 Volt AC Supply, Drive fitted with internal EMC Filter
Frame Size	kW	HP	EMC Filter Model Code	Optidrive E2		Optidrive P2		Optidrive Eco		Optidrive Elevator
1	0.75	1	OPT-2-E3006-xx	ü
	1.5	2	OPT-2-E3006-xx	ü
2	1.5	2	OPT-2-E3006-xx	ü		ü		ü		ü
	2.2	3	OPT-2-E3016-xx	ü		ü		ü		ü
	4	5	OPT-2-E3016-xx	ü		ü		ü		ü
3	5.5	7.5	OPT-2-E3016-xx	ü		ü		ü		ü
	7.5	10	OPT-2-E3025-xx	ü		ü		ü		ü
	11	15	OPT-2-E3025-xx	ü		ü		ü		ü
4	11	15	OPT-2-E3025-xx			ü		ü		ü
	15	20	OPT-2-E3050-20			ü		ü		ü
	18.5	25	OPT-2-E3050-20			ü		ü		ü
	22	30	OPT-2-E3050-20			ü		ü		ü
5	30	40	OPT-2-E3080-20			ü		ü		ü
	37	50	OPT-2-E3080-20			ü		ü		ü
	45	60	OPT-2-E3180-20					ü
6	45	60	OPT-2-E3180-20			ü
	55	75	OPT-2-E3180-20			ü		ü
	75	100	OPT-2-E3180-20			ü		ü
	90	120	OPT-2-E3180-20			ü		ü
7	110	150	OPT-2-E3300-00			ü		ü
	132	175	OPT-2-E3300-00			ü		ü
	160	250	OPT-2-E3300-00			ü		ü
8	200	300	OPT-2-E3500-00			ü		ü
	250	350	OPT-2-E3500-00			ü		ü
