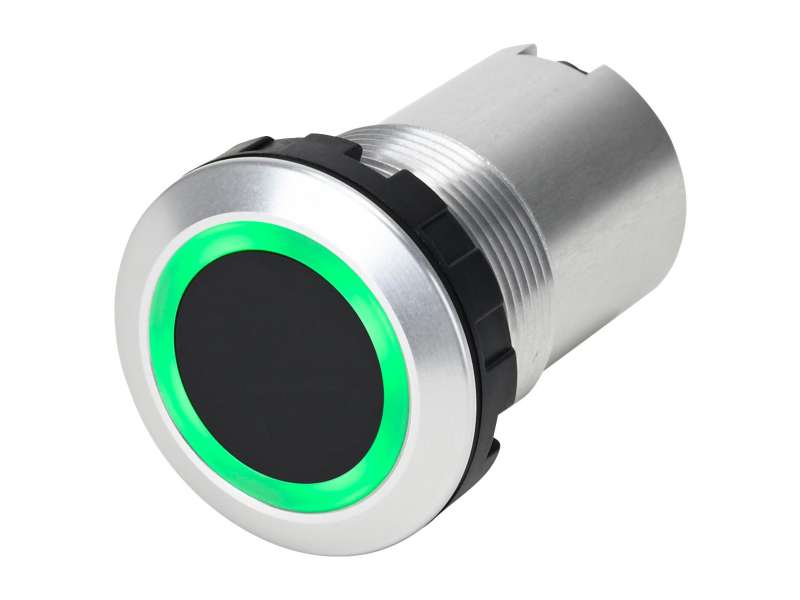

Key Features

• Degree of protection: IP65/67 suitable for outdoor use

  UL Type 4X (Outdoor) approved.
  Features weather-resistant material.

• Output and standby status feedback by LED illumination in two colors that can be externally controlled.

• Standard model (diffuse-reflective)

  Near-infrared reflectance. Hand detection distance adjustable from approx. 70 to 270mm. (*1)

  *Sensing object: Human hand. See catalog page 6 for "Detection distance range by object" for objects other than hands. Sensitivity control available for standard models only)

• Short range detection model*
  (convergent reflective)

  Emits and receives light at an angle. Detects objects only within a specific distance range
  Sensing range approx. 5 to 30mm.
  *Available soon

• Models with time delay available to prevent malfunction. (*PNP models only)

• Application examples: Public areas where unspecified number of people touch the same surface, Locations requiring weather resistance and durability, Locations requiring hygiene measures, Frequently operated equipment
