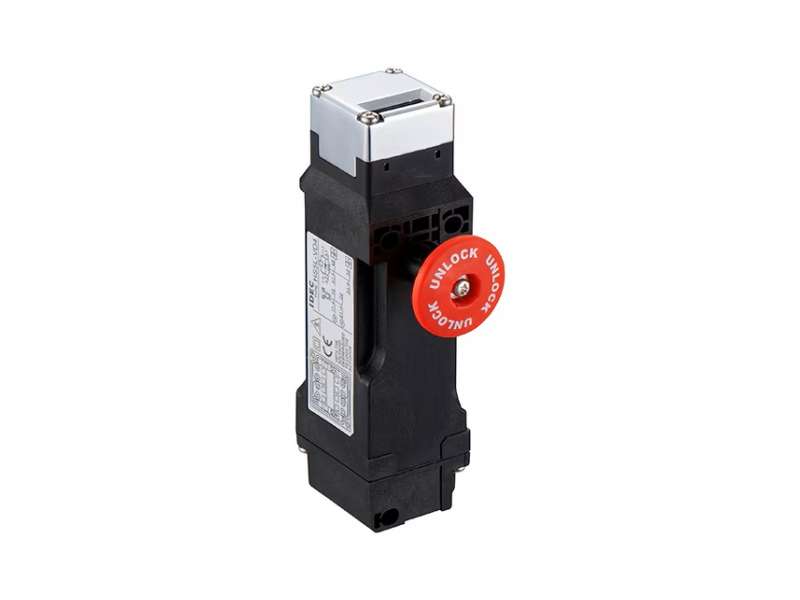

IDEC HS5L Miniature Locking, Interlck 4Cnt RearUnlk SprgLck; HS5L-VD44LM-G
HS5L Miniature Locking, Interlck 4Cnt RearUnlk SprgLck, 2NC Door 2NC Lock Monitor circuits; HS5L-VD44LM-G...
VAT-exclusive price: 24.061,56 |
VAT-inclusive price: 28.873,87 |
HS5L Miniature Locking, Interlck 4Cnt RearUnlk SprgLck, 2NC Door 2NC Lock Monitor circuits; HS5L-VD44LM-G
- 4 contacts, 2NC Door 2NC Lock Monitor circuits, Spring lock, Rear Unlocking button
- Compact body: 35x40x127mm
- 1400N Locking Strength
- Gold-plated contacts suitable for small loads
- The head orientation can be rotated
- allowing 8 differentactuator entries
- Applicable Standards: EN ISO14119
- GS-ET-19 (TUV approval)
- EN60947-5-1 (TUV approval)
- UL508 (UL Listing)
- CSA C22.2 No. 14 (c-UL listed)
- IEC60204-1/EN60204-1
Mechanical Specifications
| Conduit Opening | M20 |
| Conduit size | M20 |
| Actuator tensile strength at the time of the lock | More than 1400N (GS-ET-19) |
| Lock Mechanism 1 | Spring Lock |
| Main Contact | 4 contact |
| Product Type | Safety Interlock |
Functional Specifications
| Indicator Light | Yes (green) |
Environmental Specifications
| Degree of Protection | IP67 |
-
SAPEN01A-E031E054-HS5L
-
IDEC-HS5-Series-Spring-Loaded-Actuator-for-HS5E-5L-Instruction-Sheet
-
IDEC-HS5-Series-Rear-Unlocking-Button-for-Frames-Instruction-Sheet
