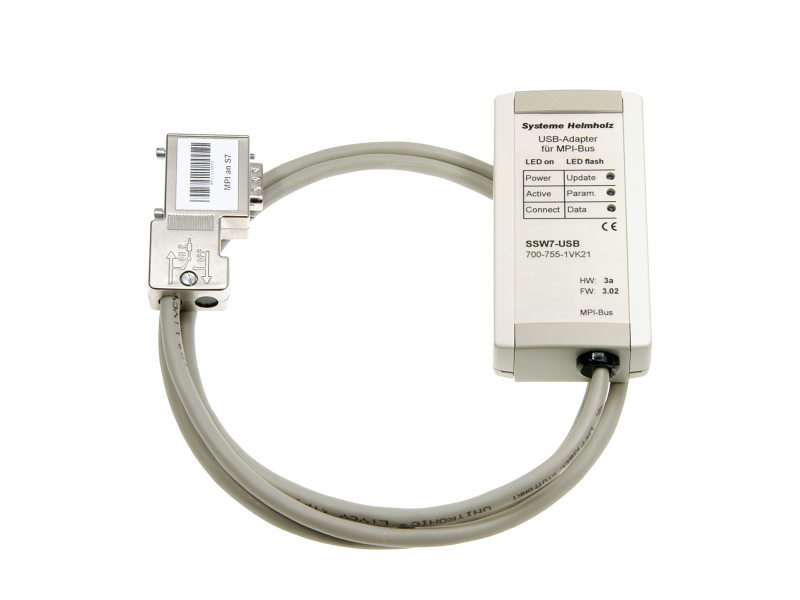

Helmholz SSW7-USB, MPI programming adapter USB, incl. 3 m USB cable, CD with software, manual
The SSW7 has a 1.2 m long MPI connecting cable which can be plugged directly into the CPU socket of the automation device and into any other point in an MPI network....
Out of stock
The SSW7 has a 1.2 m long MPI connecting cable which can be plugged directly into the CPU socket of the automation device and into any other point in an MPI network.
In the housing of the SSW7-USB, there is a USB socket of type “B”. The SSW7-USB can be connected to the PC with the USB cable included in the scope of delivery. The SSW7-USB receives its voltage supply from the PC. It can therefore be used at any point on the MPI bus.
A driver for creating a virtual COM port is included.
Parameterization and diagnostic functions are possible using the SHTools software.
For a firmware update, a free download of the latest SHTools version is available.
- Programming & visualization via USB
- MPI up to 187.5 kbps
- Power supply via USB
- Virtual COM port for flexible applications
| General information | ||
|---|---|---|
| Order number | 700-755-1VK21 | |
| Article name | SSW7-USB, MPI programming adapter USB | |
| Scope of delivery | SSW7-USB, 3 m USB cable, manual, CD with software | |
| Dimensions (DxWxH) | 105 x 53 x 29 mm | |
| Weight | approx. 180 g | |
| Supply voltage | 5V via USB | |
| Current draw | approx. 150 mA | |
| MPI interface | ||
| Type | RS485 | |
| Transmission rate | 19,2 or 187,5 kbps | |
| Connection | SUB-D, 9 pin | |
| Communication interface | ||
| Type | USB 1.1 | |
| Protocol | PC <-> S7 | |
| Connection | USB-B socket | |
| Protection rating | IP 20 | |
