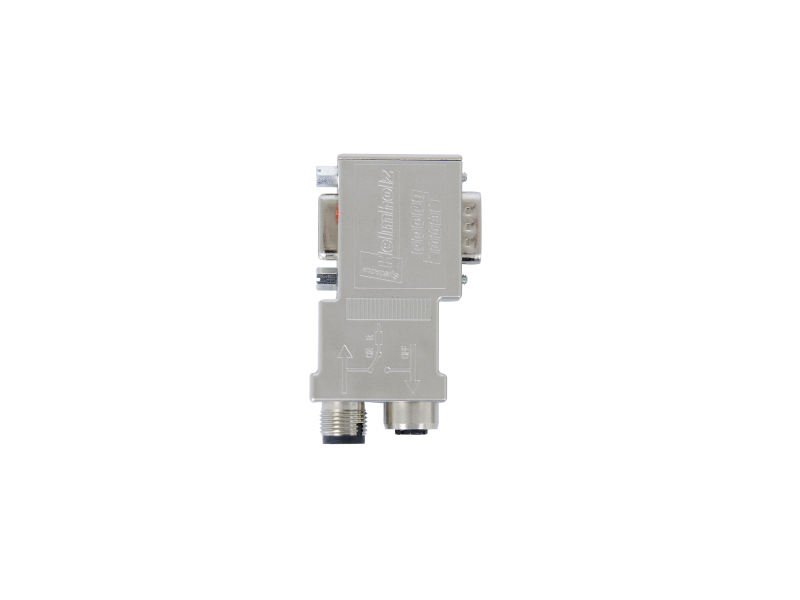

Helmholz PROFIBUS connector, 90° M12, with PG interface
Through the use of pre-assembled system cables, connection errors are excluded. Installation costs are reduced to a minimum. The connector has two M12 connections...
VAT-exclusive price: 5.496,16 |
VAT-inclusive price: 6.595,40 |
Through the use of pre-assembled system cables, connection errors are excluded. Installation costs are reduced to a minimum.
The connector has two M12 connections and integrated terminating resistors. For improved electromagnetic compatibility, the housing is metalized.
The PROFIBUS connector works in the extended ambient temperature range of -25 °C to +85 °C.
Additional participants can be connected via the integrated PG interface.
- Metalized housing
- No parts that can be lost
- Integrated switchable terminating resistor
- 90° cable outlet
- Proven screw terminal
- The PROFIBUS connectors are also available in packs of 10 or 50
- The maximum ambient temperature for UL is +60 °C.
- Integrated PG interface
| General information | ||
|---|---|---|
| Order number | 700-974-0BB12 | |
| Article name | PROFIBUS connector, 90° M12, with PG | |
| Scope of delivery | PROFIBUS connector, installation instructions | |
| Dimensions (DxWxH) | 70 x 41 x 17 mm | |
| Weight | Approx. 60 g | |
| Cable outlet | Vertical cable outlet | |
| PROFIBUS interface | ||
| Number | 1 | |
| Transmission rate | max. 12 Mbps | |
| Connection | SUB-D connector, 9-pin | |
| Terminating resistor | Resistor combination integrated and switchable using slide switch | |
| PG connection socket | yes, SUB-D, 9-pin | |
| Connector type | M12 | |
| Voltage supply | +4.75 … +5.25 V DC (must come from the device) | |
| Current draw | Max. 12.5 mA | |
| Ambient conditions | ||
| Ambient temperature | -25 °C … +85 °C( The maximum ambient temperature for UL is +60 °C.) | |
| Transport and storage temperature | -25 °C … +85 °C | |
| Relative air humidity | 70 % at +25 °C | |
| Pollution degree | 2 | |
| Protection rating | IP20 | |
| Certifications | CE, UL | |
| CE | ||
| RoHS | Yes | |
| REACH | Yes | |
