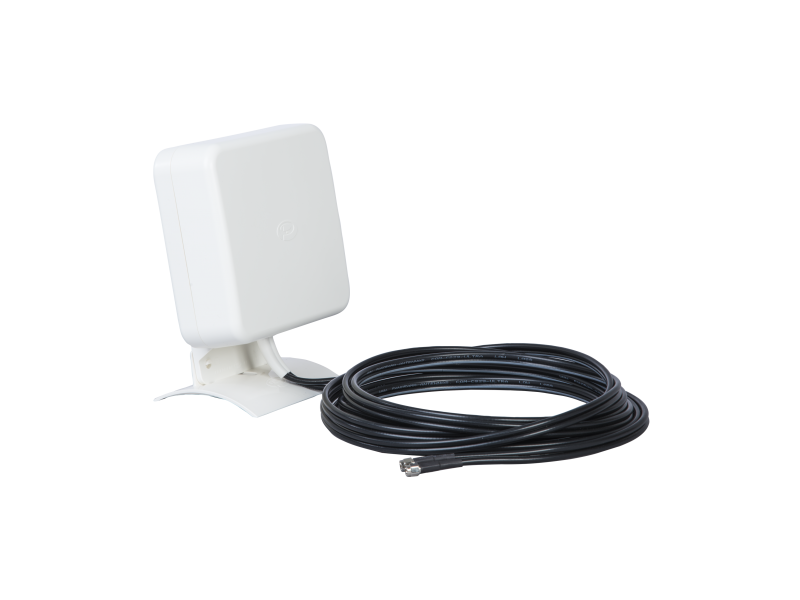

Helmholz MiMo wall antenna, GSM/UMTS/LTE, 4 dBi, incl. 2 x 5 m cable, SMA male connectors; 700-751-ANT35
For radio reception, a suitable antenna must at least be screwed onto the SMA socket "MAIN" (ANT 2). In order to improve the 4G data throughput, a second...
Out of stock
For radio reception, a suitable antenna must at least be screwed onto the SMA socket "MAIN" (ANT 2). In order to improve the 4G data throughput, a second antenna terminal is available on the REX 100 LTE router with the SMA socket "Rx" (ANT1). If you would only like to install one antenna, we recommend the MiMo wall antenna, as it already contains two antennas in one housing.
Our technical sales is happy to answer any questions you may have regarding the various antennas.
- Gain 4 dBi
- 2 x 5 m Cable length
- SMA male connector
| General information | ||
|---|---|---|
| Order number | 700-751-ANT35 | |
| Article name | MiMo wall antenna, GSM/UMTS/LTE, 4 dBi, 2x 5 m cable, SMA male connectors | |
| Scope of delivery | MiMo wall antenna, incl. cable | |
| Radio networks | LTE 800 | GSM 900 | GSM 1800, UMTS | LTE 2600 | |
| Frequency range | 800–960 MHz | 1710–2500 MHz | 2500–2700 MHz | |
| Radiation pattern | Omni-directional | |
| Gain | 2 dBi | 5 dBi | 4 dBi | |
| VSWR | < 2 : 1 | |
| Max. input power | 20 W | |
| Impedance | 50 Ω | |
| Cable length | 5 m; CS29 Coax | |
| Connector type | 2x SMA (m) | |
| Antenna | 155 mm | |
| Height | 186 mm | |
