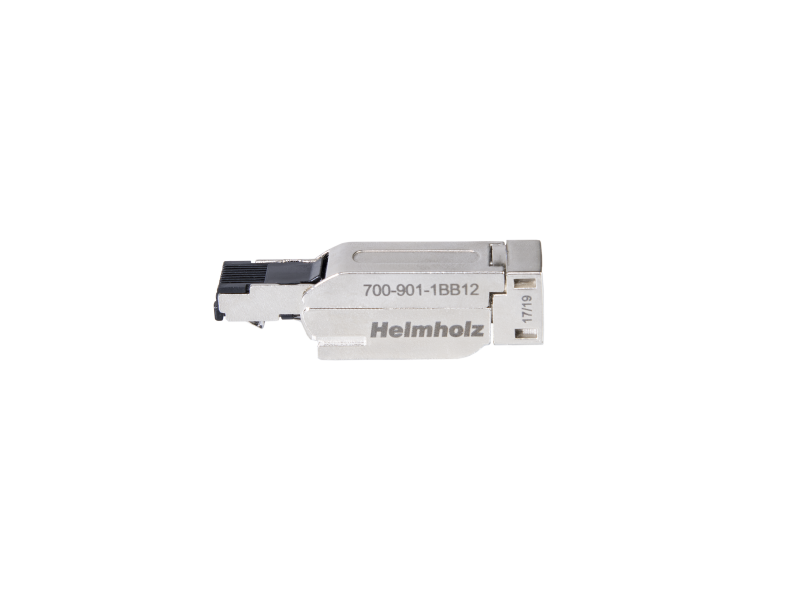

Helmholz Industrial Ethernet connector, RJ45, EasyConnect®, 180°, incl. Instructions
The Ethernet connectors are also available in packs of 10 pieces. The industrial-grade metal housing provides the necessary ruggedness so that the plug can be used...
Out of stock
| The Ethernet connectors are also available in packs of 10 pieces. |
The industrial-grade metal housing provides the necessary ruggedness so that the plug can be used in many industrial applications.
To save the user time in wiring, the RJ45 connector can be assembled in a single step using the fast connection technology EasyConnect®. Solid single wires and strands can be used. The color-coded contact elements also help avoid connection errors. In addition, the RJ45 connectors are designed in protection class IP20 and for transmission rates up to 1000 Mbps.
- Color-coded contact elements help to avoid connection errors
- Transmission rates up to 1000 Mbps
- Tool-free installation
- EasyConnect® RJ45 connection (IDC) for industrial applications
- 180° axial cable outlet
| General information | ||
|---|---|---|
| Order number | 700-901-1BB12 | |
| Article name | Industrial ethernet connector, RJ45, EasyConnect®, 180° | |
| Scope of delivery | Industrial ethernet connector, installation instructions | |
| Dimensions (DxWxH) | 14 x 16 x 56 mm | |
| Weight | Approx. 30 g | |
| PROFINET interface | ||
| Number | 1 | |
| Physical layer | Ethernet | |
| Transmission rate | 10/100/1000 Mbps | |
| Connection | RJ45 connector | |
| Connectors | ||
| Cable outlet | 180° | |
| Connector type | EasyConnect® | |
| Connectible cables | Industrial ethernet cable 8 pin | |
| Cable cross-section | 8 x 24 AWG | |
| Maximum outside diameter | 8 mm | |
| Ambient conditions | ||
| Ambient temperature | -20°C ... +70°C | |
| Transport and storage temperature | -40 °C … +80 °C | |
| Relative air humidity | 95 % r H without condensation | |
| Pollution degree | 2 | |
| Protection rating | IP20 | |
| Certifications | CE | |
| CE | ||
| RoHS | Yes | |
| REACH | Yes | |
