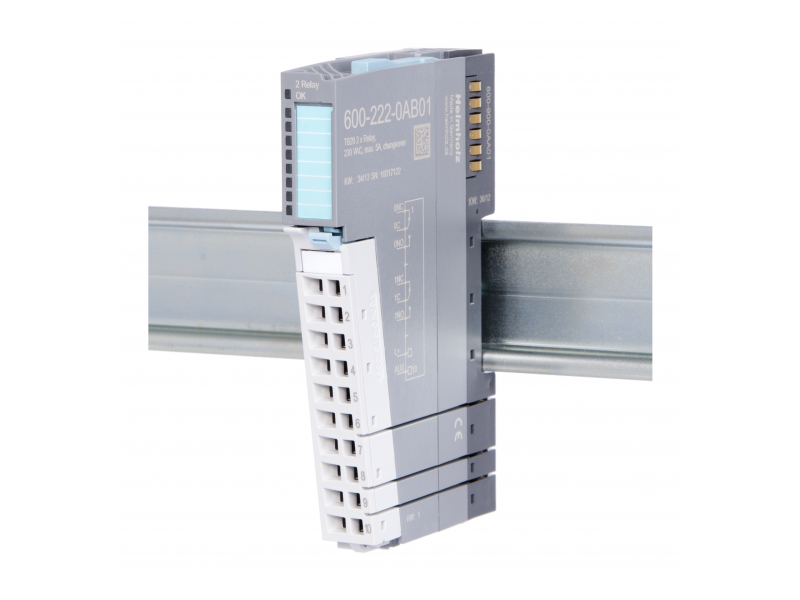

Helmholz Digital output module – DO 2 x relays, 5 A, AC 230 V, changeover
Dry contact switching 5 A output current per relay Up to 230 V AC switching voltage per relay Switching operation counter: two input words (switching operations...
VAT-exclusive price: 5.431,50 |
VAT-inclusive price: 6.517,80 |
- Dry contact switching
- 5 A output current per relay
- Up to 230 V AC switching voltage per relay
- Switching operation counter: two input words (switching operations *1,000)
- Transient filter for protection against high-frequency relay switching (10 Hz)
- A blue LED indicates the module's operating status
- Green LEDs (one for each output) indicate the output status

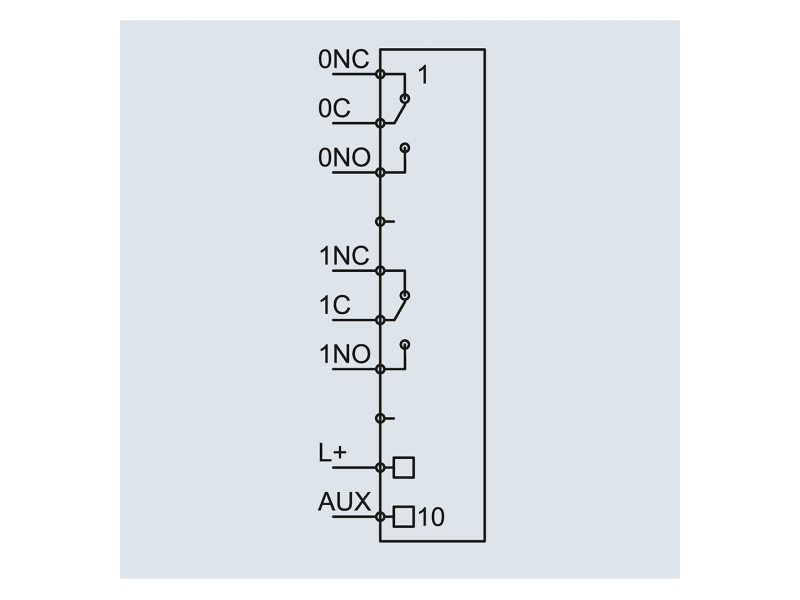

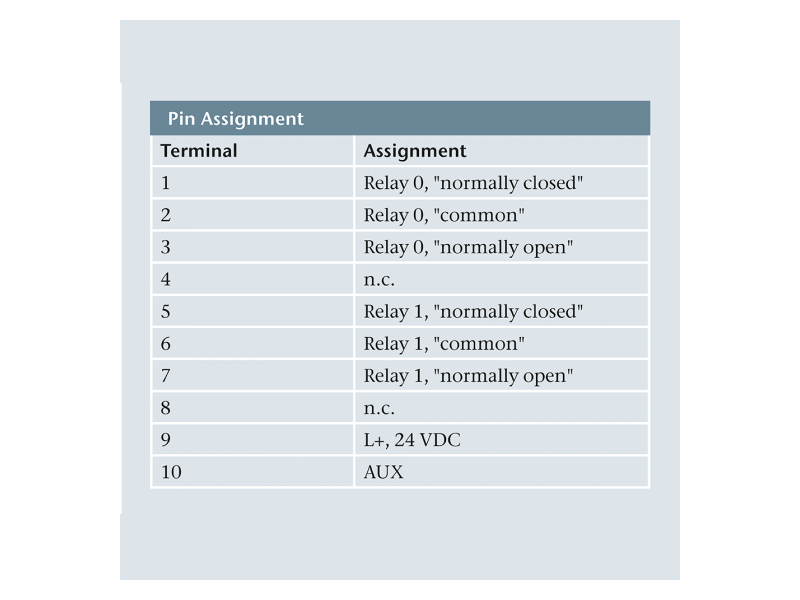

- Two changeover relays
| General information | ||
|---|---|---|
| Order number | 600-222-0AB01 | |
| Article name | DO 2x relays, 5 A, AC 230 V, changeover | |
| Scope of delivery | DO 2x relays, 5 A, AC 230 V, changeover | |
| Dimensions (DxWxH) | 110 x 14 x 73 mm | |
| Weight | Approx. 80 g | |
| Number of outputs | 4 (two changeover relays) | |
| Electrical isolation | ||
| from the backplane bus | Yes | |
| Between the channels | Yes | |
| Supply voltage UP, US | ||
| Rated value | 24 V DC | |
| Ripple USS | max. 3.6 V | |
| Permissible range (with ripple) | 20 … 30 V | |
| Voltage for t < 10 ms | 50 V | |
| Current draw | ||
| External | Max. 30 mA | |
| Internal | Max. 30 mA | |
| Relays | ||
| Number | 2 | |
| Max. continuous current / max. inrush current | 5 A/10 A | |
| Rated voltage / max. switching voltage | 250 V AC/400 V AC | |
| Max. switching power for utilization category AC-1 | 1500 VA | |
| Max. switching power AC15 (230 V AC) | 300 VA | |
| Single-phase motor load, AC3 – running (230 V AC) | 0.185 kW | |
| Max. switching current for utilization category DC-1: 30/110/220 V | 6/0.2/0.12 A | |
| Min. switching capacity | 500 mW (12 V/10 mA) | |
| Mechanical life | 10 * 106 switching operations | |
| Electrical life for utilization category AC-1 | 60000 switching operations | |
| Dielectric strength, coil to contact | 6 kV (8 mm) | |
| Dielectric strength across open contacts | 1000 V AC | |
| Max. switching frequency (internal protection) | 10 Hz | |
| Hot-swap capable | Yes | |
| Ambient conditions | ||
| Ambient temperature | 0 °C … +60 °C | |
| Transport and storage temperature | -20 °C … +80 °C | |
| Relative air humidity | 95 % r H without condensation | |
| Protection rating | IP 20 | |
| Certifications | CE, UL | |
| UL | ||
| Surrounding Air Temperature | 0 °C … +60°C | |
| Pollution degree | 2 | |
| CE | ||
| Noise immunity | DIN EN 61000-6-2 “EMC Immunity” | |
| Interference emission | DIN EN 61000-6-4 “EMC Emission” | |
| Vibration and shock resistance | DIN EN 60068-2-8:2008 “Vibration”, DIN EN 60068-27:2010 “Shock“ | |
| RoHS | Yes | |
| REACH | Yes | |
