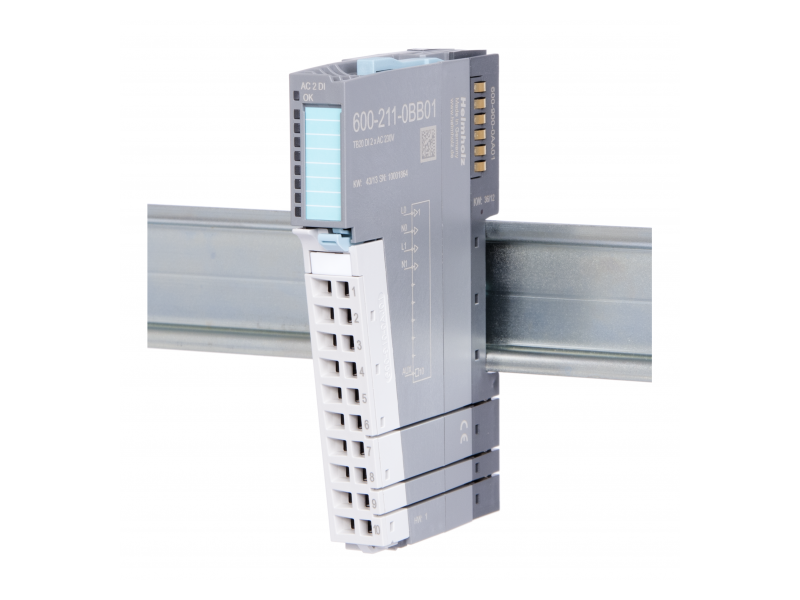

Helmholz Digital input module – DI 2 x AC 230 V, per channel N, Typ 1
110–230 V AC input voltage Each channel has its own individual neutral conductor terminal A blue LED indicates the module's operating status Green LEDs...
VAT-exclusive price: 4.267,61 |
VAT-inclusive price: 5.121,13 |
- 110–230 V AC input voltage
- Each channel has its own individual neutral conductor terminal
- A blue LED indicates the module's operating status
- Green LEDs (one for each input) indicate the input status
- 2 inputs, electrically isolated from the backplane bus
| General information | ||
|---|---|---|
| Order number | 600-211-0BB01 | |
| Article name | DI 2x AC 230 V, per channel N, type 1 | |
| Scope of delivery | DI 2x AC 230 V, per channel N, type 1 | |
| Dimensions (DxWxH) | 110 x 14 x 73 mm | |
| Weight | Approx. 70 g | |
| Number of inputs | 2 | |
| Electrical isolation | ||
| from the backplane bus | Yes | |
| Between the channels | Yes | |
| Current draw | ||
| External | Max. 0 mA | |
| Internal | Max. 22 mA | |
| Power dissipation | Max. 3.8 W | |
| Input characteristic curve | Type 1, EN 61131-2 | |
| Input frequency | 50 Hz / 60 Hz | |
| Input voltage | ||
| For signal "0” | 0 V … 40 V | |
| For signal "1” | 79 V … 253 V | |
| Hot-swap capable | Yes | |
| Ambient conditions | ||
| Ambient temperature | 0 °C … +60 °C | |
| Transport and storage temperature | -20 °C … +80 °C | |
| Relative air humidity | 95 % r H without condensation | |
| Protection rating | IP 20 | |
| Certifications | CE, UL | |
| UL | ||
| Surrounding Air Temperature | 0 °C … +60°C | |
| Pollution degree | 2 | |
| CE | ||
| Noise immunity | DIN EN 61000-6-2 “EMC Immunity” | |
| Interference emission | DIN EN 61000-6-4 “EMC Emission” | |
| Vibration and shock resistance | DIN EN 60068-2-8:2008 “Vibration”, DIN EN 60068-27:2010 “Shock“ | |
| RoHS | Yes | |
| REACH | Yes | |
