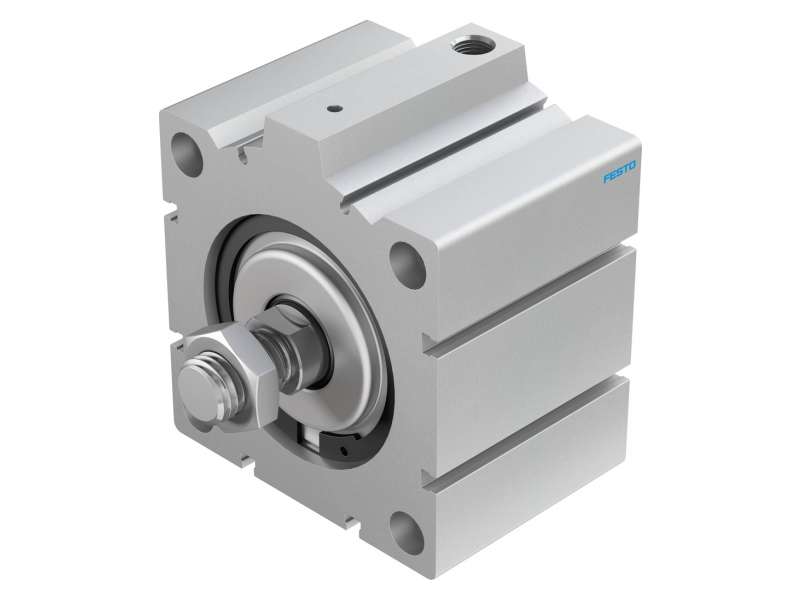

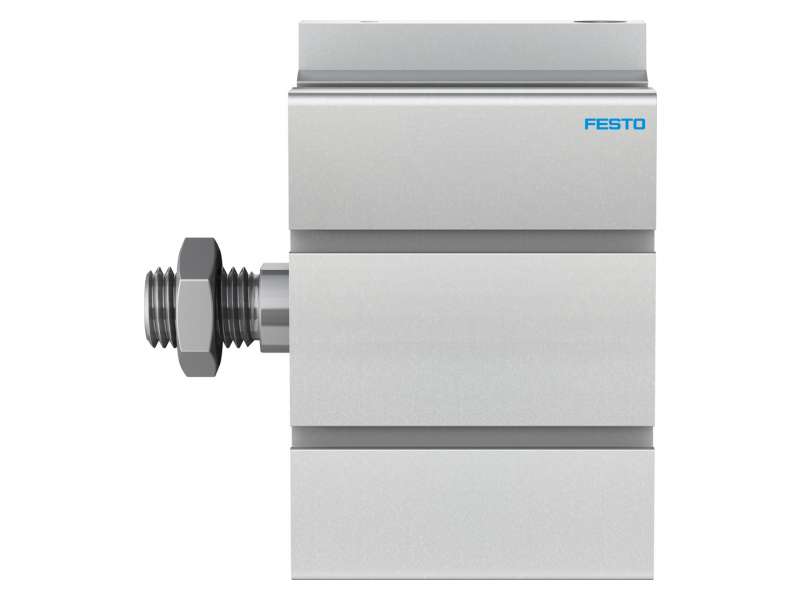

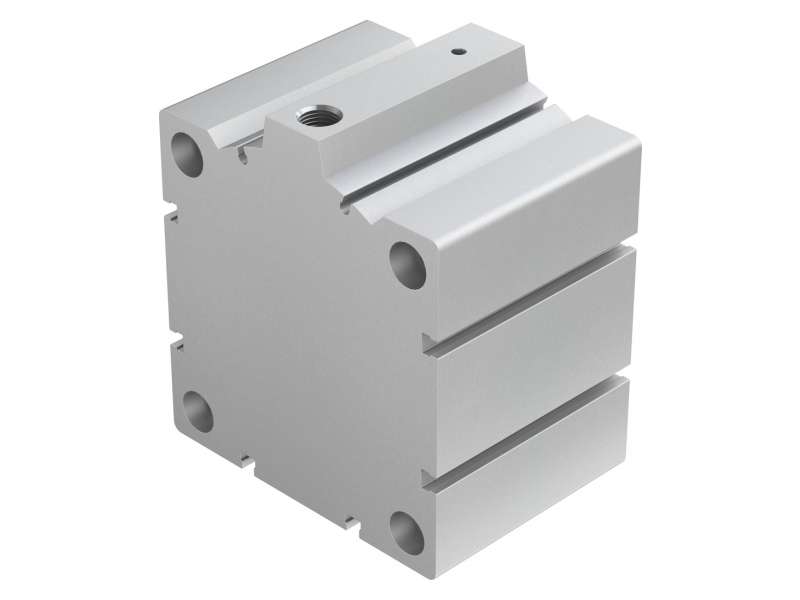

Festo Short-stroke cylinder AEVC-100-25-A-P-A ; 188329
Fast acting cylinder with outstanding tensile force ratio and hole pattern for fastening to VDMA 24562. AEVC-100-25-A-P-A Part no. 188329 Very short overall length...
Price on request
Fast acting cylinder with outstanding tensile force ratio and hole pattern for fastening to VDMA 24562.
- Very short overall length
- High forces in a compact size
- Piston rod with internal or external thread
- Optimized fitting space and height
- Mounting hole pattern to VDMA 24562 as of Ø 32 mm
- For position sensing with proximity sensor for T-slot and for C-slot
- Stroke
- 25 mm
- Piston diameter
- 100 mm
- Spring resetting force with piston rod in retracted position
- 140 N
- Type code
- AEVC
- Based on norm
-
VDMA 24562
Hole pattern
ISO 6431 - Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
-
Single-acting
Pushing - Design
-
Piston rod
Piston - Position sensing
- For proximity sensor
- Symbol
- 00991729
- Operating pressure
- 1 bar ... 10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Ambient temperature
- -20 °C ... 80 °C
- Theoretical force at 6 bar, advancing
- 4503 N
- Moving mass
- 604 g
- Product weight
- 3220 g
- Type of mounting
-
With through-hole
With accessories
Optionally: - Pneumatic connection
- G1/4
- Note on materials
- Free of copper and PTFE
- Cover material
-
Anodized
Wrought aluminum alloy - Seals material
- TPE-U(PU)
- Housing material
-
Anodized
Wrought aluminum alloy - Piston rod material
- High-alloy steel
-
188329datasheet
-
