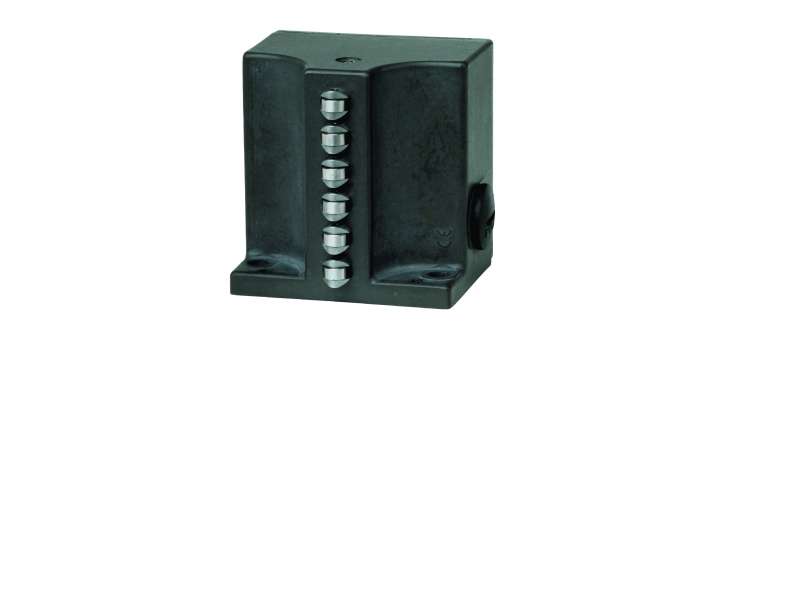

EUCHNER SN04R12-502LE060-M, Series SN... 12 mm, mechanical; 087063
euchner-sn04r12-502le060-m-series-sn...-12-mm-mechanical-087063...
Price on request
euchner-sn04r12-502le060-m-series-sn...-12-mm-mechanical-087063
Approvals
Electrical connection values
| Connection cross section | 0.34 ... 1.5 mm² |
| Display module | |
| AC/DC | 12 ... 60 ... 60 V LED |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Utilization category | |
| AC-15 | 6 A 230 V |
| AC-12 | 8 A 250 V |
| DC-13 | 6 A 24 V |
| Short circuit protection according to IEC 60269-1 | 8A gG |
| Switching current | |
| min. at DC 12V | min. 10 mA |
| thermal rated current Ith | 8 A |
Mechanical values and environment
| Approach speed | 0.01 ... 80 m/min |
| Connection type | |
| 2 x | M20 x 1.5 |
| Number NC contacts | 4 |
| Number of switching elements | 4 |
| Number of NO contacts | 4 |
| Design | upright |
| Actuating element | |
| Slide bearing | Roller plunger |
| Actuating force | min. 20 N |
| Installation orientation | any |
| Mechanical life | 30 x 10⁶ |
| Switching principle | Snap-action switching contact |
| Degree of protection | IP67 |
| Plunger spacing | 12 mm |
| Ambient temperature | -5 ... +80 °C |
| Material | |
| Housing | Die-cast aluminum, anodized |
| Contact | Silver alloy, gold flashed |
