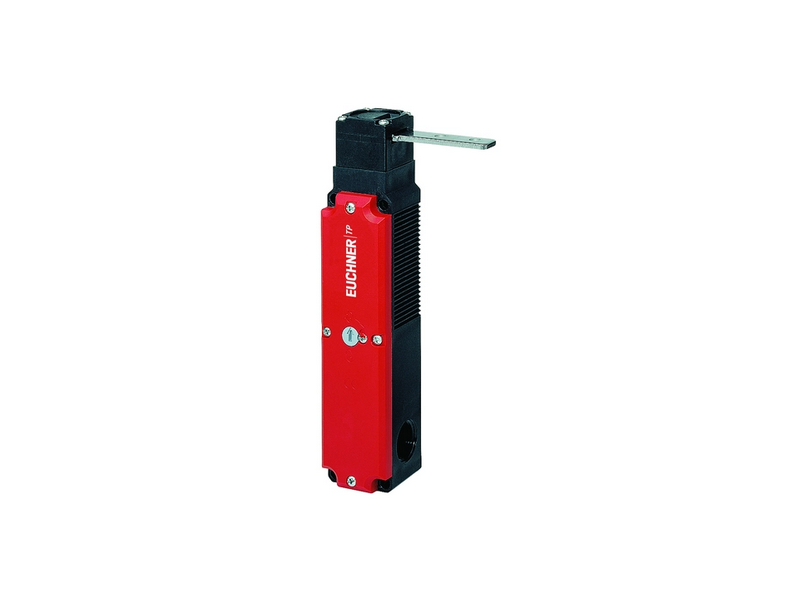

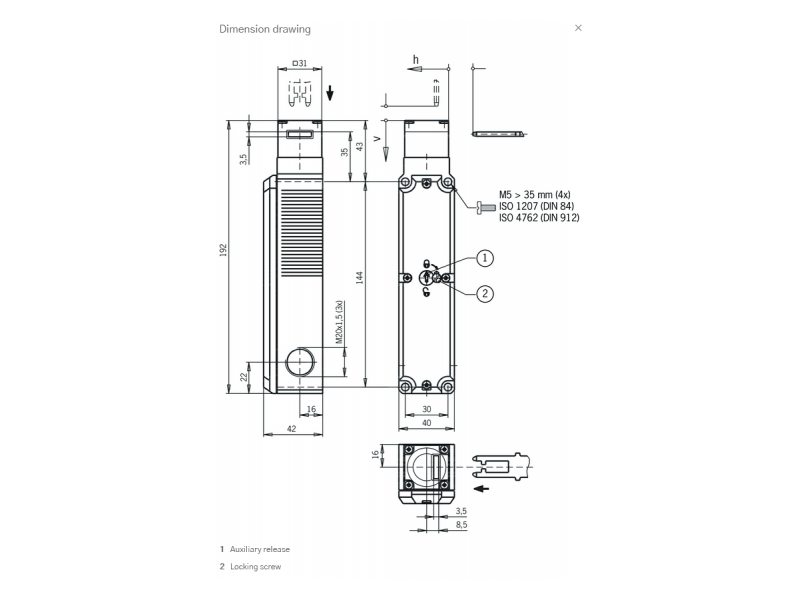

EUCHNER Safety switch TP with door monitoring contact TP3-4141A024M; 084270
Safety switch TP with door monitoring contact Auxiliary release on the front With door monitoring contact Increased horizontal overtravel Approach direction Horizontal...
Price on request
Safety switch TP with door monitoring contact
- Auxiliary release on the front
- With door monitoring contact
- Increased horizontal overtravel
Approach direction
Horizontal and vertical
Can be adjusted in 90° steps
Increased overtravel for horizontal approach direction
Solenoid operating voltage
- AC/DC 24 V +10%, -15%

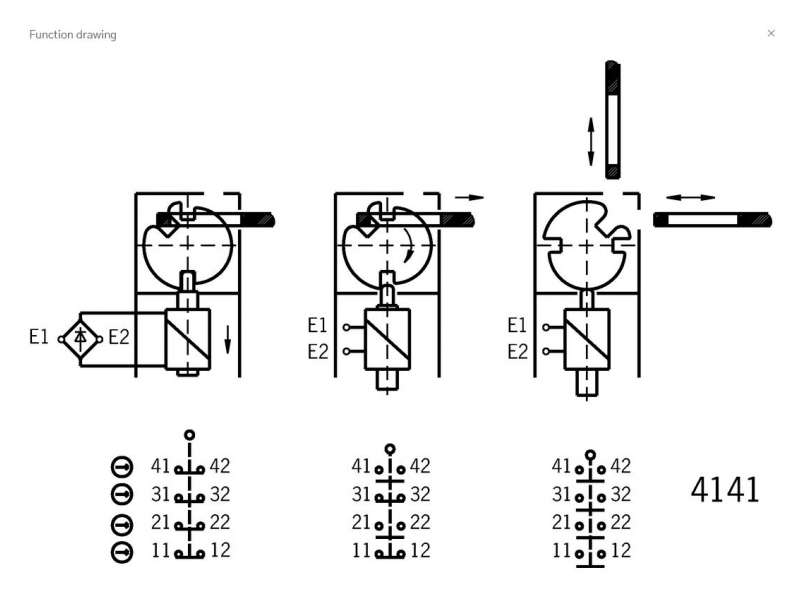

Guard locking type
|
TP3 |
Closed-circuit current principle, guard locking by spring force. Release by applying voltage to the guard locking solenoid. |

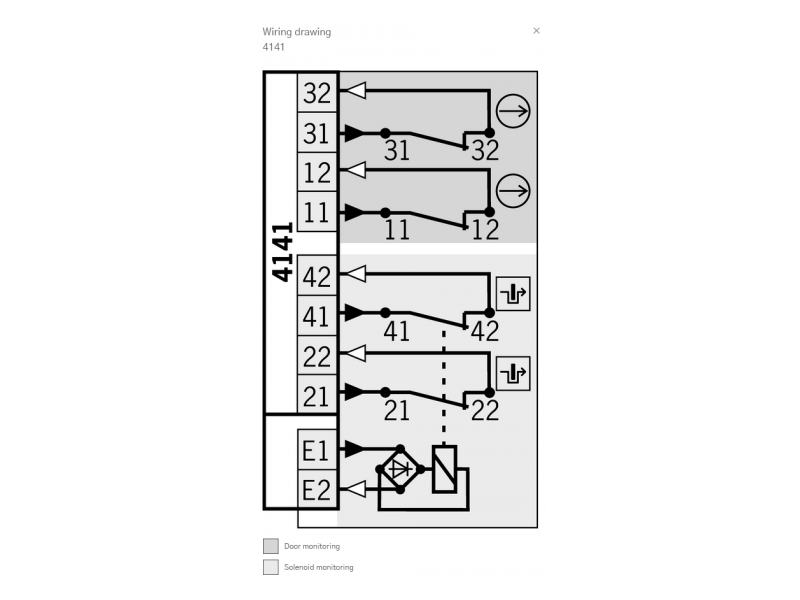

Switching element
|
4141 |
Slow-action switching contact 2 NC + 2 NC (door monitoring contact) |
Auxiliary release
This is used for releasing the guard locking with the aid of a tool. To protect against tampering, the auxiliary release is sealed with sealing lacquer.Electrical connection ratings
| Connection cross-section | 0.34 ... 1.5 mm² |
| Rated insulation voltage Ui | 250 V |
| Power consumption | 8 W |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Short circuit protection according to IEC 60269-1 | 4A gG |
| Solenoid duty cycle | 100 % |
| Solenoid operating voltage | |
| AC/DC | 24 V -15% ... +10% |
| Switching current | |
| min. at 24 V | 1 mA |
| Switching voltage | |
| min. at 10 mA | 12 V |
| Utilization category | |
| DC-13 | 4A 24V |
| AC-15 | 4A 230V |
| rated thermal current Ith | 4 A |
Mechanical values and environment
| Ambient temperature | -20 ... +55 °C |
| Approach speed | max. 20 m/min |
| Number of door position positively driven contacts | 2 |
| Number of guard lock monitoring positively driven contacts | 2 |
| Connection | |
| 3 x | M20 x 1.5 |
| Degree of protection | IP67 |
| Extraction force | 20 N |
| Guard locking principle | Closed-circuit current principle |
| Installation orientation | any |
| Locking force Fmax | 1300 N |
| Material | |
| Contact | Silver alloy, gold flashed |
| Housing | Reinforced thermoplastic |
| Actuation frequency | max. 1200 1/h |
| Actuating force | 10 N |
| Mechanical life | 1 x 10⁶ |
| Retention force | 10 N |
| Switching principle | Slow-action switching contact |
| Locking force FZh | 1000 N |
Reliability values according to EN ISO 13849-1
| Control of guard locking | |
| Category | Depending on external control of guard locking |
| Performance Level | Depending on external control of guard locking |
| PFHD | Depending on external control of guard locking |
| Monitoring of guard locking and the guard position | |
| B10d | 3 x 10⁶ |
In combination with actuator ACTUATOR-P-GNT
| Horizontal overtravel | 7 mm |
In combination with actuator ACTUATOR-P-GT
| Horizontal overtravel | 2 mm |
| Vertical overtravel | 1.5 mm |
