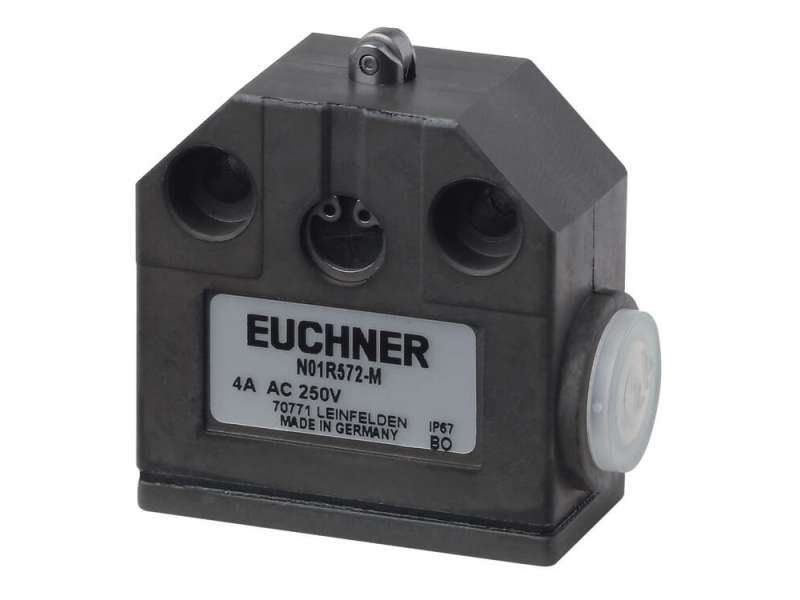

EUCHNER Precision Single Limit Switch N01R550SEM5-M ; 091257
Precision single limit switch N01, roller plunger, plug connector M12 Plunger material stainless steel For operating voltage 230 V...
Price on request
Precision single limit switch N01, roller plunger, plug connector M12
- Plunger material stainless steel
- For operating voltage 230 V
Approvals
Mechanical values and environment
| Housing material | Anodized die-cast alloy |
| Weight | |
| Net | 0,07 kg |
| Ambient temperature | -5 ... 80 °C |
| Degree of protection | IP67 |
| Mechanical life | 10 x 106 |
| Contact material | Silver alloy, gold flashed |

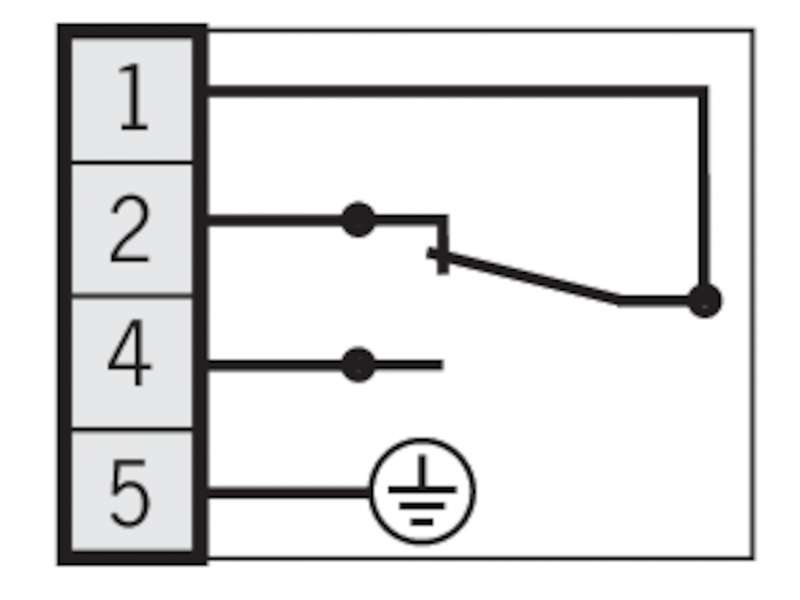

| Switching principle | Changeover contact with snap-action function |
| Installation orientation | Any |
| Number of door position NC contacts | 1 Changeover contact |
| Number of door position NO contacts | 1 |
| Connection | |

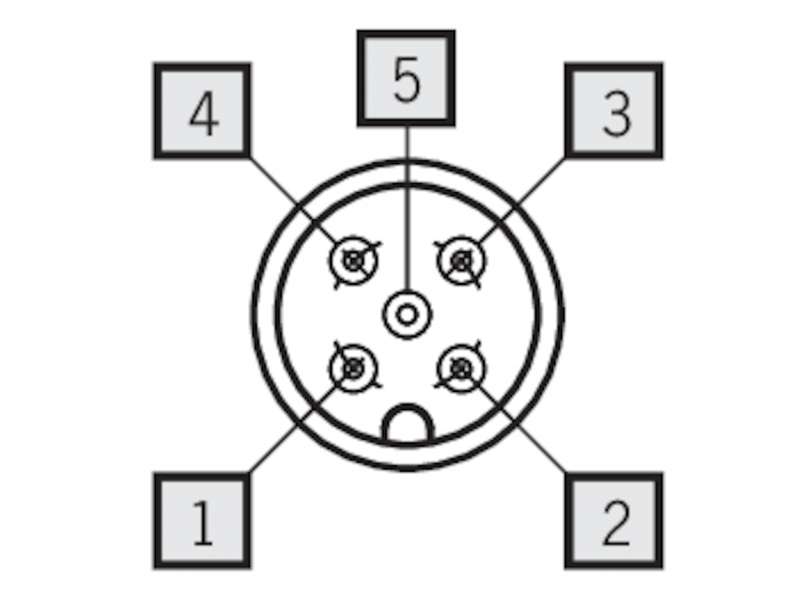

| 1 x | Plug connector SEM5 B-coded |
| Approach speed | 0,01 ... 50 m/min |
| Actuating element | |
| Plain bearing metal | Roller plunger |
| Actuating force | 15 ... 20 N |
Electrical connection ratings
| Thermal rated current Ith | 4 A |
| Utilization category according to EN 60947-5-1 | |
| AC-15 | 2A 230V |
| DC-13 | 2A 24V |
| Short circuit protection according to IEC 60269-1 | |
| (Fuse) | 4A gG |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 1,5 kV |
| Switching current | |
| Min. at DC 24V | 10 mA |
-
Limit Switches Instructions
