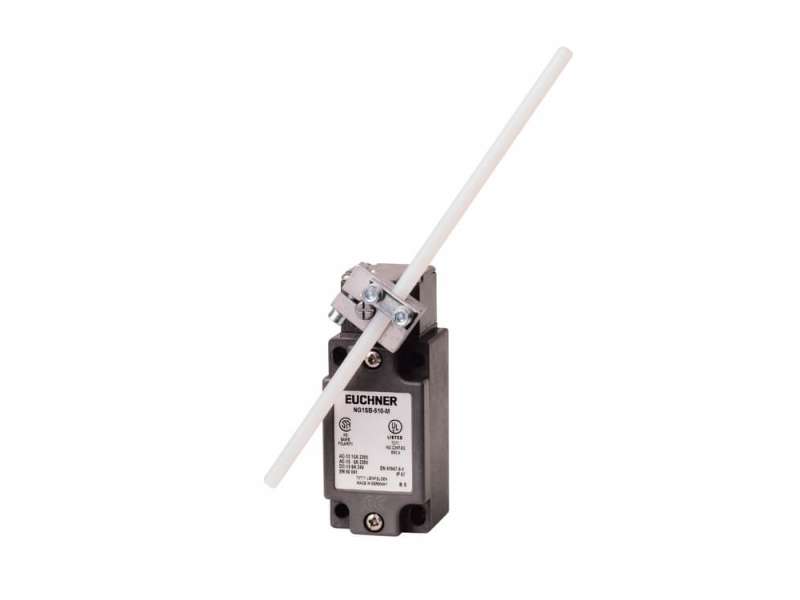

EUCHNER Position switch NG.SB, plastic rod ; 088609

NG1SB-510-M Pivoted lever arm SB (plastic rod) Cable entry M20 x 1.5...

Brand: EUCHNER
Product Code: 088609
Availability: Check availability
Price on request

  NG1SB-510-M


  • Pivoted lever arm SB (plastic rod)
         Cable entry M20 x 1.5

Approvals

Zulassung EACZulassung DNV GLZulassung c_UL_us LISTED

Mechanical values and environment

Housing material
Housing Anodized die-cast alloy
Weight
Net 0,3 kg
Ambient temperature -25 ... 80 °C
Degree of protection IP67
Mechanical life 30 x 106
Contact material Silver alloy, gold flashed
Switching principle Snap-action switching contact
Installation orientation Any

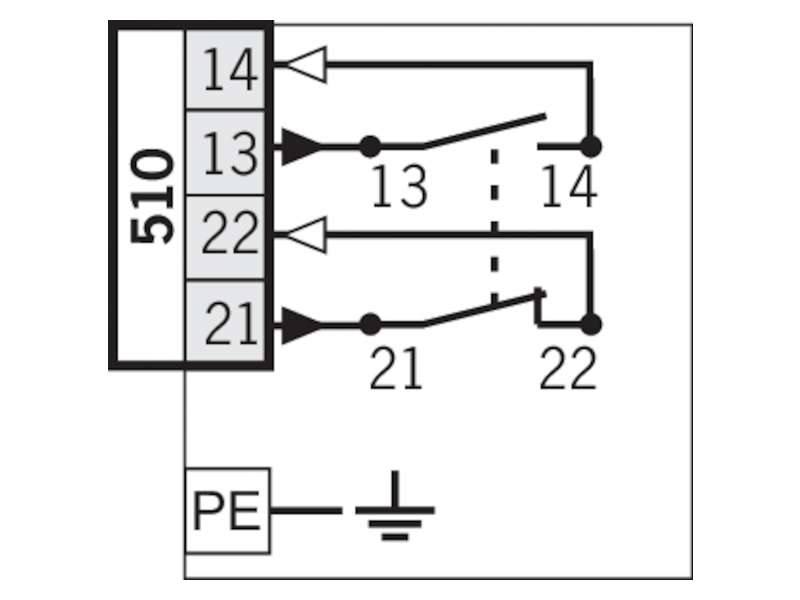

Number of door position NC contacts 1
Number of door position NO contacts 1
Connection
1 x M20 x 1.5
Approach speed 0,5 ... 60 m/min
Actuating element Pivoted lever arm
Actuating force min.15 N

Electrical connection ratings

Thermal rated current Ith 6 A
Utilization category according to EN 60947-5-1
AC-15 6A 230V
DC-13 6A 24V
AC-12 10A 230V
Short circuit protection according to IEC 60269-1 6A gG
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2,5 kV
Switching current
Min. at DC 24V 10 mA
Connection cross-section 0,34 ... 1,5 mm²

  • Datasheet and catalogue

    Datasheet and catalogue

  • User manual-Position

    User manual-Position
