EUCHNER Non-contact safety switch CET-AR-..., RC18, with escape release ; 110943

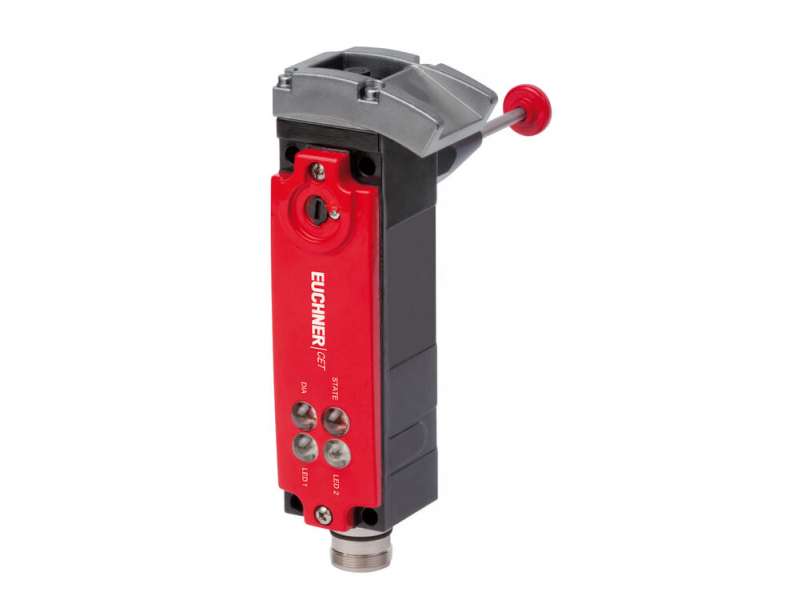

EUCHNER Non-contact safety switch CET-AR-..., RC18, with escape release ; 110943 - slika 1

EUCHNER Non-contact safety switch CET-AR-..., RC18, with escape release ; 110943

Non-contact safety switch CET-AR-..., RC18, with escape release Safety switch with guard locking and integrated evaluation electronics Locking force up to 6500 N...

Brand: EUCHNER
Product Code: 110943
Availability: Check availability

Price on request

Non-contact safety switch CET-AR-..., RC18, with escape release

Safety switch with guard locking and integrated evaluation electronics
Locking force up to 6500 N
Up to 20 switches in series
Short circuit monitoring
2 safety outputs (semiconductor outputs)
Up to category 4/PL e according to EN ISO 13849-1
With plug connector M23 (RC18)
Unicode
Teach-in input
Escape release, 105 mm long
Approach direction A (default setting on delivery)

Approvals

Mechanical values and environment

Housing material
Safety switch housing	Die-cast aluminum
Slide	Stainless steel
Weight
Net	1 kg
Ambient temperature
At U_B = 24V DC	-20 ... 55 °C
Degree of protection	IP65/IP67
Mechanical life	1 x 10⁶
Installation orientation	Any
Degree of freedom
Y	±5 mm
X	±5 mm
Z	±4 mm
Ready delay	10 s
Switching frequency	max.0,5 Hz
Connection	1 plug connector M23, 19-pin, RC18
Approach speed	max.20 m/min
Guard locking principle	Closed-circuit current principle
Locking force F_max	6500 N
Locking force F_Zh	5000 N

Electrical connection ratings

Operating voltage DC
LED1 , LED2	24 V DC -15% ... 10%
U_B	24 V DC -15% ... 15% Reverse polarity protected, regulated, residual ripple < 5%, PELV
Current consumption
I_B	80 mA
I_CM	480 mA
Utilization category according to EN 60947-5-2
DC-13	24V 200mA
Solenoid operating voltage DC
U_CM	24 V DC -15% ... +10% Reverse polarity protected, regulated, residual ripple < 5%, PELV
Fusing
External (operating voltage U_B)	0,25 ... 8 A
External (operating voltage U_CM)	0,5 ... 8 A
Power consumption
Solenoid	max.12 W
EMC protection requirements	In acc. with EN IEC 60947-5-3
Solenoid duty cycle	100 %
Degree of contamination (external, according to EN 60947-1)	3
Safety class
EN IEC 61140	III
Switching load
According to UL	24V DC, class 2
	Safety outputs OA/OB
Type of output	Semiconductor outputs, p-switching, short circuit-proof
Output voltage
High U(OA,OB)	UB-1,5V ... UB V DC
Low U(OA,OB)	0 ... 1 V DC
Output current
per safety output	1 ... 200 mA
Off-state current I_r	max.0,25 mA
Risk time according to EN 60947-5-3
Single device	max.400 ms
Delay per device	5 ms
Switch-on time
Safety outputs	400 ms
Discrepancy time
Both safety outputs	max.10 ms
	Teach-in input J
Input voltage
High	15 ... 27,6 V DC Teach-in input J
Low	0 ... 1 V DC Teach-in input J
	Monitoring output OUT
Type of output	Semiconductor output, p-switching, short circuit-proof
Output voltage
OUT	0,8xUB ... UB V DC
Output current
OUT	1 ... 50 mA

Work area

Repeat accuracy R
According to EN 60947-5-2	10 %

Other

C number
C2312	Extended escape release
For the approval according to UL the following applies	Operation only with UL class 2 power supply, or equivalent measures see operating instructions

Reliability values according to EN ISO 13849-1

	Monitoring of guard locking and the safety guard position
Category
Head upward	3
Head downward or horizontal	4
Performance Level	PL e
PFH_D
Head downward or horizontal	3.1 x 10^-9
Head upward	4.29 x 10^-8
	Control of the guard locking
Category	Depending on external control of guard locking
Performance Level	Depending on external control of guard locking
PFH_D	Depending on external control of guard locking
Mission time	20 y
