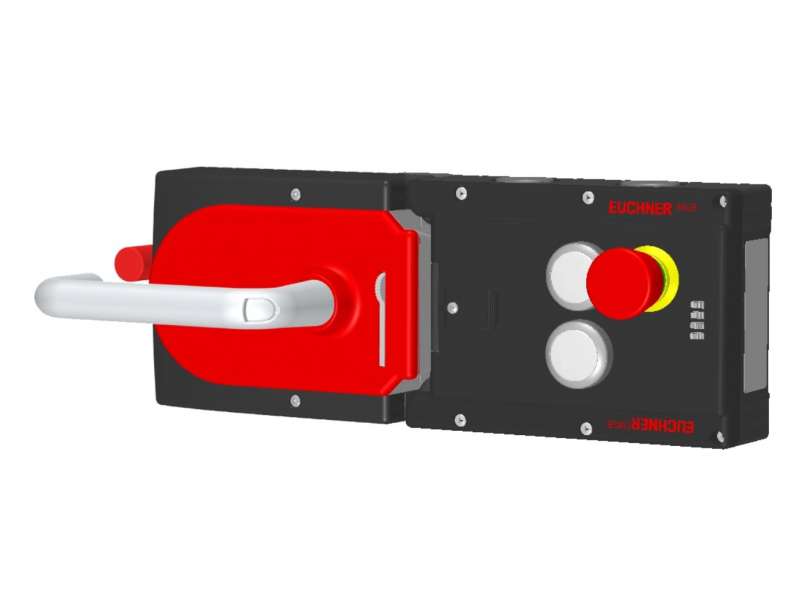

EUCHNER Locking set MGB-L2HE-ARA-L-121246; 121246

EUCHNER Locking set MGB-L2HE-ARA-L-121246; 121246

Locking set MGB-L2HE-ARA... (guard locking by solenoid force) with 2 pushbuttons, emergency stop Guard locking with guard lock monitoring Can be connected in series...

Brand: EUCHNER
Product Code: 121246
Availability: Check availability
Price on request

Locking set MGB-L2HE-ARA... (guard locking by solenoid force) with 2 pushbuttons, emergency stop

  • Guard locking with guard lock monitoring
  • Can be connected in series with other AR devices (e.g. CES-AR and CET-AR)
  • Emergency stop according to ISO 13850
  • 2 pushbuttons (illuminated)
  • With lens set, 6 pcs.
  • With cable entry
  • With escape release
  • Unicode


Approvals

c_UL_us_E155795_3/9EAC_RU C-DE.HX37.B.14157/20FCC_2AJ58-09_

Escape release MGB-E-A-100465 (Order no. 100465)

Escape release MGB-E-A-100465 (Order no. 100465)

Mechanical values and environment

Installation orientation any
Mechanical life 1 x 10⁶
Ambient temperature -30 ... +55 °C
Material
Housing Die-cast zinc/stainless steel, powder-coated

Miscellaneous

Product version number V2.0.0

Handle modules MGB-H-AA1A1-L-106619 (Order no. 106619)

Handle modules MGB-H-AA1A1-L-106619 (Order no. 106619)

Mechanical values and environment

Installation orientation Door hinge DIN left
Degree of protection IP65
Ambient temperature -20 ... +55 °C
Material
Housing Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel

Miscellaneous

Product version number V3.0.0

Locking modules MGB-L2-ARA-AM3A1-M-L-121244 (Order no. 121244)

Locking modules MGB-L2-ARA-AM3A1-M-L-121244 (Order no. 121244)

Operating and display elements

Occupancy diagram L1
Item Extras Color Designation1 Number LED Note slide-in label Slide-in label Version Switching element
1 with monitoring contact             Emergency stop 2 PD + 1 NO
2               Illuminated pushbutton 1NO
3               Illuminated pushbutton 1NO

Electrical connection values

Similar products:

EUCHNER Locking module MGB-L2-ARA-BL3A1-M-L-121028; 121028

EUCHNER Locking module MGB-L2-ARA-BL3A1-M-L-121028; 121028

Locking module MGB-L2-ARA... (guard locking by solenoid force) with 1 pushbutton, emergency stop, incl. label carrier, guard lock monitoring switched off Guard locking
-
Need to order

(Out of stock)

Price on request

EUCHNER Locking module MGB-L1-ARA-AM3A1-M-L-121241; 121241

EUCHNER Locking module MGB-L1-ARA-AM3A1-M-L-121241; 121241

Locking module MGB-L1-ARA..., (guard locking by spring force) with 2 pushbuttons, emergency stop Guard locking with guard lock monitoring Can be connected in series
-
Need to order

(Out of stock)

Price on request

EUCHNER Locking module MGB-L1-ARA-AM3A1-M-L-121261; 121261

EUCHNER Locking module MGB-L1-ARA-AM3A1-M-L-121261; 121261

Locking module MGB-L1-ARA... (guard locking by spring force) with 2 pushbuttons, emergency stop, incl. label carrier Guard locking with guard lock monitoring Can
-
Need to order

(Out of stock)

Price on request

EUCHNER Locking module MGB-L1-ARA-AN6A1-M-L-160588; 160588

EUCHNER Locking module MGB-L1-ARA-AN6A1-M-L-160588; 160588

Locking module MGB-L1-ARA..., (guard locking by spring force) with 1 pushbutton, emergency stop, selector switch Guard locking with guard lock monitoring Can be
-
Need to order

(Out of stock)

Price on request

EUCHNER Locking module MGB-L1-ARA-AP7A1-M-L-121406; 121406

EUCHNER Locking module MGB-L1-ARA-AP7A1-M-L-121406; 121406

Locking module MGB-L1-ARA..., (guard locking by spring force) with 2 pushbutton, emergency stop, selector switch Guard locking with guard lock monitoring Can be
-
Need to order

(Out of stock)

Price on request

EUCHNER Locking module MGB-L1-ARA-AJ1A1-M-117230; 117230

EUCHNER Locking module MGB-L1-ARA-AJ1A1-M-117230; 117230

Locking module MGB-L1-ARA..., (guard locking by spring force) with 3 pushbuttons, emergency stop Guard locking with guard lock monitoring Can be connected in series
-
Need to order

(Out of stock)

Price on request

Site map


0.12

ELECTRO PNEUMATIC SOLUTIONS DOO

  • Jugoslovenska 2/13A, Čukarica, Beograd
  • Opening Times: Monday - Friday 8am-5pm
  • Telephone:
  • 011 257 1922
  • +381 64 659 66 55
  • +381 62 800 70 43
  • email: office@ep-solutions.rs

linkedin youtube instagram twitter facebook

Uvek smo u potrazi za pravim ljudima.
Otvorene pozicije

© 2026  ELECTRO PNEUMATIC SOLUTIONS DOO
1
2
3
Compare products Remove all products
Connection cross section
(rigid/flexible) 0.13 ... 1.5 mm²
(rigid/flexible) with cable end sleeve according to DIN 46 228/1 0.25 ... 1.5 mm²
(rigid/flexible) with cable end sleeve with collar according to DIN 46 228/1 0.25 ... 0.75 mm²
Rated insulation voltage Ui 30 V
Rated impulse withstand voltage Uimp 1.5 kV
Discrepancy time
between FO1A and FO1B max. 10 ms
Utilization category
DC-13 24 V 200 mA
Risk time according to EN 60947-5-3 max. 350 ms
Risk time according to EN 60947-5-3, extension for each additional device max. 5 ms
Safety class III
Transponder coding Unicode
Degree of contamination (external, according to EN 60947-1) 3
  Solenoid control input IMP1, IMP2, IMM
Test pulse duration max. 5 ms
Test pulse interval min. 100 ms
  Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage UA V
Switching current 1 ... 10 mA
LED power supply 24 V DC
  Emergency stop
Breaking capacity max. 0.25 W
Switching voltage 5 ... 24 V
Switching current 1 ... 100 mA
LED power supply 24 V DC
  Monitoring outputs OD, OT, OL, OI
Output type Semiconductor outputs, p-switching, short circuit-proof
Output voltage UA-2V ... UA V DC
Output current max. 50 mA
  Safety outputs FO1A, FO1B
Output type Semiconductor outputs, p-switching, short circuit-proof
Output voltage
UFO1A /UFO1B LOW 0 ... 1 V DC
UFO1A /UFO1B HIGH UB-2V ... UB V DC
Output current
per safety output FO1A / FO1B 1 ... 200 mA
Test pulse duration max. 1 ms
Test pulse interval min. 100 ms
  Power supply UA
Operating voltage DC
UA 24 V DC -15% ... +10%
Current consumption
IUA max. 375 mA
