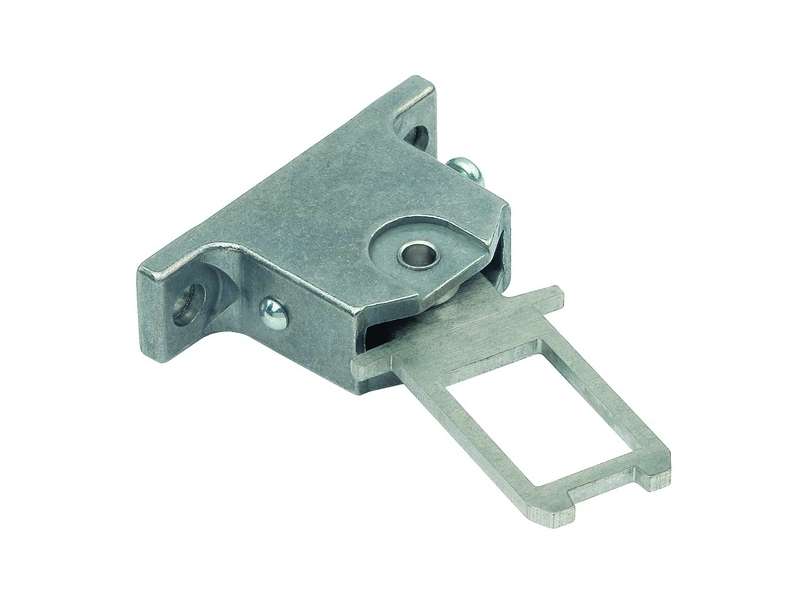

EUCHNER Hinged actuator S, left/right, for safety switch SGA/SGP/STA/STP/STM, RADIUSBETAETIGER-S-LR-SN ; 096838
RADIUSBETAETIGER-S-LR-SN ; 096838...
Price on request
RADIUSBETAETIGER-S-LR-SN ; 096838
Notice
S-...-SN actuators must not be used in conjunction with insertion funnels. S-...-LN actuators must be used for insertion funnels.
Hinged actuators
For door radii less than 1000 mm a hinged actuator should be used. The spring action movement of the actuator prevents damage due to the actuator jamming in the actuating head. Depending on the movement of the guard, the actuator must be selected for left/right or top/bottom.
Approvals
Mechanical values and environment
| Overtravel | max. 5 mm |
| Door radius | min. 200 mm |
| Material | |
| Screw | Stainless steel |
| Actuator | Stainless steel |
Miscellaneous
| Usability of insertion funnel | no |
Hinged actuator S, left/right, for safety switch SGA/SGP/ STA/STP/STM
- Actuator made of stainless steel
- Two safety screws included
- For doors hinged on the right and left
