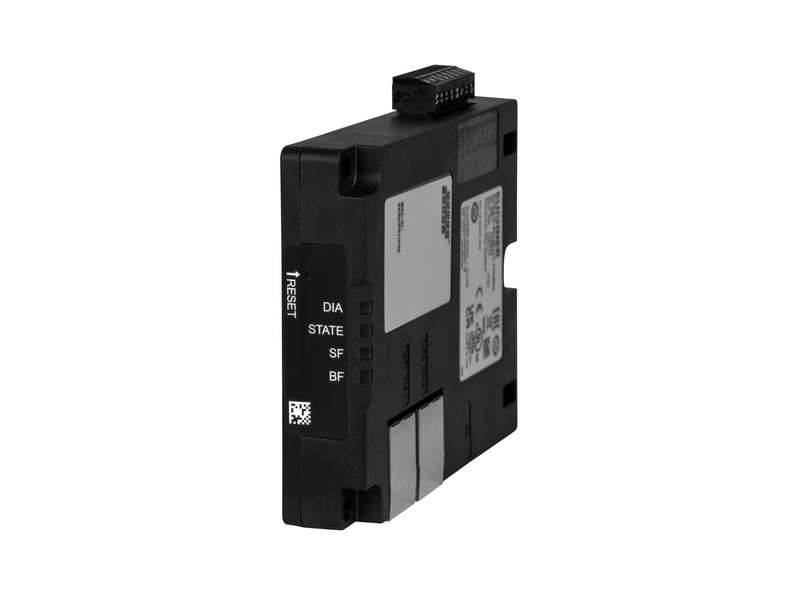

EUCHNER Evaluation unit EKS2-E-PN-M-H1-170904
EUCHNER Evaluation unit EKS2-E-PN-M-H1-170904...
Evaluation unit EKS2
- Evaluation unit of the Electronic-Key-System EKS2
- Suitable for selection of operation mode with safety level PL e
- 1-of-n safety outputs
- PROFINET connection with integrated RT switch
- Connection for read unit
- Mounting in panel or control cabinet
- LED indicator
PROFINET for easy integration into the network
PROFINET is used to send the data to the control system. With the integrated PROFINET RT switch, the EKS2 evaluation unit can be easily integrated into the existing control environment.
1-of-n safety outputs for the highest safety level PL e
The 1-of-n safety outputs are directly connected to a safe control system and evaluated there. This allows for the selection of a safe operating mode on the highest safety level, PL e.The device has dedicated short circuit monitoring.

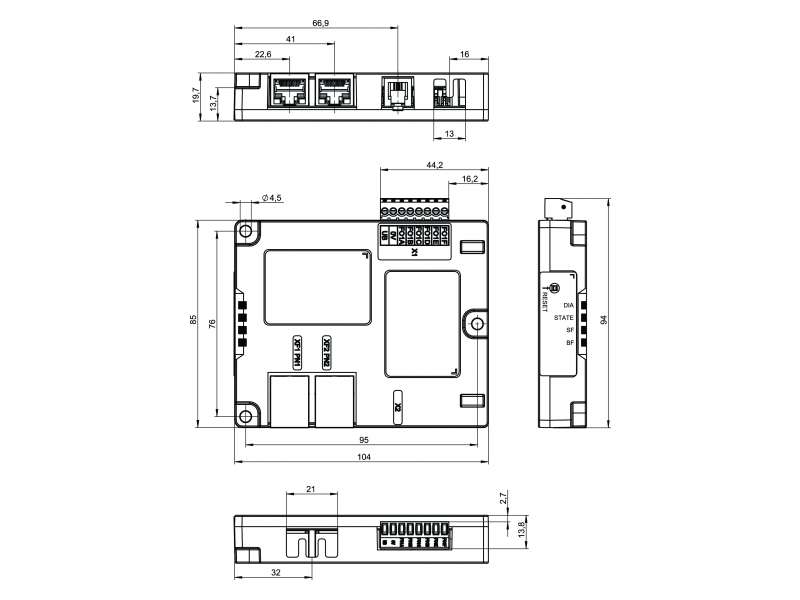

Mounting
The evaluation unit can be installed either in the panel or in the control cabinet. An optional mounting rail adapter is available for mounting in the control cabinet.
Accessories included
- Plug-in screw terminals
Accessories required (not included)
- Assembly screws
- Connecting cable for connecting the read unit to the evaluation unit

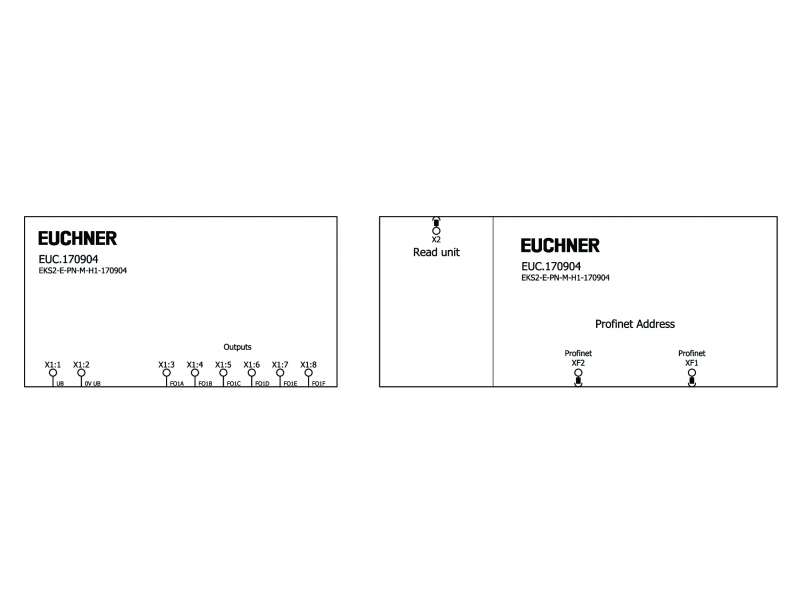

Electrical connection values
| Connection cross section | |
| X1 (screw terminal, 8-pole) | 0.05 ... 1.5 mm² |
| Operating voltage DC | |
| UB | 24 V DC -15% ... +20% regulated, residual ripple<5%, PELV |
| EMC protection requirements | EN 61000-6-2, EN 61000-6-4 |
| Current consumption | |
| without load | max. 150 mA |
| Safety outputs FO1X | |
| Output type | Semiconductor outputs, p-switching, short circuit-proof |
| Output voltage | |
| LOW U(FO1X) | 0 ... 1 V DC |
| HIGH U(FO1X) | UB-1.5V ... UB V DC |
| Utilization category | |
| DC-13 | DC-13 24 V 50 mA |
| Off-state current Ir | max. 0.25 mA |
| Switching current | |
| per safety output | 1 ... 50 mA |
Mechanical values and environment
| Connection type | |
| according to IEC 61076-3-117, variant 14, screened, Profinet I/O cable, at least cat. 5e | RJ45 |
| according to IEC 61076-3-117, variant 14, screened, Profinet I/O cable, at least cat. 5e | RJ45 |
| Cable length | max. 100 m |
| Mounting type | Screws |
| Degree of protection | IP20 |
| Ambient temperature | -20 ... +55 °C |
| Material | |
| Housing | PA66 GF40 |
| Read unit interface | |
| Connection type | Male plug |
| Cable length | max. 50 m |
| Number of pins | 5 |
| Insertion cycles | 10 |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| PL | Maximum SIL | PFHD | Category | Mission time | |
|---|---|---|---|---|---|
| Safe switching and monitoring of the selected operating mode | PL e | 3 | 6.44x10-9 | 3 | 20 y |
Miscellaneous
| Component | Operation only with UL Class 2 power supply or equivalent measures |
Interface
| Bus data protocol | PROFINET |
| Data rate | 10/100 Mbit/s |
| Date interface | Ethernet (IEEE 802.3) |
-
